Concrete Pump Trailer For Sale Sold To America

In the booming residential construction market of Texas, YG’s concrete pump trailer for sale is gaining popularity among local builders with its outstanding performance. Recently, in a large-scale housing development project in the suburbs of Houston, the excellent performance of the YG50 model fully demonstrated the value of this small concrete pump for sale. In addition, YG also provides small mixers, mixer-pump integrated machines, and mortar spraying machines for customers to choose from. Feel free to contact us anytime for more product details and exclusive quotations!【WhatsApp/WeChat/Phone】+86 13837122632

Get a Free Quote

YG50 Concrete Pump Trailer for Sale Parameters

Parameter Name	Value
Motor Power	55kw / Diesel 6102 model
Working Efficiency	30-35m³/h
Working Pressure	23mpa
Aggregate Size	0-4cm
Vertical Conveying Distance	30-150m
Horizontal Conveying Distance	50-500m
Pipe Diameter	80-125mm
Machine Weight	2200kg
Dimension	430016001800mm

Get a Free Quote

Concrete Pump Trailer for Sale Product Composition

Intelligent Control System

• Equipped with a Programmable Logic Controller (PLC) to achieve automated operation.
• Features a high/low pressure switching function, allowing adjustment of pumping pressure according to project needs.
• Uses stepless variable adjustment technology for precise control of pumping displacement.
• Comes with a fully automatic centralized lubrication system to ensure durability of moving parts.

Hydraulic System

• Adopts an open dual-pump, dual-circuit hydraulic system for stable and reliable performance.
• Key hydraulic components are sourced from top brands such as Kawasaki (Japan) and Parker (USA).
• Equipped with a forced air-cooling radiator to effectively control hydraulic oil temperature.
• The system is simple, easy to understand, and convenient for maintenance.

Pumping System

• Designed with a large-angle hopper to improve feeding efficiency.
• S-valve structure ensures smooth and steady concrete conveying.
• Wear parts such as the spectacle plate and cutting ring are made of hard alloy for excellent abrasion resistance.
• Dual-cylinder piston pumping mechanism with advanced performance and continuous operation.

Get a Free Quote

Unique Challenges of the Texas Residential Project

This project, located in the northwest of Houston, covers a total construction area of 200,000 square meters and faced several construction challenges:

• Complex terrain conditions: The project site had a height difference of 3–5 meters, requiring the equipment to have strong adaptability.
• Strict environmental regulations: Texas enforces clear standards on emissions and noise from construction equipment.
• Tight construction schedule: Due to local climate conditions, the main structure had to be completed during the dry season.

Project Adaptability of YG50 Concrete Pump Trailer for Sale

This portable mini concrete pump perfectly met the special requirements of the Texas residential project:

• Excellent terrain adaptability: With a working pressure of 23mpa, the equipment ensured smooth pumping up to 150 meters in height, easily handling terrain differences.
• Eco-friendly and energy-saving: Equipped with a diesel engine that meets Texas emission standards while maintaining low noise performance.
• High operational efficiency: A pumping capacity of 35m³/h guaranteed steady project progress.

Get a Free Quote

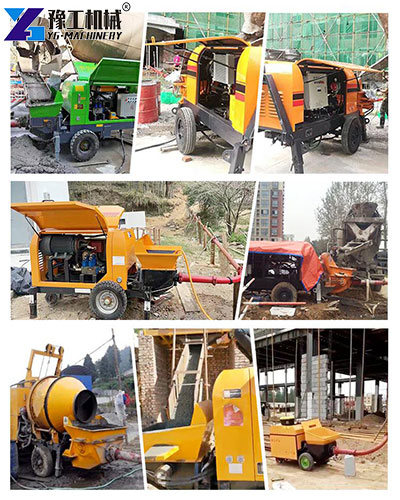

Application Performance of Towable Concrete Pump

During the six-month project cycle, the YG50 towable concrete pump delivered impressive stability:

• Foundation phase: Operated continuously for 28 days during foundation pouring without any breakdowns.
• Main structure phase: Successfully completed slab pouring tasks for 200 houses.
• Special applications: Perfectly handled pumping requirements for Texas-style insulation mortar.

Customer Feedback

The project contractor, Johnson Builders, gave high praise to this concrete pump trailer for sale:

• Reduced operating costs: Energy consumption dropped by 30% compared with traditional equipment, while maintenance costs decreased by 45%.
• Improved construction efficiency: Concrete work was completed 20 days ahead of schedule.
• Optimized workforce: Fewer on-site workers were needed, easing the local labor shortage.

Through the successful implementation of the Texas project, YG’s small concrete pump for sale has proven its strong competitiveness in the residential construction market. Looking ahead, YG will continue to provide high-quality products and professional services to support engineering projects worldwide.【WhatsApp/WeChat/Phone】+86 13837122632
