Small Spider Crane

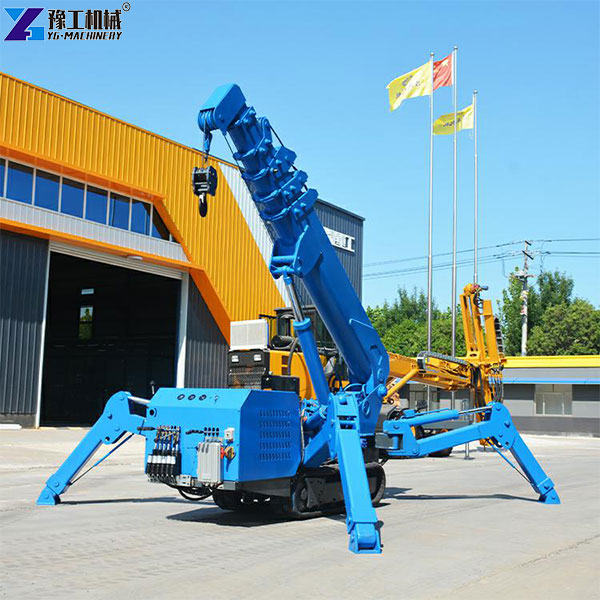

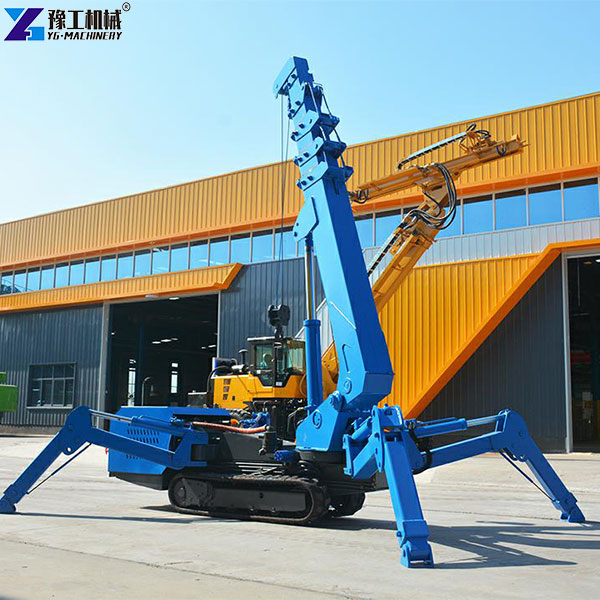

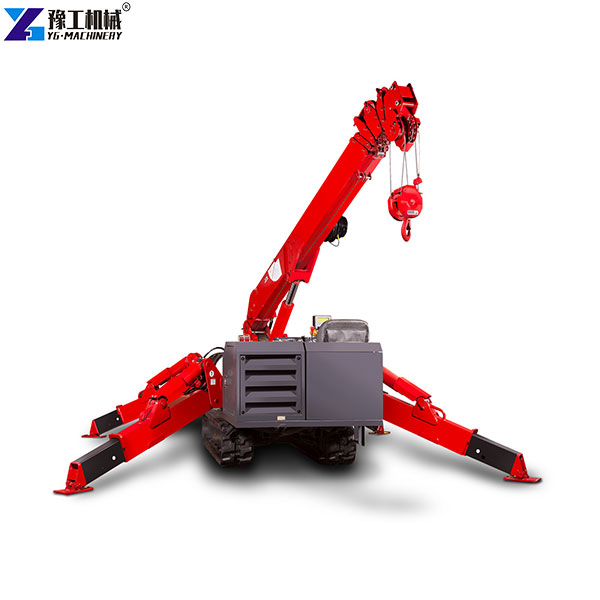

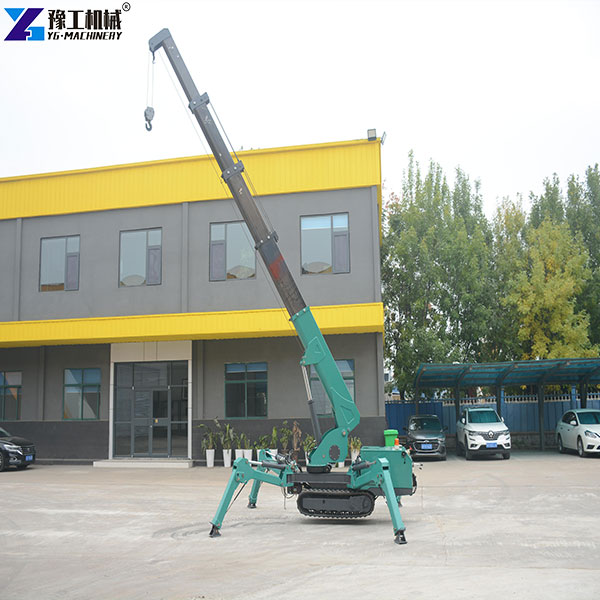

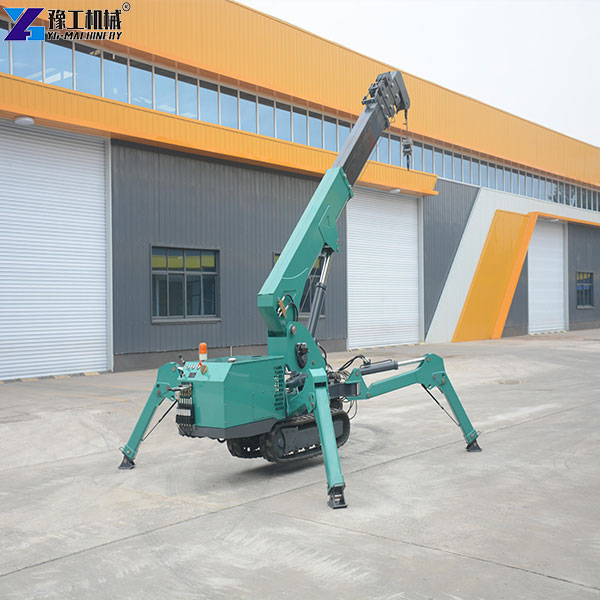

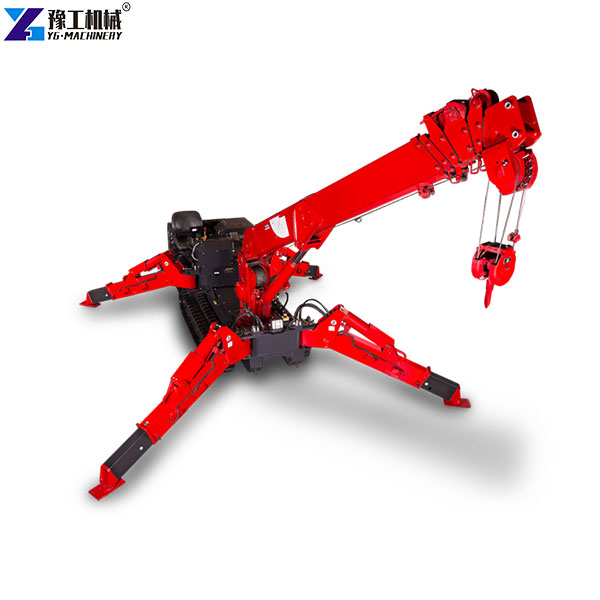

Large conventional cranes are bulky, rigid, and cannot access confined job sites. In contrast, the small spider crane delivers outstanding lifting capacity within a compact footprint. Built with rubber-tracked hydraulic travel, multi-action hydraulic drive and a structure optimized via 3D modelling and finite element analysis, this mini crawler crane suits both precision lifting jobs and tough site conditions. Simple to operate and service, it excels at delicate work such as glass curtain wall installation and general complex lifting tasks. If you are looking for a reliable mini crawler crane for sale, reach out to our team for detailed quotations and technical support.
【WhatsApp/WeChat/Phone】+86 13837122632

Get a Free Quote

Core Parameters of Mini Crawler Crane for Sale

Model		YG-3	YG-5	YG-8
Specification		3t	5t	8t
Maximum working radius		8.83m×0.15t	14m×0.5t	16.5m
Maximum above-ground head		9.2m	16.8m	18m
Winch device	Hook Speed	0-8m/min(4 rope)	12m/min(4 rope)	12m/min(4 rope)
	Rope diameter	φ8mm×45m	Φ11mm×80m	Φ11mm×80m
Telescopic system	Boom Type	5-section boom, pentagonal structure	5-section boom, pentagonal structure	5-section boom, pentagonal structure
	Boom Length/Time	3.1m-9.2m/20sec	12.3m/54sec	12.3m/54sec
Up and down	Boom Angle/Time	0°~78°/13sec	0°~78°/13sec	0°~78°/13sec
Slew system	Slew Angle/Speed	0-360°continuous/60sec	0-360°continuous/38sec	0-360°continuous/38sec
Traction system	Walking Way	Hydraulic motor drives	Hydraulic motor drives	Hydraulic motor drives
	Walking Speed	0~2.5km/h	0~2.5km/h	0~2.5km/h
	Grade Ability	(25°)36%	(25°)36%	(25°)36%
Operating system	Operation type (Boom/outrigger)	Manual operation, manual walking(remote control option)	Manual operation, manual walking(remote control option)	Manual operation, manual walking(remote control option)
	Operating characteristics	Manual operation, remote control	Manual operation, remote control	Manual operation, remote control
Transport parameters	L*W*H(mm)	2950*980*1560	5000*1500*1900	5000*1600*2180
	Total weight(kg)	2700	6200	7200

Get a Free Quote

5 Advantages of Small Spider Crane

1. Outstanding Site Adaptability

This small spider crane comes with rubber-tracked travel and low ground pressure. It can move smoothly indoors without scratching finished floors, while independent adjustable outriggers maintain stability on uneven ground. It gains access to tight doorways, basements, and other confined areas where standard cranes cannot enter.

2. Full Hydraulic Power for Precise Lifting

All movements, including lifting, boom extension, luffing, and slewing, are hydraulically driven. The structure is verified via 3D modelling and finite element analysis to deliver steady, smooth operation. It supports fine positioning, ideal for delicate tasks such as curtain wall glass installation when matched with a vacuum glass lifter.

3. Dual Control Modes for Flexible Operation

Both manual control and wireless remote control are available. The intuitive control layout reduces the learning curve, so new operators can get familiar with the machine rapidly. Remote operation keeps operators away from load zones for safer observation.

4. Easy Maintenance & Long Service Life

It adopts a modular design for straightforward inspection and component replacement. Key hydraulic and structural parts are made of premium materials for reliable durability. Reduced downtime and service costs make this mini tracked crane for sale a budget-friendly lifting option.

5. Compact Transport & Fast Deployment

The narrow, compact overall size allows transport on small flatbed trailers. No large haulage equipment is required, cutting logistics expenses. It can be moved and set up quickly on different job sites.

Get Your Best Price

Multiple Application Scenarios of Small Spider Crane

• Building Glass Installation: When it comes to building glass installation, this equipment, equipped with a vacuum suction cup, can accurately hoist glass both indoors and outdoors of buildings. It effortlessly adapts to complex roof structures, not only improving installation efficiency but also enhancing operational safety throughout the process.
• Narrow-Space Construction: In narrow-space construction scenarios, such as equipment handling in factories or renovation of old communities, its compact size enables smooth movement in cramped areas, effortlessly completing various lifting tasks with high efficiency.
• Garden Landscape Construction: In park and courtyard landscape construction, it can smoothly hoist landscape stones and small sculptures. With flexible working position adjustment, it ensures precise placement and accelerates project efficiency remarkably.

Optional Upgrades

We offer optional configurations including wireless remote control, vacuum glass lifter attachment, extended boom sections, and electric drive motor. Share your working conditions, and we can configure the best setup.

FAQs About Small Spider Crane

Q: Can I use a vacuum glass lifter with this crane?

A: Our spider cranes support matching vacuum suction cups for glass lifting. Tell us your glass size and weight when inquiring.

Q: What surface conditions are not suitable for the mini spider crane?

Avoid working on extremely soft mud, deep water, and severely sloped ground beyond its 36% gradeability limit to guarantee safe operation.

Q: Can the boom work at full load on the maximum radius?

A: Lifting capacity drops as the working radius increases. Please refer to the official load chart for accurate load limits under different boom lengths and radii.

Q: Can the outriggers be adjusted independently?

Yes. Each outrigger can be extended and levelled separately, which helps stabilise the crane on uneven or sloped job sites.

Q: Do you support custom colours or logo marking on the machine?

Custom painting and logo printing are available. Share your requirements with our sales team before production.

Talk to an Expert

Choose Small Spider Crane for Reliable Construction

YG Factory’s small spider crane has passed strict tests, with reliable quality. Whether for the diverse needs of a mini tracked crawler crane or performance expectations, YG can meet them. With rich models (YG-3/YG-5/YG-8, etc. ), it suits different construction scenarios. Contact us to choose the right equipment and start a worry-free construction journey! Besides, you can also find telescopic telehandlers, lift platforms, mini excavator diggers, and other high – quality products from YG.
