Concrete Floor Bead Blaster

Whether you need to remove old epoxy coatings from warehouse floors, prepare bridge decks for waterproofing work, or eliminate rubber deposits on airport runways — the quality of surface preparation decides the result of all follow-up procedures. A concrete floor bead blaster makes this process fast, dust-free, and repeatable. It uses centrifugal shot impact to open up surface texture, strip contaminants, and create a rough profile where coatings and waterproof membranes can bond firmly.

Get a Free Quote

Concrete Shot Blasting Machine Parameters

Model		YG-270(Single)	YG550/600(Double)	YG-850(Double)
Shot Blasting Wheel Diameter		200mm
Working width		270 mm	550/600 mm	800 mm
Walking speed		0.5~20 m/min	0.5~33 m/min
Concrete surface cleaning efficiency		≥180 m2/h	≥400 m2/h	≥600 m2/h
Steel plate surface cleaning efficiency		15-25 m2/h	75-100 m2/h	100-160 m2/h
Dust connection pipe diameter		120 mm	150 mm
Suggest the diameter of steel balls		1.2-1.5 mm	1.5-1.8 mm
Steel pill consumption		10 g/m2
Supporting dust collector		Seven-core automatic backflush vacuum cleaner	Eight-core automatic backflush vacuum cleaner
Shot wheel motor	Power consumption	11 kW	11*2 kW	15*2 kW
	Input Current	≤ 15 A	≤ 22*2 A	≤ 28*2 A
Walking motor	Power consumption	0.5 kW	1.5 kW
	Input Current	1 A	3 A
Size (mm)		1000*300*1100	1950*720/775*1400	1950*1020*1550
Weight		150 kg	570 kg	700kg
Power connection requirements		400V, 50Hz, 100A, CEE socket

Get Your Best Price

What is a Concrete Floor Bead Blaster?

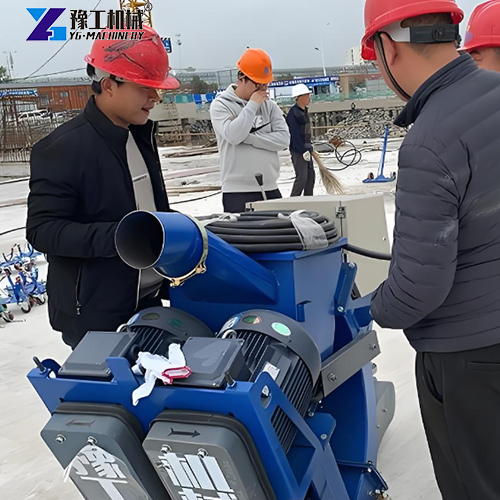

A concrete floor bead blaster is a self-propelled surface preparation machine. It hurls steel shots onto concrete surfaces through one or more high-speed centrifugal blast wheels. Unlike sandblasting, which relies on compressed air, or floor grinding that uses abrasive discs to cut surfaces, shot blasting works by impact. Steel shots strike the surface at high speed, remove laitance, old coatings, and contaminants, then bounce back into the machine for recycling and reuse.

The core components of a shot blasting machine for concrete include:

• Blast wheel — the heart of the system, rotating at high speed to launch steel shots
• Control cage — controls blasting angle and coverage width
• Hopper — stores and feeds steel shots to the blast wheel
• Recovery system — separates reusable steel shots from dust and debris using vacuum and airflow
• Dust collection system — traps fine particles to keep the job site clean

The finished surface is clean and textured, ready for the next stage directly. It avoids heavy dust from sandblasting, cement slurry from grinding, and leftover chemical residues.

How Does Shot Blasting Work on Concrete Surfaces?

The whole process runs in a continuous closed-loop cycle:

1. Blasting. The blast wheel accelerates steel shots to high velocity, and the control cage directs the shots toward the concrete surface.
2. Impact and cleaning. Steel shots hit the surface with enough force to break off and remove laitance, old coatings, curing compounds, and other surface contaminants. Meanwhile, it creates an even texture profile on the concrete.
3. Recovery. The vacuum system pulls used shots, dust, and debris back into the machine through the recovery chamber.
4. Separation. The air-wash separator inside the machine sorts usable steel shots from dust and stripped waste. Clean shots return to the hopper; waste is collected in the dust bin.
5. Recirculation. Cleaned steel shots are fed back into the blast wheel, and the cycle restarts.

Closed-Loop Shot Blasting Cycle

This closed-loop design gives the bead blaster for concrete floors clear advantages in cost efficiency and environmental protection. The same batch of steel shots can be reused thousands of times until they break into unusable fragments. Dust and debris are captured in real time, so the work area stays clean. This is critical for airborne contaminant control in indoor projects such as warehouses and food processing plants.

In real operation, a concrete floor bead blaster can reach a working output of 300–600 m² per hour, depending on surface condition and required blasting depth. The machine suits surfaces with unevenness < 10 mm and gradient < 25 °, covering most industrial and infrastructure concrete construction applications.

Talk to an Expert

Key Application Scenarios of Concrete Floor Bead Blaster

Concrete Surface Preparation

The most common use for a concrete shot blasting machine is floor preparation for new coatings, overlays, or waterproof membranes. The process removes:

• Laitance and curing agents on freshly poured concrete
• Old epoxy, polyurethane, or acrylic coatings during renovation
• Traffic markings and rubber buildup in warehouses and parking lots
• All kinds of surface contaminants that weaken coating adhesion

The finished profile is uniform, open, and free of weak surface layers, delivering the mechanical grip needed for epoxy, polyurethane, and cementitious coatings. That is why shot blasting has become the standard prep method for industrial flooring contractors worldwide.

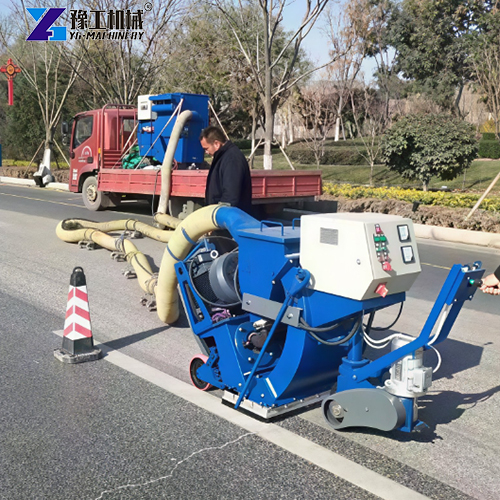

Bridge Decks, Tunnels and Airport Runways

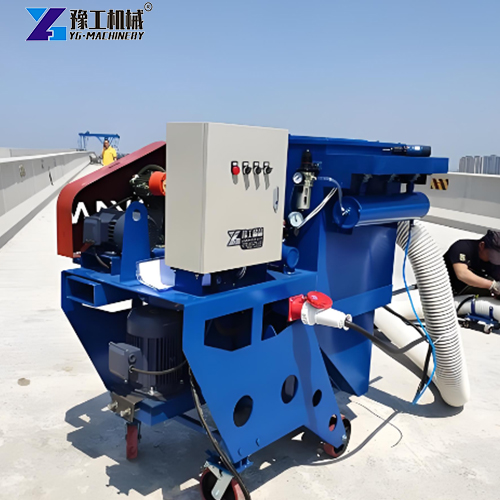

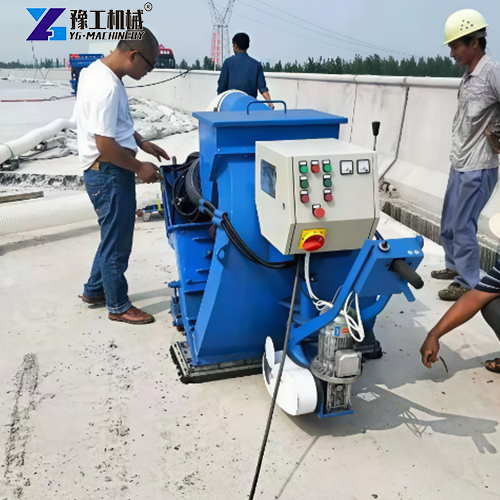

Beyond warehouse floors, shot blasting plays a vital role in infrastructure maintenance. Bridge decks are blast-treated before waterproof membrane installation. This ensures the membrane bonds directly to solid concrete instead of sitting loosely on the laitance layer. Tunnel maintenance teams use a concrete shot blasting machine to clear dust, oil, and deteriorated surface layers, without introducing water or chemicals into enclosed spaces.

At airports, runways and taxiways build up rubber deposits from aircraft braking. Shot blasting removes rubber efficiently and restores skid resistance without damaging the underlying concrete. For large-scale projects like a 50,000 m² bridge deck, steel shot consumption is around 10 g/m². A full bridge deck needs roughly 2 to 3 tons of shot media.

What to Check When Buying a shot blasting machine for concrete

When evaluating a shot blasting machine for concrete, focus on these factors: Working width and productivity. Single-wheel units cover a narrow path (typically 250–500mm), ideal for small indoor jobs. Dual-wheel designs double the working width and are standard for large bridge and runway projects. Match the machine size to your usual project scope.

1. Travel speed and climbing ability. Most machines have variable speed travel to adapt to different surface conditions. Gradients on parking structures and bridge approach ramps matter. Confirm the unit can handle the steepest slope on your job sites; most models perform well under 25°.

2. Matched dust collection system. A dust collector is not an optional extra; it is central to the recovery system. Check filter quantity and fan power. Insufficient dust capacity leads to poor shot recovery and heavy site dust. Indoor jobs may require HEPA-grade filtration.

3. Wear part service life and running costs. Control cages and blast wheels typically last around 20,000 m². Top liners and side liners have a longer service life, roughly 50,000 m². These figures directly translate to your per-square-meter operating cost.

4. Supplier reliability. When selecting a manufacturer, check whether its product line covers different project sizes, from compact precision work to heavy-duty bridge jobs. YG supplies bead blaster for concrete floors in multiple configurations, with full spare parts support and technical documentation for global markets.

Get Selection Advice

Maintenance for Concrete Floor Bead Blaster

Proper maintenance extends wear part life and keeps consistent performance. Follow these guidelines:

1. Before every shift, inspect shot piping, blast wheel condition, and dust collection function. Clear any blockages in the recovery chamber.
2. Use steel shots of the recommended diameter — 1.2–1.8mm is common for concrete work. Oversized shots wear consumables faster; undersized shots reduce cleaning performance.
3. Startup sequence: turn on the dust collector first, then start the blast wheel. Shutdown sequence: stop the blast wheel first, then let the dust collector run one full cycle to clear residual dust.
4. Inspect rubber seals regularly. Worn seals cause shot spillage, leading to surface damage and wasted abrasive. Replace seals immediately once cracks or deformation appear.
5. Monitor shot levels in the hopper. Low shot supply weakens blasting performance and speeds up wear on internal components.

These are simple daily routines, yet they directly decide whether your machine can hit the rated service life of wear parts.

Contact YG

A concrete floor bead blaster is core equipment for any contractor that prioritizes surface prep quality. It delivers three benefits that alternative methods cannot achieve together: high productivity (300–600 m²/h), dust-free operation, and consistent, controllable surface texture.

Whether your project is warehouse floor renovation, bridge deck prep for waterproofing, or runway maintenance, a properly selected shot blasting machine for concrete will reward your investment by cutting labor costs, lowering abrasive consumption, and reducing coating failure risk.

Assess your typical project scale, surface conditions, and job environment, then pick the right model. If you need selection guidance, YG offers consultation and technical support for the full range of concrete shot blasting machines.
