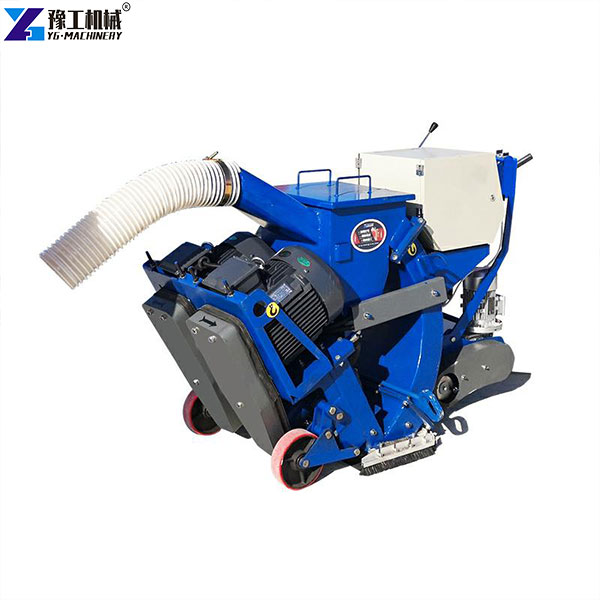

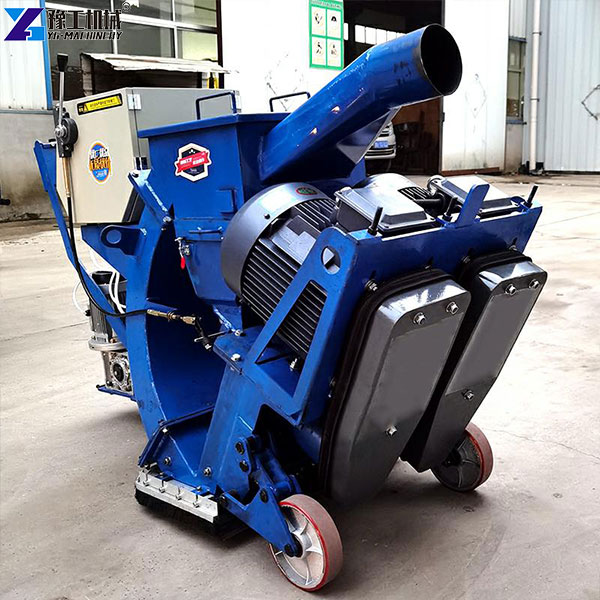

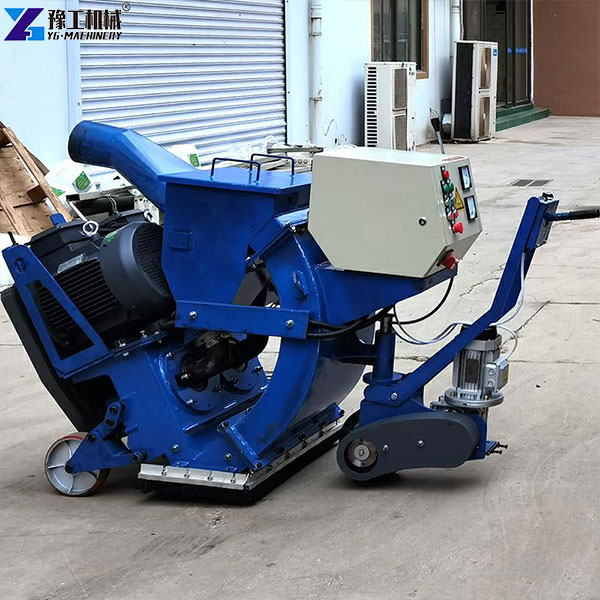

Bead Blaster Floor Machine

Tired of uneven grinding, messy residues, and low-efficiency manual surface roughening? Our bead blaster floor machine solves these problems for bridge decks, airport runways, factory floors, and steel plates. It finishes cleaning and profiling in one pass. The closed recycling system cuts consumable costs, and matched dust containment keeps your site compliant with environmental regulations. Contact us to find a suitable model for your job.【WhatsApp/WeChat/Phone】+86 13837122632

Get a Free Quote

Floor Shot Blasting Machine Parameters

Model		YG-270(Single)	YG550/600(Double)	YG-850(Double)
Shot Blasting Wheel Diameter		200mm
Working width		270 mm	550/600 mm	800 mm
Walking speed		0.5~20 m/min	0.5~33 m/min
Concrete surface cleaning efficiency		≥180 m2/h	≥400 m2/h	≥600 m2/h
Steel plate surface cleaning efficiency		15-25 m2/h	75-100 m2/h	100-160 m2/h
Dust connection pipe diameter		120 mm	150 mm
Suggest the diameter of steel balls		1.2-1.5 mm	1.5-1.8 mm
Steel pill consumption		10 g/m2

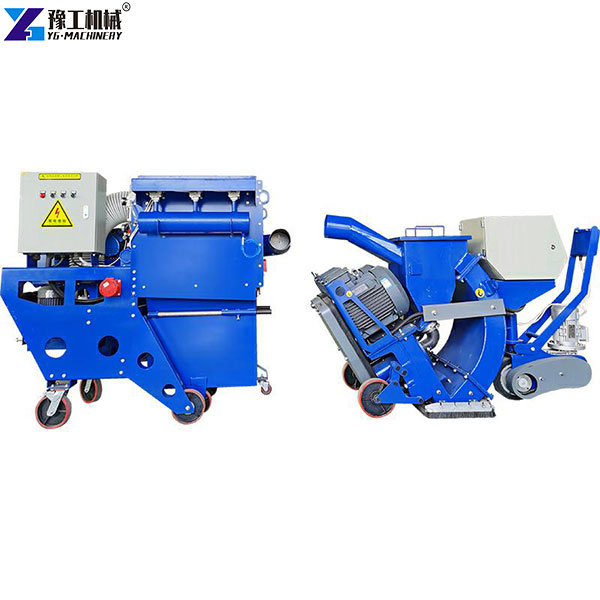

Supporting dust collector		Seven-core automatic backflush vacuum cleaner	Eight-core automatic backflush vacuum cleaner
Shot wheel motor	Power consumption	11 kW	11*2 kW	15*2 kW
	Input Current	≤ 15 A	≤ 22*2 A	≤ 28*2 A
Walking motor	Power consumption	0.5 kW	1.5 kW
	Input Current	1 A	3 A
Size (mm)		1000*300*1100	1950*720/775*1400	1950*1020*1550
Weight		150 kg	570 kg	700kg
Power connection requirements		400V, 50Hz, 100A, CEE socket

Get a Free Quote

Concrete Floor Bead Blaster Working Principle

The core working principle of this equipment is based on high-speed projectile spraying and intelligent recovery technology. The specific process is as follows:

• After the equipment starts, the built-in impeller rotates at a high speed to generate a strong centrifugal force. The projectiles are accelerated under the action of the centrifugal force and sprayed onto the ground or pavement surface at a specific angle.
• When the projectiles impact the surface, they achieve two functions: First, they peel off surface stains, old coatings, and residues (such as the glue layer on airport runways). Second, they make the surface form a uniformly rough surface, improving the adhesion and pull-out force of subsequent materials.
• At the same time, the dust collector generates negative pressure to quickly recover the shot materials, cleaned impurities, and dust. After air washing, the intact shot materials are automatically recycled, and the impurities and dust fall into the dust collection box, realizing efficient material utilization and environmental cleaning.
• For concrete ground, a concrete floor bead blaster can precisely control the impact force, neither damaging the base layer nor leaving impurities uncleaned. This is why it is favored in fine processing.

Benefits of Using Bead Blaster Floor Machine

It delivers clear economic and technical advantages over traditional grinding, acid washing or hand scarifying:

• Completes cleaning and surface profiling in a single pass. It evenly removes laitance, old coatings, runway glue, rust, and road markings without damaging the base substrate.
• Adopts a closed steel shot recycling system, which reuses abrasives continuously and greatly lowers your consumable cost.
• Supports nearly dust-free dry construction when matched with a pulse dust collector. No water or chemical cleaners are needed to satisfy strict site environmental and safety regulations.
• Produces a uniform anchor profile, which effectively boosts the bonding strength of waterproof layers, epoxy coatings, and overlays and prolongs the service life of pavements and steel structures.
• Features high working efficiency to cut down labor costs and shorten construction schedules for bridges, airports, municipal roads, and warehouse projects.

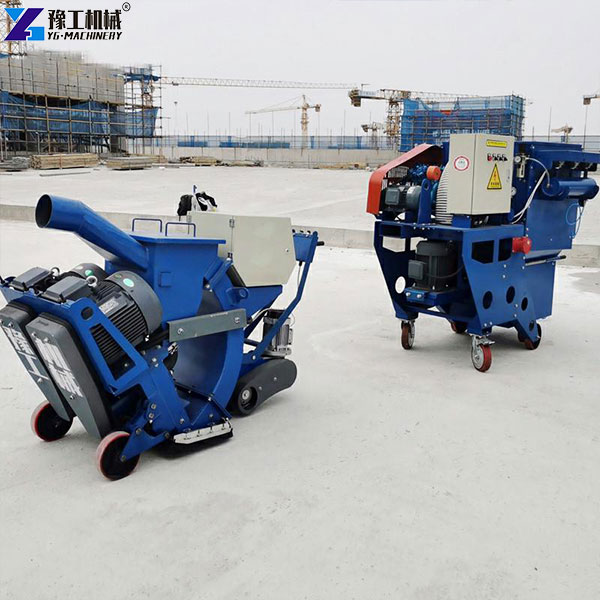

Application Scenarios of Bead Blaster Floor Machine

The application scenarios of the bead blaster floor machine are very extensive, mainly including:

• Transportation infrastructure: Processing the bridge deck surface in road and bridge waterproofing projects to enhance the adhesion of the waterproof layer; Removing glue from airport runways to ensure the anti-skid property of the runways; Pre-treating the surface before the waterproof construction of high – speed rail viaducts.
• Industry and commerce: Processing oil stains and rust on the cement ground in factory workshops; Renovating the ground in shopping malls to ensure that floor tiles or coatings fit firmly. Bead blaster for concrete floors is also suitable for strengthening the warehouse ground.
• Public facilities: Cleaning the surface before the waterproof construction of tunnels to remove dust and impurities on the inner walls of tunnels; Pre-treating the ground of large venues such as gymnasiums and convention centers to lay the foundation for laying floors or coatings.
• Municipal engineering: A floor shot blasting machine is used for surface treatment before partial repair of urban roads to improve the compatibility of repair materials and the original pavement. It is also often used for cleaning old markings and anti-skid treatment in parking lots.

Get Your Best Price

How to Select the Right Floor Shot Blasting Machine for Your Project?

Follow these key points to select a proper floor shot blaster for your project:

• Confirm your working material (concrete, asphalt, or steel plate) and surface standard, such as SA2.5 or SA3 for steel blasting.
• Calculate your daily working area and evaluate site space. Compact YG270 works well for indoor workshops, narrow areas, and small repair jobs.
• YG550/600 balances efficiency and flexibility, the top choice for bridge deck waterproofing and parking lot renovation.
• Pick high-output YG850 for large projects: airport runways, tunnels and large warehouse floors.
• Check site conditions, including power supply, ground slope, and humidity limits in advance.
• Confirm the availability of wear spare parts and reliable after-sales technical support.
• Send us your project information, and our team will recommend the best machine and suitable steel shot size.

Talk to an Expert

FAQs about Bead Blaster Floor Machine

Q: What rust removal standard can the floor shot blaster achieve on steel plates?

It can reach SA2.5 and SA3 standards. You can adjust the travel speed to control the blasting result. Approximately 4 m/min for SA2.5 and 3 m/min for SA3.

Q: Do you supply wear spare parts?

Yes. We keep stock of all common consumables, including control cages, impeller wheels, top liners, and side protective liners, available for separate orders.

Q: How often do I need to replace wear parts?

Control cages and impeller wheels last around 20,000 m². Top liners and side protective liners can reach about 50,000 m². Actual service life depends on steel shot quality and substrate hardness.

Q: Can you provide a customized solution for my project?

Yes. Tell us your base material, daily working area, and site conditions, and we will recommend the most suitable machine, steel shot, and matched dust collector.

YG Bead Blaster for Concrete Floors Machinery: Quality is Guaranteed

As a professional manufacturer of bead blaster floor machines, YG Machinery always focuses on technological innovation and quality. Our equipment is not only efficient but also precise. Moreover, the shot material circulation system and dust removal design of the equipment fully meet the low-carbon and environmental protection standards. It has been strictly tested to ensure stable operation in complex scenarios such as roads, bridges, airports, and tunnels. From raw material procurement to production and processing, every step is pursued with excellence, and customized solutions are provided. By choosing YG Machinery’s products, you will get efficient and reliable surface treatment support, making the construction more worry-free and the quality more guaranteed. In addition,
