In the field of core drilling, a core drill rig for sale is an important core drilling equipment. It is mainly used for the prospecting and exploration of metal and non-metal solid minerals. It can also be applied to engineering geological investigation, hydrogeological survey, prospecting and exploration of oil and gas fields, and water well drilling. Core drill rigs are divided into three categories: spindle type, turntable type, and mobile rotator type. Among them, the spindle-type rig is most widely used. If you want to know the detailed information of this equipment, please feel free to contact us for a quote, and we will provide the product manual.【WhatsApp/WeChat/Phone/Skype】+86 13837122632
The following are the main technical parameters of the XY-3 series rig to help you fully understand the equipment’s performance:
Classification
Parameter Item
Unit
XY – 3
XYD – 3
XYX – 3
Whole Machine Parameters (Tech parameter)
Model
–
XY – 3
XYD – 3
XYX – 3
Drilling depth
m
600
600
600
Open hole dia.
mm
325
325
325
End hole dia.
mm
75
75
75
Drill angle
°
90/75
90/75
90/75
Matching power
kW
Yunnei YN27/42
Yunnei YN33GBZ/65
Yunnei YN27/42
Weight without power
kg
1800
6200
3600
Dimension (Length * Width * Height)
m
2.6*0.9*1.75
4.5*2*2.7
2.9*2.56*3.3
Spindle (Spindle)
Spindle speed
r/min
32 – 1057
32 – 1057
32 – 1057
Spindle stroke
mm
600
600
600
Winch (Winch)
Max pull force
kg
3000
4500
3000
Pull speed
m/s
0.3 – 1.9
0.3 – 1.9
0.3 – 1.9
Rope dia.
mm
∅12.5
∅12.5
∅12.5
Roll capacity
m
65
65
65
Drill Mast (Drill Mast)
Rated load
ton
18 (optional)
18
18
Height
m
11
6.5
6.5
The XY-3 series rig is a medium-shallow hole core drill rig. Primarily intended for diamond drilling, this rig is capable of meeting the requirements of various drilling processes. As a spindle-type core drill rig, it can be matched with corresponding electric motors or diesel engines to serve as a power source. The structure is simple, easy to disassemble, and operate.

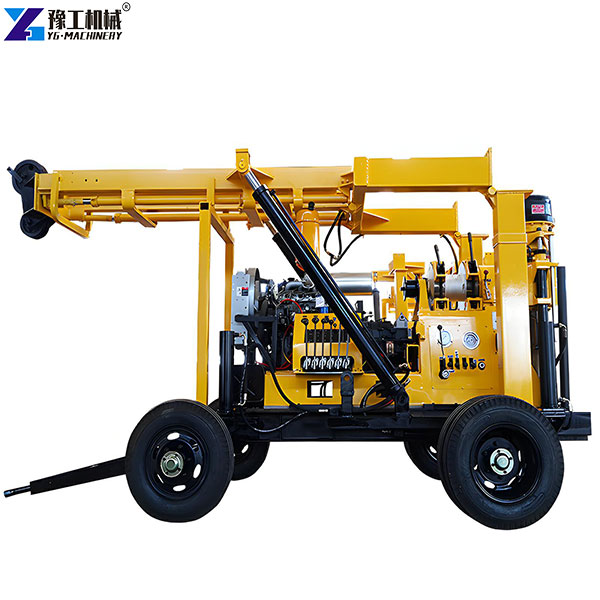

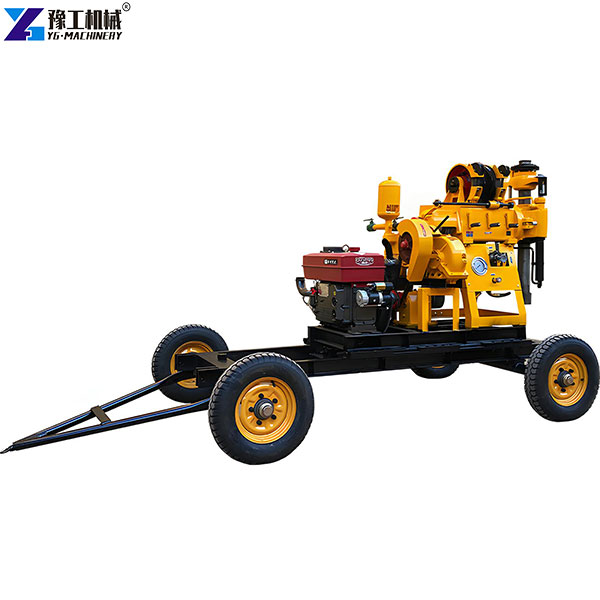

To meet the special requirements of users, a variety of special-type rigs have been developed on the basis of the XY-3, such as the XYX-3 four-wheel trailer type, XYD-3 crawler self-propelled type (optional steel crawler or rubber crawler), etc. These special rigs use hydraulic high legs, which are convenient for loading, unloading, and auxiliary support. The hydraulic automatic tower raising improves the safety of tower raising, reduces labor intensity, and can greatly improve the economic benefits of users.
Product Features of Core Drilling Machine for Mining
Flexible Process Adaptation: The rig adopts the latest MW525 automobile gearbox assembly, with 10 forward gears and 2 reverse gears. The speed of each gear is designed reasonably, which can meet the needs of different drilling processes.
Strong Torque and Rigidity: The rig has a large output torque and strong bearing capacity, which is convenient for dealing with various down-hole accidents; the mechanical transmission structure is compact, the spindle through-hole diameter is 96mm, and the support distance is large, so the rig has good rigidity.
Intelligent Hydraulic Control: The hydraulic system can realize the control of feed pressure and speed to meet the needs of drilling in various formations. At the same time, it is equipped with a bottom-hole pressure indicator to facilitate the mastery of down-hole conditions.
Portable and Easy-to-maintain Design: The rig has a small size, light weight, good disassembly performance, reasonable layout, flexible and reliable operation, and easy maintenance.
Application Scenarios of Core Drilling Equipment

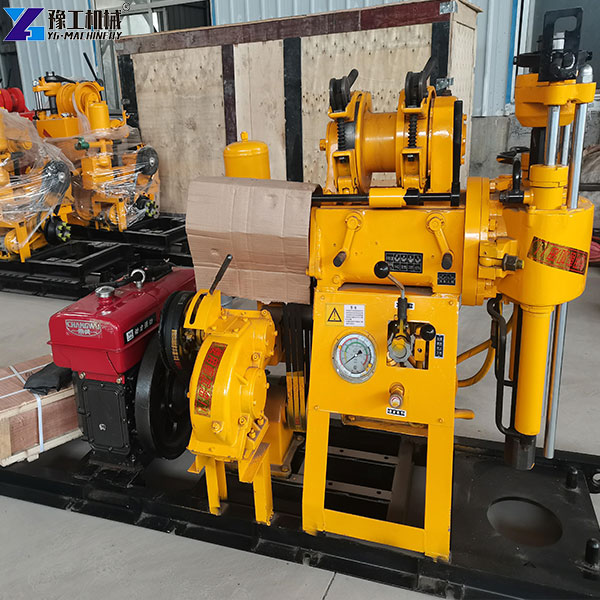

core drilling machine for mining

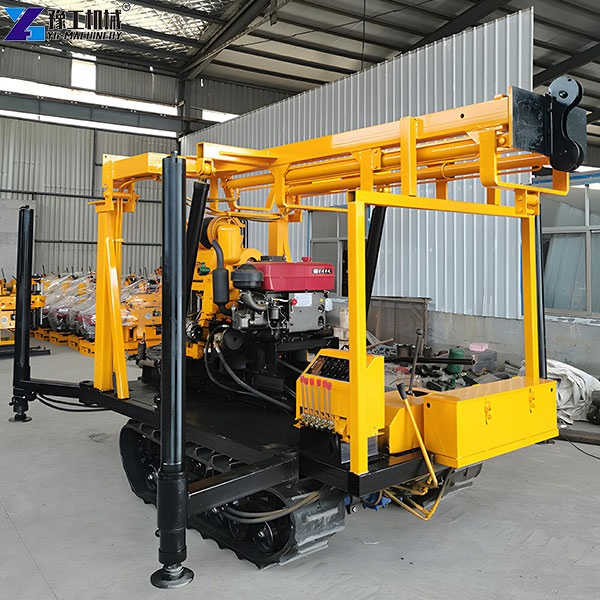

crawler-type core drill rig for sale

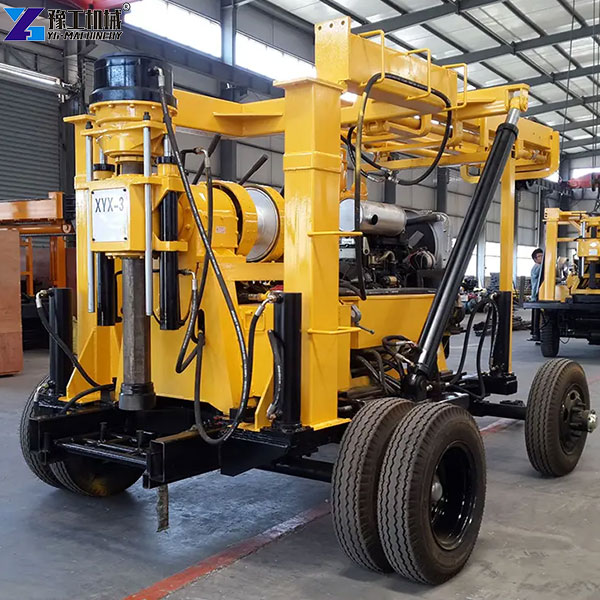

wheel-type core drilling equipment
Mineral Prospecting: As a core drilling machine for mining, it can efficiently complete the prospecting and exploration of metal and non-metal solid minerals and obtain accurate core samples.
Engineering Construction: It can be used for engineering geological investigation to provide geological data support for the design and construction of projects such as buildings and roads.
Hydrogeology and Oil & Gas Field: It is suitable for hydrogeological survey, prospecting, and exploration of oil and gas fields, and helps in the development of related resources.
Mine Development: In the process of mine exploitation, it plays an important role in cooperation with other equipment. If you are concerned about the mining drilling machine price, we can also provide relevant information.
Choose YG’s Core Drill Rig for Sale with Confidence
Choosing YG’s core drill rig for sale, you don’t need to worry about quality and service. Our equipment has passed strict inspection to ensure stable performance. Whether it is product details, product application, or consultation on mining drilling machine price, we will answer patiently. The professional after-sales team will provide services such as installation, commissioning and operation training, so that you can buy without worry and carry out drilling work efficiently. In addition, YG also sells high-quality equipment such as full-hydraulic core drill rigs and small water well rigs. Welcome to contact us at any time!【WhatsApp/WeChat/Phone/Skype】+86 13837122632
