Core drilling equipment is the “precision hunter” in mine exploration and the “data expert” in geological research! With full hydraulic transmission, it’s powerful and flexible. Its remote-controlled crawler chassis handles mountains and hills easily. It extracts cores efficiently, avoiding jamming, aiding mineral evaluation and geological analysis. For quotes or manuals, online customer service is ready, supporting from selection to after-sales for worry-free purchase.【WhatsApp/WeChat/Phone】+86 13837122632
Core Parameters Of Core Drilling Machine For Mining
| Model | YDX-400XL | YDX-600XL/GL | YDX-800S/GL | YDX-1000GL |
| Drilling capacity – Depth (M) | 180-400-500 | 200-600-650 | 400-800-1000 | 500-1000-1100 |
| Hydraulic system – Rated pressure (MPA) | 21 | 21 | 25 | 28 |
| Hydraulic system – Rated flow (L/min) | 168 | 192 | 260 | 300 |
| Hydraulic system – Cooling method | Air cooling + Water cooling | Air cooling + Water cooling | Air cooling + Water cooling | Air cooling + Water cooling |
| Engine – Brand | Yuchai | Yuchai | Yuchai | Cummins |
| Engine – Rated speed (RPM) | 2400 | 2400 | 2400 | 2400 |
| Engine – Rated power (KW) | 78 | 92 | 92 (6-cylinder) | 154 (6-cylinder) |
| Power head – Torque (N.M) | 300-500 | 450-1000 | 950-1300 | 1000-3500 |
| Power head – Speed (RPM) | 1300 | 1300 | 1300 | 1300 |
| Power head – Feeding stroke (MM) | 1900 | 1900 | 2400 | 3500 |
| Tower – Type | Ground-touching integrated tower | Ground-touching integrated tower | Ground-touching integrated tower | Ground-touching integrated tower |
| Tower – Drilling angle (°) | 0-90 | 45-90 | 45-90 | 45-90 |
| Tower – Lifting force (T) | 12 | 16 | 24 | 30 |
| Tower – Feeding force (T) | 6 | 8 | 12 | 15 |
| Travel – Type | Manual + Remote control | Manual + Remote control | Manual + Remote control | Manual + Remote control |

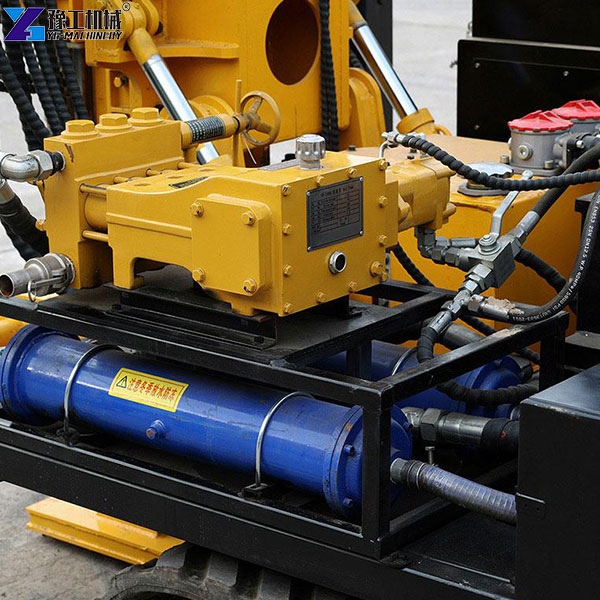

| Hydraulic mud pump – Flow (L/min) | 30-90 | 30-90 | 90-180 | 90-180 |
| Hydraulic mud pump – Pressure (MPA) | 4-7 | 4-7 | 4-7 | 4-7 |
| Transportation size (MM) | 4000×1900×1800 | 4000×2000×1800 | 5500×2100×2000 | 6000×2200×2400 |
| Total weight (T) | 4.3 | 4.5/5.5 | 6.5 | 7.5 |
Prominent Features of Core Drilling Equipment
(1) Optimization of the whole machine structure

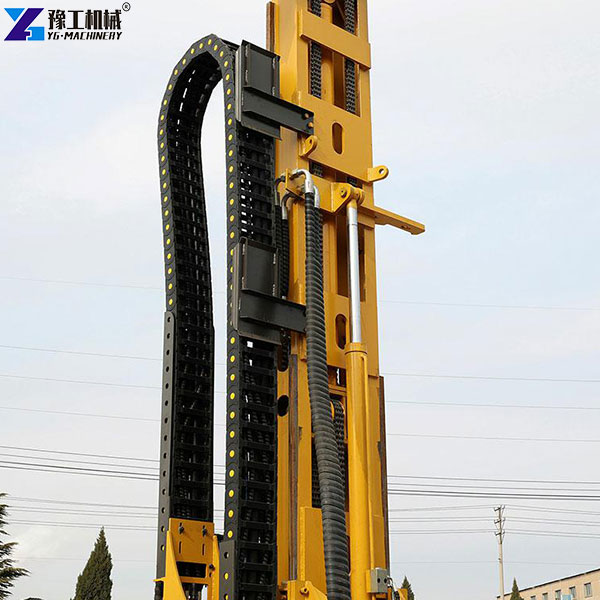

All models of crawler-type full hydraulic core drilling rigs focus on structural design. For example, models with an integrated tower and machine design can quickly complete hole layout and hole moving operations, greatly reducing the input of manpower and material resources. Most crawler chassis are remote-controlled, making operation safe and convenient, and suitable for operations in complex terrains. The mast telescopic drilling frame structure (some models feature a ground-touching integrated tower) eliminates the need for additional drilling towers, making transportation and disassembly more efficient and safer. The top-driven power head is paired with a long-stroke guide rail (with different feeding strokes for different models), driven by an oil cylinder, eliminating the need for repeated rod reversing, and having excellent guidance and directionality. Moreover, the machine occupies a small area, does not require complex foundation engineering, and conforms to the concept of green environmental protection.
(2) Full hydraulic transmission

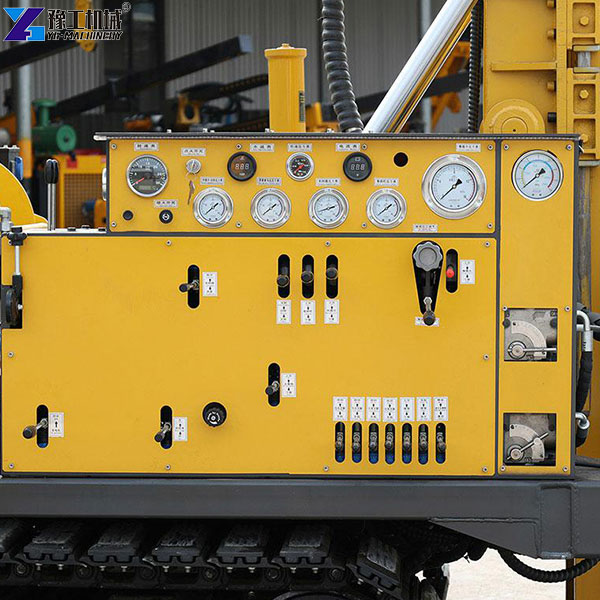

The core drilling rig adopts full hydraulic transmission technology, with flexible and lightweight layout, simple operation, convenient maintenance, and reduced use costs. It supports stepless speed regulation, enabling high-speed drilling with stable process, low vibration, and improved drilling accuracy. It can monitor the downhole situation in real-time through various pressures (relying on hydraulic system pressure parameters, etc.), with overpressure protection function, significantly improving safety.
(3) Thin-walled diamond wireline coring drilling technology

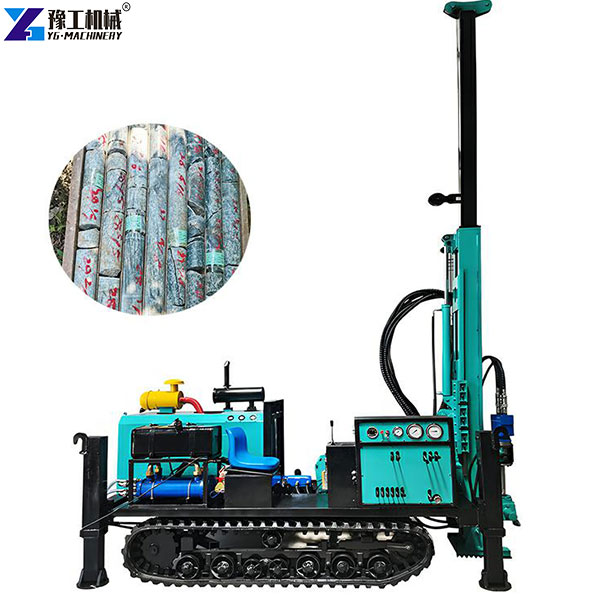

The drill string system has the characteristics of “full, rigid, and straight”, with good hole deviation control, ensuring the integrity of core samples. The thin-walled drill bit has low torque resistance, fast cutting speed, and high drilling efficiency, helping to improve exploration efficiency. The core diameter is large and the core recovery rate is high, providing reliable samples for geological analysis. The annular gap is small, which is not easy to cause accidents such as block falling and sticking, further enhancing operational safety.
Wide Applications of Core Drill Rig For Sale
Core drill rig for sale has a wide range of applications. Models with different drilling depths (such as YDX-400XL suitable for relatively shallow exploration, and YDX-1000GL capable of handling deeper needs) can accurately obtain mine rock formation information, facilitating efficient mining. At the same time, the equipment is also applicable to fields such as geological surveys and hydrological exploration. Whether it is deep mineral resource exploration or shallow geological structure research, it can play an important role.
Choose YG’s Core Drilling Equipment For Peace Of Mind And Reliability
Choosing the right core drilling equipment can improve exploration efficiency. YG has 20 years of industry experience and has been deeply engaged in the construction equipment field for many years. It strictly controls the research, development, and production of different models of equipment, ensuring reliable product quality. Moreover, there is no middleman to make a difference. Our mining drilling machine price is reasonable and transparent, allowing you to purchase high-quality equipment at a reasonable cost. Choose YG, let the full hydraulic core drilling rig be a reliable partner in your project advancement, and buy with confidence and use without worry. In addition, YG also sells crawler water well drilling rigs, trailer-type water well drilling rigs, small water well drilling rigs and other equipment. If you want to know the specific price of the equipment and the adaptation plan of the detailed parameters of the equipment, you can contact us at any time, and we will be at your service 24 hours online.【WhatsApp/WeChat/Phone】+86 13837122632
