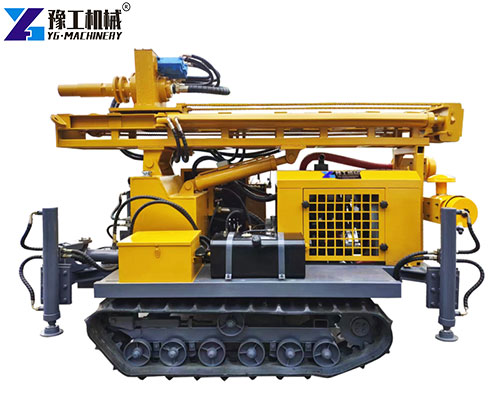

Crawler drill rig is an efficient water-air dual-purpose drilling equipment with flexible operation modes. It easily adapts to soft soil, hard rock, and complex formations, handling rural water well drilling and special pneumatic operations well. Its robust power and crawler design enable stable, efficient work in mountains and mud. Want a good water well drilling rig price? Contact us for a detailed quote—our team will help you make the right decision.【WhatsApp/WeChat/Phone】+86 13837122632
Core Parameters And Advantages Of Hydraulic Crawler Drill
Different models of hydraulic crawler drill have distinct parameters and advantages, detailed in the table below:
| Model | YG-180 | YG-200 | YG-300 | YG-300A | YG-400 | YG-600 |
| Drilling hole diameter | 140-254mm | 140-305mm | 140-325mm | 140-325mm | 140-350mm | 140-350mm |
| Drilling depth | 180m | 200m | 300m | 300m | 400m | 600m |
| One-time advance length | 3.4m | 3.4m | 6.6m | 3.4m | 6.6m | 6.6m |
| Walking speed | 2.5km/h | 2.5km/h | 2.5km/h | 2.5km/h | 2.5km/h | 2.5km/h |
| Climbing angles (Max.) | 30° | 30° | 30° | 30° | 30° | 30° |
| Equipped capacitor | 55kw | 65-70kw | 84kw | 75.8kw | 92kw | 115kw |
| Using air pressure | 1.7-2.5mpa | 1.7-3.0mpa | 1.7-3.3mpa | 1.7-3.0mpa | 1.7-3.5mpa | 1.7-3.5mpa |
| Air consumption | 17-31m³/min | 17-30m³/min | 17-35m³/min | 17-35m³/min | 17-35m³/min | 17-35m³/min |
| Drill pipe length | 1.5m, 2.0m, 3.0m | 1.5m, 2.0m, 3.0m | 1.5m, 2.0m, 3.0m, 6.0m | 1.5m, 2.0m, 3.0m | 1.5m, 2.0m, 3.0m, 6.0m | 1.5m, 2.0m, 3.0m, 6.0m |
| Drill pipe diameter | 76mm, 89mm | 76mm, 89mm | 89mm, 102mm | 76mm, 89mm, 102mm | 89mm, 102mm, 108mm | 102mm, 108mm, 114mm |
| Rig lifting force | 15t | 12t | 20t | 16t | 22t | 28t |
| Swing speed | 45-65rpm | 45-70rpm | 45-115rpm | 40-70rpm | 45-115rpm | 45-115rpm |
| Swing torque | 3200-4600(N.m) | 3500-4800(N.m) | 6200-8500(N.m) | 5700-7500(N.m) | 6500-9000(N.m) | 8500-11000(N.m) |
| Dimension | 3800×1500×2200mm | 4000×1750×2450mm | 5900×2000×2850mm | 4100×1950×2600mm | 5900×2100×2850mm | 6000×2200×2850mm |
| Weight | 4500kg | 5800kg | 9000kg | 7000kg | 10000kg | 12000kg |
(1) Performance parameters support efficient operation
From the table, different crawler drill rig models have drilling diameters of 140-350mm, depths of 180-600m, and one-time advance lengths of 3.4-6.6m. They all have a walking speed of 2.5km/h and a climbing capacity of 30°, adapting to various terrains. With 55-115kw capacitors and 1.7-3.5mpa air pressure, they meet different work intensities. The hydraulic crawler drill transmission system ensures stable, precise power and easy switching between water and air modes.
(2) Advantages highlight practical value
- Flexible adaptation: Optional drill pipe lengths (1.5-6.0m) and diameters (76-114mm). Compact structure, easy maintenance, and universal parts reduce costs.
- Safe and efficient: Equipped with overload protection and emergency stop devices. High drilling accuracy and quality reduce rework, boosting efficiency.
- Multi-scene coverage: Crawler design works stably in mud and mountains, fitting rural water supply, agricultural irrigation, geological exploration, and industrial water use.
Application Scenarios of Borehole Rig
Borehole rig is widely used:
- Rural water projects: With its efficient drilling capability, the equipment can quickly drill qualified wells that meet drinking water standards, ensuring a stable supply of clean and safe water for rural residents, effectively solving the problem of difficult water access in remote areas.
- Agricultural irrigation: It can efficiently drill wells in farmland areas, providing a reliable water source for crops. This helps meet the water needs of different growth stages of crops, promoting healthy growth and increasing agricultural output.
- Geological exploration: Equipped with precise drilling technology, it can accurately obtain underground rock samples, which are crucial for geological research. These samples provide reliable data support for understanding stratum structures and mineral distribution.
- Industrial water use: The equipment can drill suitable water sources for factories, ensuring a continuous and stable water supply for production processes. This helps avoid production interruptions caused by water shortages, ensuring the smooth operation of enterprises.
Choose YG Machinery’s Crawler Drill Rig – Procure with Confidence
YG’s crawler drill rig undergoes strict testing, ensuring reliability. Sold directly by the manufacturer, the water well drilling rig price is reasonable and transparent, letting you buy high-quality equipment at a good cost. We offer full after-sales service, from installation to maintenance. Choose YG—start efficient, stable drilling. Contact us for preferential quotes! YG also sells small water well rigs, vehicle-mounted water well rigs, and core drills.【WhatsApp/WeChat/Phone】+86 13837122632
