In underground pipeline projects such as water supply, electricity, and natural gas, directional drilling equipment has become an indispensable construction tool. It can drill underground along a preset path and pull the pipeline accurately into place, without affecting ground traffic and facilities.【WhatsApp/WeChat/Phone】+86 13837122632

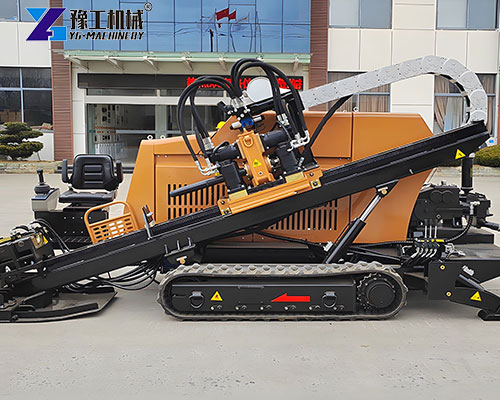

The construction process of a directional boring rig is like precise “underground navigation”, mainly divided into three steps:
Pilot Hole Drilling
First, the operator uses the drilling machine to drill a guided drill bit with a probe along the designed path. The electronic beacon inside the drill bit sends real-time data such as depth and angle to the ground receiver. The operator adjusts the drilling direction accordingly to bypass underground obstacles accurately.
Step-by-Step Reaming
After the pilot hole is completed, remove the drill bit and replace it with a reamer. As it is pulled back, the reamer enlarges the hole to the required diameter, preparing for pipeline installation.
Pipeline Pullback
Finally, connect prefabricated pipes (such as PE pipes, steel pipes) to the back of the reamer. As the drill rods are retracted, the pipes are smoothly pulled into the enlarged hole to finish installation.
The whole process is highly automated, with advanced functions including adaptive hard rock operation, automatic drill rod stacking and extraction, and automatic lubrication for drill rod connections. Construction efficiency and accuracy are effectively guaranteed.
Directional Drilling Equipment vs. Traditional Excavation: A Revolution in Construction Methods
Compared with traditional excavation, the advantages of directional drilling equipment are revolutionary:
No damage, more environmentally friendly
Traditional excavation requires cutting roads and damaging greenery, followed by restoration. directional boring rig works without digging the surface, perfectly protecting crops, vegetation and cultural relic protection areas — truly green construction.
No traffic jams, more convenient

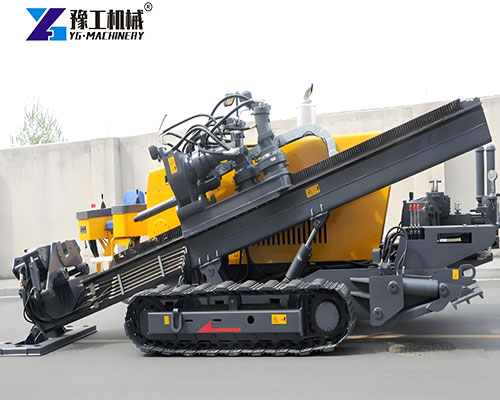

In urban construction, traditional excavation often causes congestion and complaints. The HDD drilling machine works without blocking traffic. It can operate 3 meters below the road surface, and reach 6–18 meters deep when crossing rivers, with no impact on ground activities.
No detours, more precise
Traditional pipelines have to make big detours or reconnect when meeting obstacles. This machine can steer, adjust depth at any time and avoid obstacles, with extremely high construction accuracy.
Shorter period, more economical
Traditional excavation involves fencing, road cutting, digging, pipe laying, backfilling and road repair — long cycle and high labor. This machine shortens the construction period, uses fewer workers, and has lower overall cost.
Five Key Factors Affecting the Efficiency of Directional Drilling Equipment

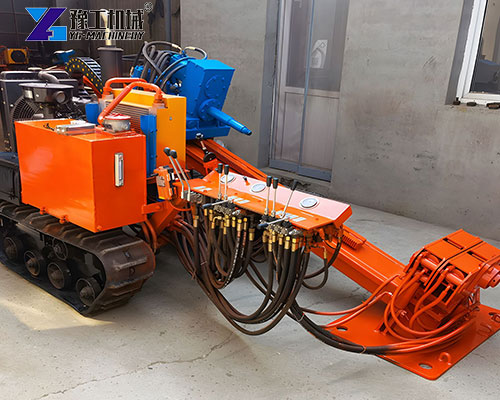

To fully utilize the performance of horizontal directional boring machine, the following points are important:
Geological conditions
Most non-hard rock areas (clay, sand, silt) are suitable. For gravel or soft rock, choose a model with higher torque. Hard rock requires special rock bits and mud motors.
Mud performance
Mud (drilling fluid) cools the bit, carries cuttings, and stabilides the hole wall. Proper mud ratio, flow and pressure greatly improve efficiency.
Guidance system accuracy
Advanced ultra-deep guidance systems ensure accurate drilling in complex formations and avoid rework.
Equipment automation level

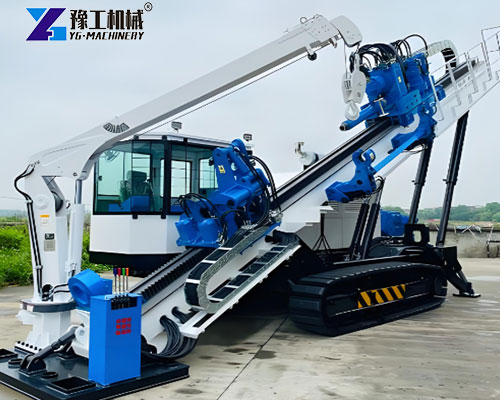

Drilling rigs with self-anchoring systems and automatic rod loading/unloading greatly reduce auxiliary time.
Operator experience
Even high-quality machines need experienced operators. Their judgment of geology and adjustment of parameters directly affect results.
What Projects are Horizontal Directional Boring Machine Suitable for?
Directional drilling equipment has a wide range of applications, covering almost all fields requiring flexible pipeline installation:
Municipal utilities: Water, electricity, telecom, natural gas and gas pipelines, ideal for downtown areas to avoid repeated road digging.
Traffic crossing: Cross roads, railways and highways without closing traffic or complicated permits.
Water conservancy crossing: Easily cross rivers and dams for water intake or drainage pipelines.
Energy & communication: Oil, natural gas and long-distance communication cables. Maximum length up to 1500 meters, suitable for pipe diameters φ300~φ1200mm.
Special protection areas: The only practical choice in cultural relic zones, crop areas and other sites unsuitable for excavation.
Notably, burying pipelines 6–18 meters deep reduces oxygen and corrosive substances, providing natural anti-corrosion and thermal insulation, extending service life.
FAQ About Directional Boring Rig
Q: In which formations can it work?
A: Suitable for various soil conditions from soft soil to hard rock, especially most non-hard rock areas (clay, sand, silt). Working temperature: -15℃ ~ +45℃.
Q: How accurate is the construction?
A: Modern rigs are equipped with advanced electronic guidance systems for real-time bit tracking. Operators control the path precisely, adjust depth and bypass obstacles.
Q: How are drill rods connected and how is mud delivered?
A: Drill rods are connected by high-strength threads to withstand high torque. The hollow rods deliver high-pressure mud to the bit, cooling electronics and assisting guidance.
From oil and gas pipelines crossing mountains to urban underground communication networks, directional drilling equipment is reshaping infrastructure construction with high efficiency, precision and environmental protection. It is a powerful solution for complex projects and an essential part of smart cities and green engineering. If you are facing pipeline installation challenges, let this “underground navigation system” create a new path for you.【WhatsApp/WeChat/Phone】+86 13837122632
