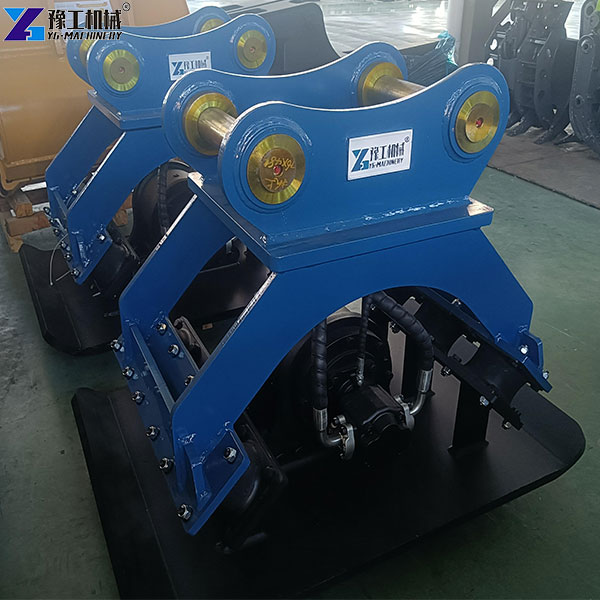

Excavator Vibrating Plate Compactor

Excavator vibrating plate compactor is a hydraulic vibratory compactor suitable for various terrains and operation methods. It can easily complete compaction of complex foundations such as flat surfaces, slopes, steps, trenches, and pits. It can be directly used for piling. After installing a fixture, it can also be used for pile driving/pulling, crushing, and other operations. Whether it is regular compaction or special working conditions, this equipment can handle it efficiently. For quotations and product manuals, please contact us!【WhatsApp/WeChat/Phone】+86 13837122632

Get a Free Quote

Product Parameters of Excavator Vibratory Plate Compactor

Model	YG-32	YG-50	YG-80	YG-107
Vibration force(KN)	40	65	110	150
Excitation frequency(RPM)	≥2000	≥2000	≥2200	≥2200
Working pressure(MPA)	15	15	15	15
Maximum flow(L/min)	60	100	160	160
Suitable excavators(T)	4-9	10-18	20-27	30-40
Length/width/height(mm)	900*550*750	1160*700*930	1350*900*1000	1350*900*1050
Machine weight(KG)	380	550	920	1050
Hit area(mm)	900*550	1160*700	1350*900	1350*900

Get a Free Quote

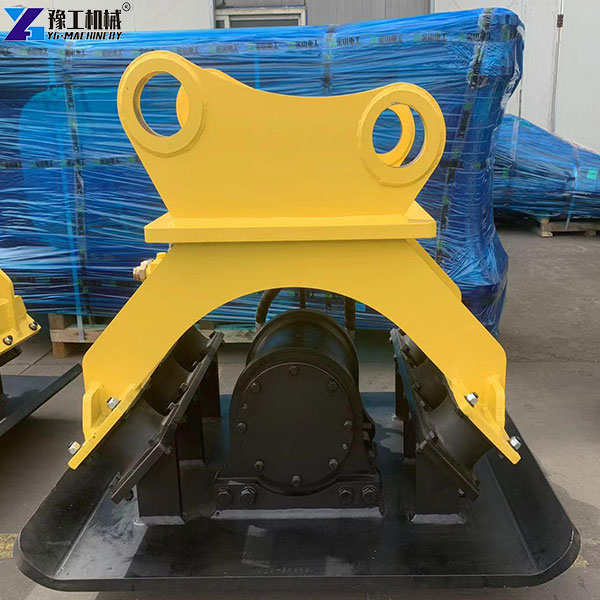

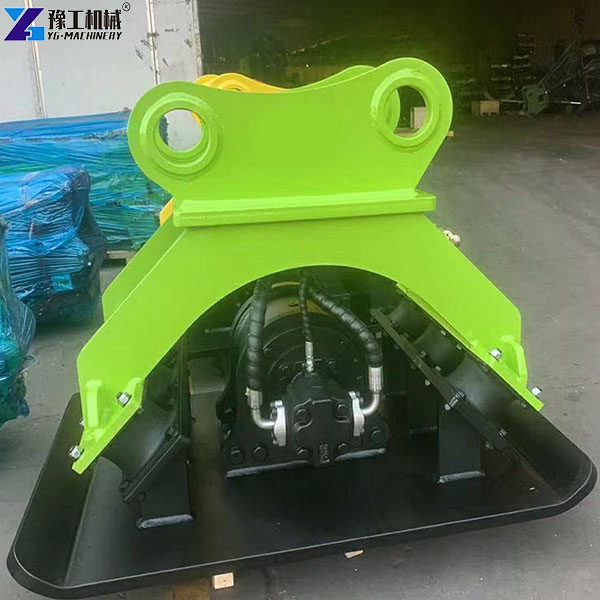

Working Principle of Hydraulic Plate Compactor

It is mainly composed of a vibration mechanism, a base plate, a connection device, and an installation system adapted to the excavator. The core vibration mechanism is the source of compaction power, usually using an eccentric block vibrator. The hydraulic system of the excavator provides power to drive the eccentric block to rotate at high speed, generating a high-frequency periodic exciting force. This exciting force is transmitted to the base plate, causing the base plate to vibrate strongly up and down, thus achieving the compaction effect.

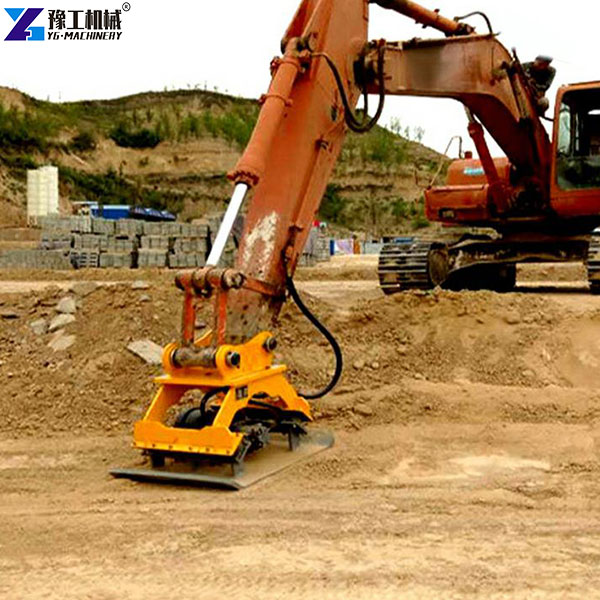

Product Applications of Hydraulic Compactor

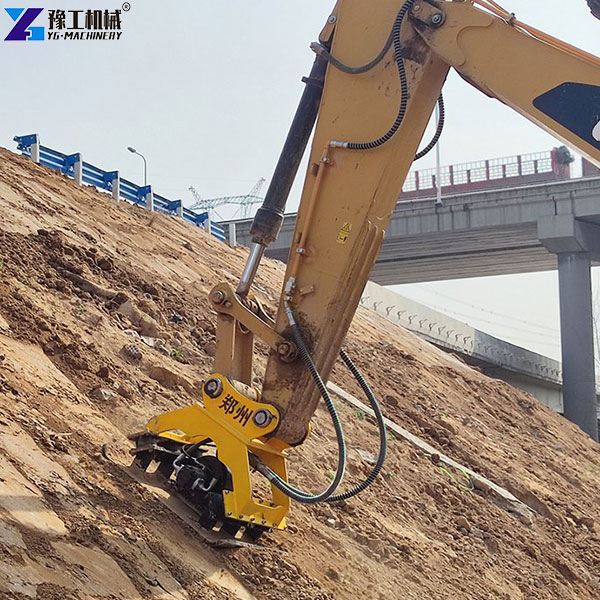

• Highway and railway fields: Used for compaction of subgrades such as bridge abutment backs, culvert sides, road shoulders, and slope protection.
• Water conservancy projects: Compaction of dams and slope protection to ensure structural stability.
• Building construction: Compaction of building trenches, backfilled soil, and repair compaction of concrete pavements.
• Municipal construction: Compaction of side ditches, wellheads, pipe sides, and handling of auxiliary facilities such as building trenches, foundations, and pipelines.
• Special operations: Can be used for pile driving/pulling and crushing when necessary, suitable for multi-scenario construction needs.

Get a Free Quote

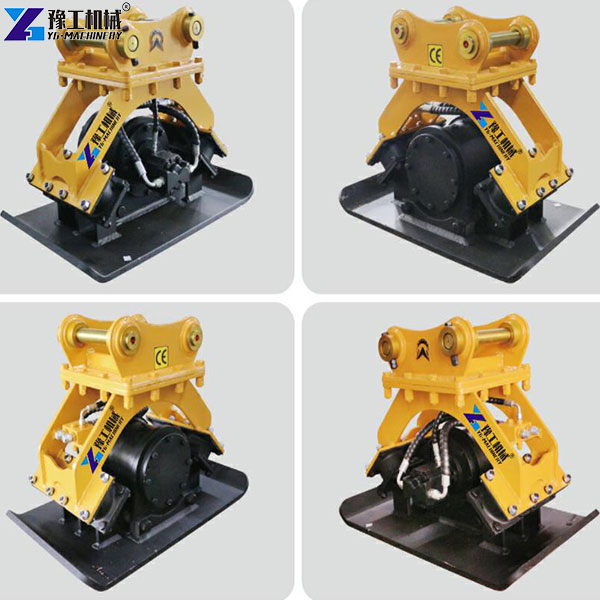

Product Features of Excavator Vibrating Plate Compactor

• Widely applicable: Can handle compaction of ditches, slopes, steps, and complex terrains. It can also be used for operations such as pile driving/pulling and crushing.
• High-quality materials: Made of Q345 manganese plate steel, with high strength and corrosion resistance. The pin shaft is made of 42CrMo alloy steel with a built-in oil passage, combining strength and toughness.
• Reliable core components: Uses imported hydraulic vibration motors from the United States (durable), imported FAG bearings from Germany (low noise, safe and reliable), and Autox shock-absorbing blocks from South Korea (good toughness, fatigue-resistant).
• Strong adaptability: It can expand functions by installing fixtures, similar to the flexibility of excavator vibratory plate compactor.

Start an Efficient Compaction Experience with YG’S Excavator Vibrating Plate Compactor

Still worrying about finding a compaction equipment that adapts to multiple scenarios and has stable performance? Excavator vibrating plate compactor is the answer! It covers operations on various terrains, from highways and railways to municipal water conservancy, from building construction to special working conditions, and can handle them all.

High-quality materials and imported core components make the equipment durable and reliable, reducing the trouble of failures. Whether you are an infrastructure engineering team or a municipal maintenance department, choosing it is definitely right.

Contact us now to get exclusive quotations and product manuals. Incorporate the efficient and worry-free excavator vibratory plate compactor into your construction equipment, making every compaction operation easy and excellent! In addition, YG also sells high-quality equipment such as pile breakers, wall saws, bucket clamps, and hydraulic breakers.【WhatsApp/WeChat/Phone】+86 13837122632
