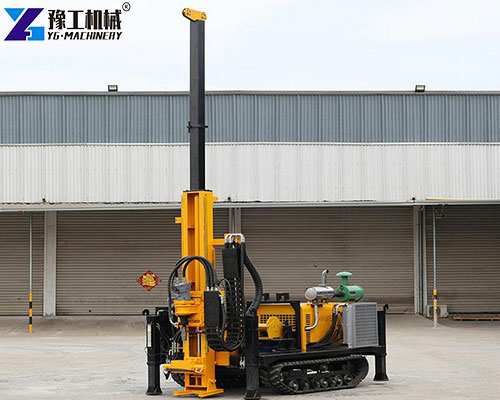

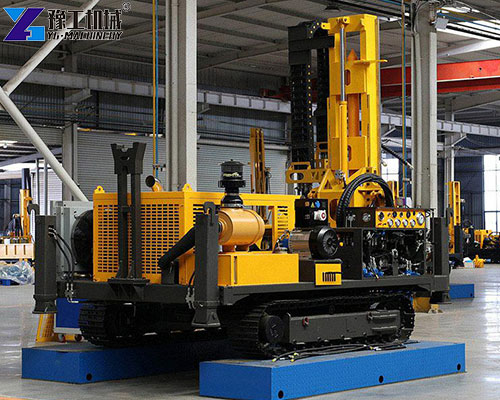

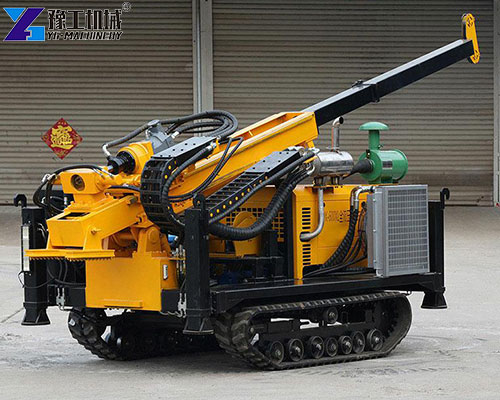

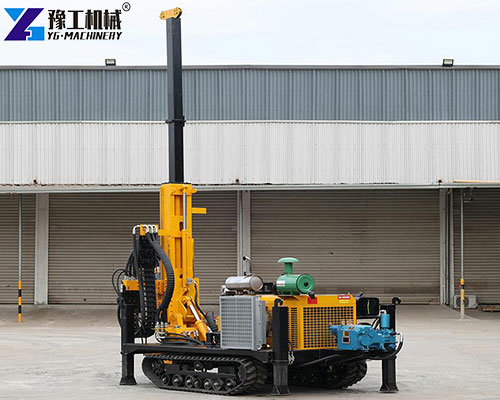

Hydraulic Crawler Drill Machine

The hydraulic crawler drill machine integrates advanced hydraulic technology, a tracked mobility system, and intelligent control, allowing it to easily handle various complex terrains and demanding working conditions. Whether in mineral resource exploration or infrastructure construction, it provides reliable technical support, ensuring smooth project implementation. In addition, YG also offers vertical core drilling machines and small water well drilling rigs that are hot-selling. Contact us for more product information!【WhatsApp/WeChat/Phone/Skype】+86 13837122632

Get a Free Quote

Hydraulic Crawler Drill Machine Parameters

Category	Parameters
Drilling Capability	Diameter: HTW-NTW-BTW; Depth: 900-1500-1800(M)
Hydraulic System	Rated Pressure: 28(MPA); Rated Flow: 400(L/min); Cooling: Air + Water

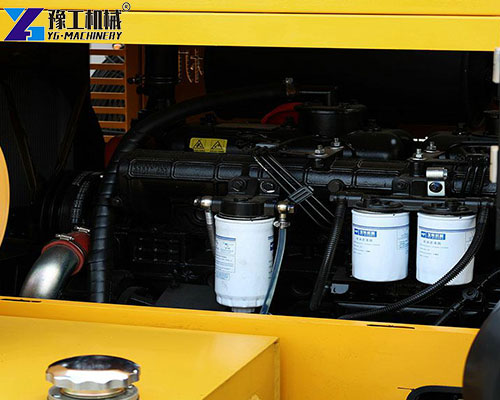

Engine	Brand: Cummins; Type: Turbocharged; Rated Speed: 2400(RPM); Rated Power: 194, 6-cylinder(KW)
Power Head	Torque: 1500-5000(N・M); Speed: 1300(RPM); Feed Stroke: 3500(MM)
Mast	Type: Ground-touch Integrated Mast; Drilling Angle: 45-90(°); Hoisting Force: 45(T); Feed Force: 20(T)
Winch	Hoisting Force: 1200(KG); Speed: 100-300(RPM); Cable Diameter: 6(MM); Rope Capacity: 1300(M)

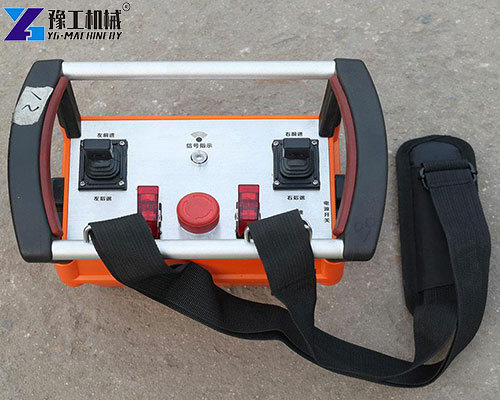

Travel	Type: Manual + Remote Control; Speed: 3.5(KM/H); Max Climbing Angle: 45(°)

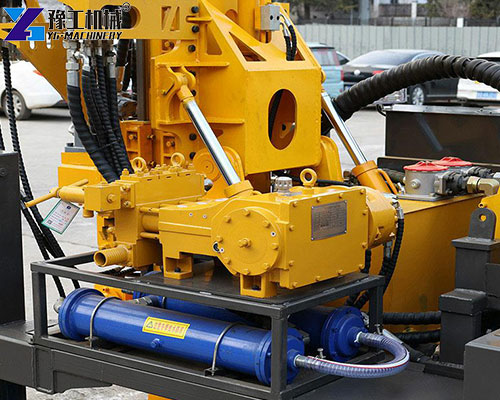

Hydraulic Mud Pump	Flow: 90-180(L/min); Pressure: 4-7(MPA)
Transport Size	600022002400(MM)
Total Weight	10.5(T)

Get a Free Quote

Advantages of Hydraulic Crawler Drill Machine

• Powerful Drive System: Equipped with a Cummins turbocharged engine delivering 194KW, ensuring the machine operates efficiently under harsh conditions. This is the significant advantage of the hydraulic crawler drill machine over traditional equipment.
• Advanced Hydraulic Technology: The hydraulic system with a rated pressure of 28MPA and flow of 400L/min, combined with air + water dual cooling, guarantees long-time operation without overheating, greatly improving work efficiency.
• Intelligent Travel Mechanism: The engineering tracked chassis with manual + remote dual operation provides excellent terrain adaptability, with a climbing angle up to 45°, ensuring stable mobility on complex sites.
• Reliable Power Head: The hydraulic power head provides adjustable torque from 1500-5000N・M, effectively preventing accidental rod disconnection and improving drilling safety.

Get a Free Quote

Application of Hydraulic Core Drilling Machine

• Mineral Resource Exploration: As a professional core drilling machine for mining, it can achieve drilling depths up to 1800 meters, meeting the demands of deep mineral exploration.
• Infrastructure Construction: Suitable for foundation exploration in railway, water conservancy, and other construction projects, providing accurate geological data for engineering design and construction.
• Geological Survey Research: In outdoor mountainous areas, the hydraulic core drilling machine demonstrates excellent adaptability and reliability for geological sampling and core drilling.
• Special Engineering Projects: Capable of efficiently completing small grouting holes and blasting holes, highlighting the versatile application value of the equipment.

Reasons to Choose YG Equipment

• Complete Specifications & Customization: Offers multiple core drilling rig models and can provide customized solutions according to client requirements, ensuring perfect project compatibility.
• Stable Supply & Quality Assurance: Strict production management and quality control systems guarantee on-time delivery and reliable performance to meet urgent project needs.
• Comprehensive After-Sales Service: Provides 24-hour support, ensuring timely technical assistance and maintenance during operation.
• Professional Technical Support: Experienced technical team provides full-process guidance from equipment selection to on-site commissioning.

Get a Free Quote

Global Customer Success Cases

• Colorado Mining Project, USA: In a mineral exploration project in Colorado, YG’s hydraulic crawler drill machine performed excellently in complex mountainous terrain, completing drilling tasks up to 1500 meters, providing accurate geological data for the client.
• Water Conservancy Project, Mexico: In a large water conservancy hub project in Mexico, this hydraulic core drilling machine successfully completed bedrock exploration work, and its stable performance and high efficiency were highly praised by the engineering team.
• Equipment Reliability Verified: These two international cases fully demonstrate the excellent adaptability and reliability of this core drilling machine for mining under different geological and climatic conditions.

With the continuous development of global engineering and resource exploration industries, the hydraulic crawler drill machine will continue to demonstrate its technical advantages and practical value. YG is committed to providing customers with the highest-quality core drilling rig equipment and comprehensive service support, helping them tackle complex engineering challenges. Choosing YG’s hydraulic core drilling machine is not only selecting a high-performance machine but also a professional, reliable, and successful engineering solution. We look forward to cooperating with more clients to promote the advancement of exploration technology.【WhatsApp/WeChat/Phone/Skype】+86 13837122632
