Quick Hitch Coupler for Sale

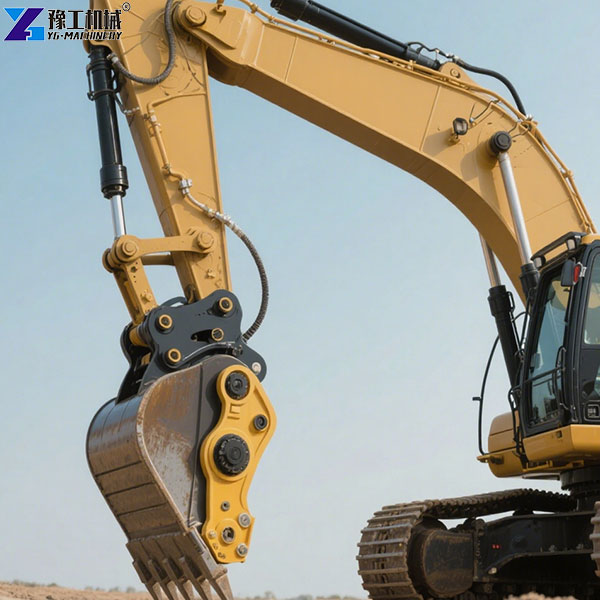

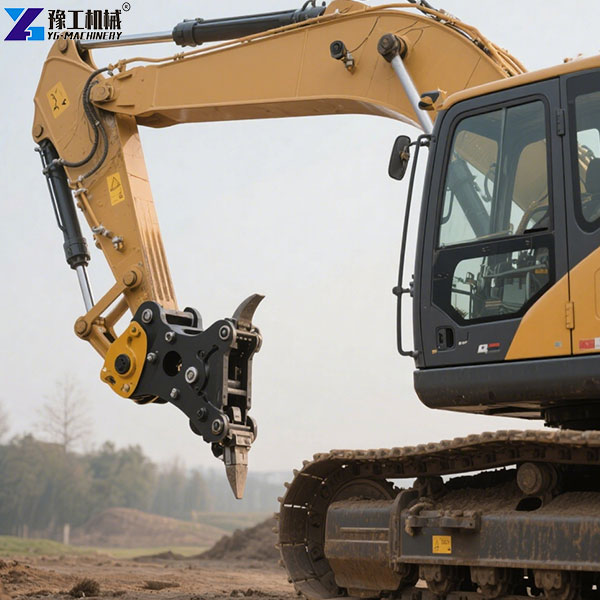

A quick hitch coupler is an efficient attachment – switching device for excavators. It helps excavators quickly install and switch various attachments like buckets, rippers, breakers, etc. It greatly shortens the attachment-changing time, speeds up project progress, and reduces the risk of operators frequently getting on and off the cab, improving safety. Whether for excavators of different brands or tonnages, the excavator quick attach can flexibly adapt. It uses imported solenoid valves and self-made cylinders to ensure product quality and service life, and is equipped with complete installation parts. To know the specific quotation and get the product manual, feel free to contact us!【WhatsApp/WeChat/Phone】+86 13837122632

Get a Free Quote

Product Parameters of Quick Hitch Coupler

The following are the core parameters of different models to help you select accurately:

Item/Model	Unit	YGMINI	YG45	YG50/55	YG60/65	YG70/80	YG90	YG100/110
Suitable Excavator	ton	1.5-4	4-7	5-8	9-19	17-23	23-30	33-45
Weight	kg	25	50-60	80	120-130	280-290	420-430	450-580
Length	mm	388	534-545	600	765	924-944	983-1050	1006-1473
Height	mm	246	307	310	388	492	574	558-610
Width	mm	175	258-263	270-280	353-436	449-483	543-568	606-663
Pin-to-Pin Center Distance	mm	80-150	230-270	290-360	380-420	460-480	473-540	550-620
Forearm Open Width	mm	80-140	155-170	180-200	232-315	306-340	375-411	416-469
Retractable Distance of Oil Cylinder	mm	170-206	205-275	340-450	340-486	256-390	413-590	520-590
Top-to-Bottom Pin Distance	mm	159	195	195	220	275	300	360
Pin Diameter	mm	25-40	45-50	50-55	60-70	70-80	80-90	90-120
Working Pressure	bar	32-40	32-40	32-40	32-40	32-40	32-40	32-40
Working Flow	Ipm	10-20	10-20	10-20	10-20	10-20	10-20	10-20

Get a Free Quote

Product Classification of Quick Hitch Coupler

• Hydraulic Quick Hitch:
  Controls the stroke length through the cylinder to achieve stepless adjustment of clamping and releasing. The operator doesn’t need to leave the cab and can directly control the replacement of the excavating device through the pilot valve, which is efficient and convenient. Oil supply pipelines and control pipelines need to be added for the first use. The hydraulic quick hitch is widely used in large-scale projects and can significantly improve work efficiency.
• Mechanical Quick Coupler:
  Controls the stroke through a screw or wedge to achieve stepped adjustment of clamping and releasing. Although manual operation is required and it is a bit troublesome to use, it can withstand large impact forces, no additional pipelines need to be added, and the structure is simple and reasonable. It is suitable for small and medium-sized projects sensitive to cost.

Product Features of Excavator Quick Attach

• Material Advantages: Made of Q345 manganese plate steel, with high strength and corrosion resistance; the pin shaft uses 42CrMo alloy steel, which has both high strength and good toughness.
• Component Quality: The cylinder uses a honed tube and is matched with imported HALLITE oil seals, with a short working cycle and long service life.
• Safety Design: The movable jaw circlip disc protection design and the thickened safety pin ensure safe and reliable operation, making the use of excavator hitch more reassuring.

Get a Free Quote

Purchase with Confidence, Efficient Operation Guarantee

Choosing the quick hitch coupler of YG Machinery, there is no need to worry about adaptability and quality issues. YG Company has a complete range of products to meet different operation needs. Moreover, we provide professional installation guidance and after-sales support, making the use of excavator hitch worry-free throughout. Purchase now to enjoy considerate services and preferential quotations, making the switching of excavator attachments efficient and safe, and helping the project progress smoothly! In addition, YG Machinery also has high-quality equipment such as rippers, crushing tongs, hydraulic breakers, hydraulic shears, wire saws, wall saws, etc., on hot sale.
