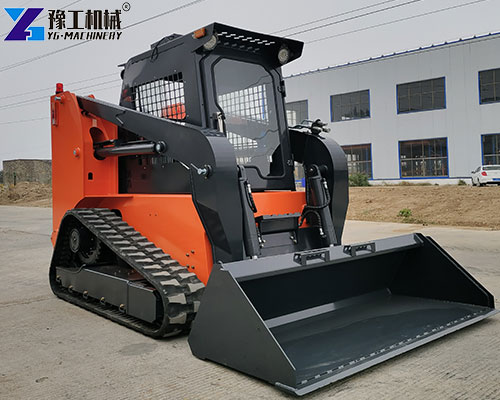

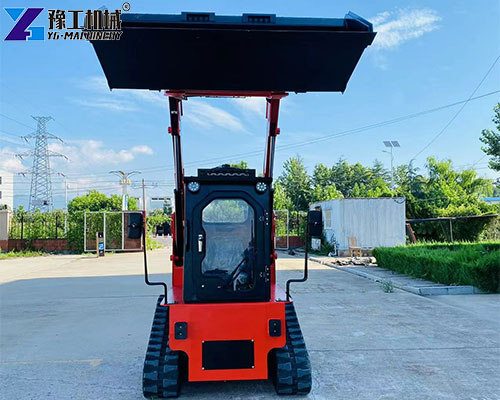

YG has launched four popular models of skid steer front loader—W45, W65, T50, and T65—that not only meet the demands of high-intensity operations but also ensure cost-effectiveness and durability. Whether working on narrow urban construction sites, factory workshops, or complex outdoor environments, these machines deliver reliable performance and excellent maneuverability. In addition, YG also offers lifting platforms, forklifts, boom lifts, and mini excavators for different project needs. Feel free to contact us anytime for an exclusive quote!【WhatsApp/WeChat/Phone】+86 13837122632
Skid Steer Front Loader Specifications
Model | W45 | W65 | T50 | T65 |
Operating load (kg) | 700 | 1050 | 700 | 1000 |
Max Speed (km/h) | 10 | 10 | 10 | 12 |
Rated flux (L/min) | 80 | 89 | 80 | 89 |
Rated power (Kw) | 36.7KW | 55KW | 45KW | 55KW |
Fuel tank capacity (L) | 70 | 75 | 50 | 90 |
Self weight bucket (kg) | 3766 | 4498 | 4074 | 5024 |
Bucket capacity (m³) | 0.4 | 0.5 | 0.4 | 0.5 |
Overall operating height (mm) | 3560 | 3850 | 3660 | 3900 |
Height to bucket hinge pin (mm) | 2765 | 3020 | 2730 | 2970 |
Height to top of cab (mm) | 2230 | 2295 | 2349 | 2409 |
Height to bottom of level bucket (mm) | 2909 | 2862 | 2500 | 2790 |
Without bucket length (mm) | 2325 | 2527 | 2170 | 2450 |
Overall length with bucket (mm) | 3276 | 3428 | 3150 | 3400 |
Dumping angle at maximum height (°) | 37.5 | 32 | 40 | 40 |
Dumping height (mm) | 2342 | 2410 | 1990 | 2270 |
Dumping reach (mm) | 550 | 850 | 1040 | 1120 |
Rollback on ground (°) | 20.5 | 23 | 30 | 30 |
Rollback at full height (°) | 96.5 | 95 | 100 | 100 |
Wheelbase (mm) | 991 | 1074 | 1230 | 1500 |
Ground clearance (mm) | 185 | 205 | 230 | 200 |
Angle of departure (°) | 20 | 20 | 18.5 | 18.5 |
Front turning radius without bucket (mm) | 1188 | 1320.5 | 1064 | 1230 |
Front turning radius (mm) | 2030 | 2095 | 1825 | 2010 |
Rear turning radius (mm) | 1630 | 1680 | 1264 | 1720 |
Rear axle to bumper (mm) | 929 | 1057 | 590 | 730 |
Tread width (mm) | 1462.5 | 1498 | 1022 | 1482 |
Width (mm) | 1726.5 | 1805 | 1422 | 1782 |
Bucket width (mm) | 1727 | 1828 | 1727 | 1828 |


Advantages of YG Skid Steer Front Loader
- Strong Power and Energy Efficiency
The YG mini loader skid steer is equipped with branded engines, ensuring powerful performance while maintaining low fuel consumption. Even under long-term, high-intensity working conditions, it can deliver continuous high efficiency, helping users save operational costs and achieve excellent value. - Smooth Operation with Hydraulic Assistance
Each machine is equipped with explosion-proof steel hydraulic hoses and an advanced hydraulic drive system, making operation smoother and more precise. Hydraulic assistance not only reduces operator labor intensity but also improves safety and comfort during operation. - Durable and Safe
The overall structure is built with thickened steel, providing high resistance to pressure and wear. Even in harsh working conditions and under heavy loads, the skid steer front loader can maintain stable performance. At the same time, it effectively replaces manual handling of heavy materials, reducing labor waste and lowering construction risks. - Comfortable Driving Experience
The cab is centrally positioned and designed with a wide view, combined with an air-conditioning system to provide operators with a comfortable working environment. This setup not only enhances safety but also reduces fatigue during long shifts.
Wheeled vs. Tracked Models
When choosing between a wheeled mini skid steer and a small tracked skid steer, the decision should be based on the actual working environment:

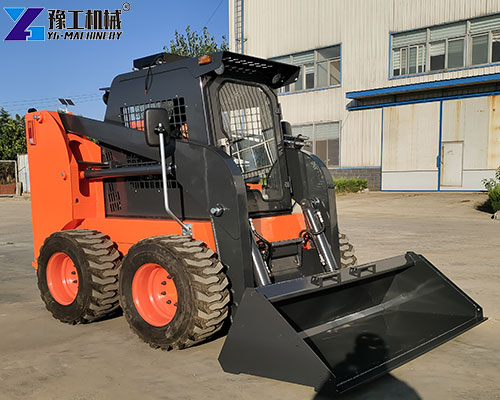

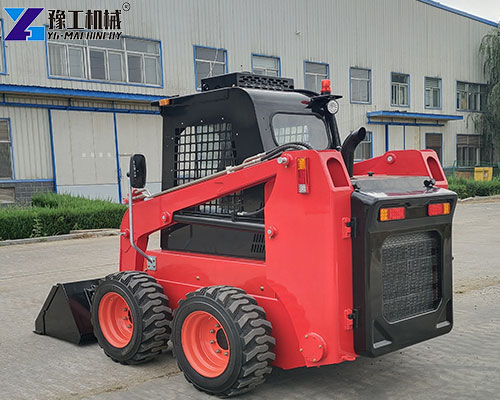

- wheeled mini skid steer: Ideal for paved or level surfaces, offering faster driving speeds, fuel efficiency, and the ability to complete loading and transport tasks quickly.
- small tracked skid steer: Better suited for rugged, muddy, or gravel terrains. The tracked system provides stronger traction and stability, ensuring superior performance in outdoor or irregular ground conditions.
This differentiated design ensures that no matter the working environment, users can find the most suitable machine.
Application Scenarios
- Construction Sites: Handling earthmoving, debris clearing, and material loading, significantly improving efficiency.
- Agriculture: Assisting with feed transport, barn cleaning, and field maintenance, reducing farmers’ workload.
- Municipal Sanitation: When equipped with sweepers or snowplows, it can perform road cleaning, snow removal, and seasonal maintenance tasks.
- Landscaping: With attachments such as screening buckets and tree movers, it efficiently handles soil transport and tree transplanting for landscaping projects.
With quick attachment replacement capability, the YG skid steer front loader truly achieves “multi-purpose in one machine,” ensuring flexible operations in different job scenarios.
Why Choose YG?
Choosing YG Machinery means choosing reliable quality and long-term value. As a direct manufacturer, YG not only provides affordable skid steer prices but also customizes power and configurations according to customer needs. At the same time, the company has a complete after-sales service system, ensuring worry-free use for every customer. Contact us today to get your exclusive discount!【WhatsApp/WeChat/Phone】+86 13837122632
