Small well drilling machine, a new-generation lightweight drilling equipment, completely shatters the bulky impression of traditional rigs. With its innovative modular design, it achieves three significant breakthroughs: ultra-compact size, rapid relocation efficiency, and user-friendly operation. The minimalist interface, coupled with intuitive visual guidance, enables novices to get started quickly. Contact us now for an exclusive quote on small water well drilling machines!
【WhatsApp/WeChat/Phone】+86 13837122632
Core Applications and Professional Maintenance of Small Water Well Drilling Machines

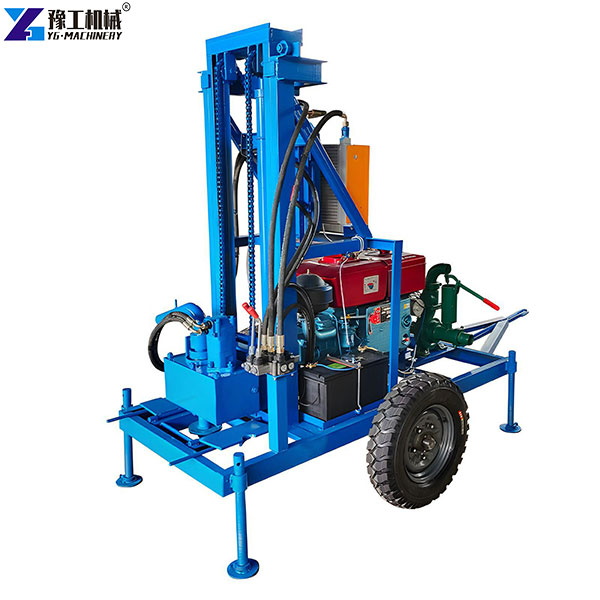

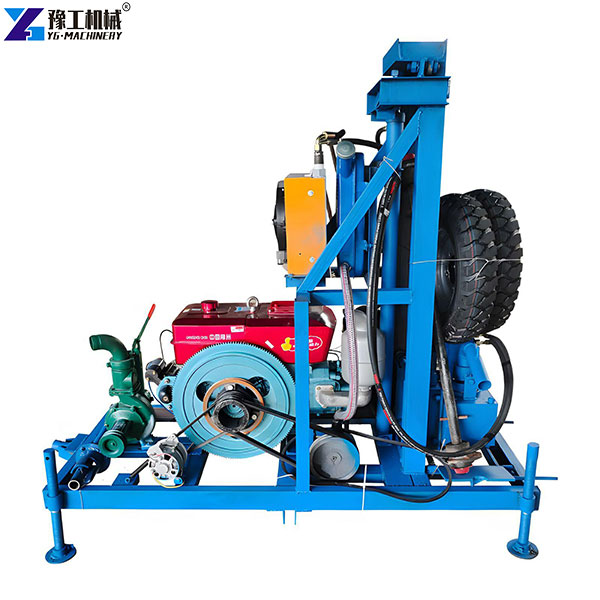

1. Hot-Selling Models Parameters of Small Well Drilling Machine
| Model | YG-240-22P | YG-240-30P |
| Dimension | 1450*1550*1970mm | 2000*1230*2090mm |
| Weight | 200kg | 200kg |
| Drill rod diameter | 42mm | 51mm |
| Drill rod length | 1.5m/unit | 1.5m/unit |
| Rod change method | Full automatic screw thread | Full automatic screw thread |
| Max drilling depth | 200m | 200m |
| Diesel engine power | 22HP | 30HP |
| Drilling hole diameter | Within 280mm | 100mm-240mm |
| Lifting height | 2.5m | Max 2.5m |
| Lifting force | 1000kg | 2000kg |
2. Daily Maintenance and Precautions
- Waterproof Management: The motor of the portable water drilling machine must be protected from direct rain and mud splashes. When storing outdoors, cover it tightly with a waterproof tarpaulin to avoid electrical short circuits that can damage the equipment.

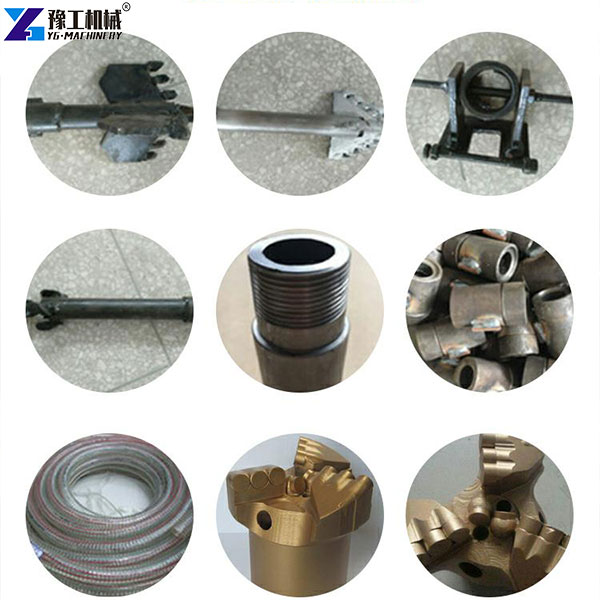

- Drill Pipe Maintenance: Apply special anti-rust oil to the thread interfaces of drill pipes before and after use. Store them on a waterproof stand to prevent rust formation, which can significantly reduce the connection strength and affect drilling performance.
- Operation Norms: Avoid overloading the motor for an extended period to prolong the lifespan of the drilling machine. Continuously monitor its temperature during operation and take immediate cooling measures if any abnormal heat is detected.
- Circuit Inspection: Regularly check all circuit connections and transformer fuses when the motor is powered off. This crucial inspection helps ensure that the portable water drilling machine starts smoothly and operates safely without electrical failures.
- Electrical Safety: Do not touch or connect motor wire connectors casually to prevent electric shock. Always disconnect the power supply before any maintenance work and entrust complex electrical operations to trained professionals.
3. Standardized Drilling Process
- Scientific Well Site Selection: Utilize the small well drilling machine’s integrated geological detection function to analyze the water table depth and subsurface structure accurately. This data-driven approach helps pinpoint the optimal location for a reliable, long-term water supply.
- Site Preparation and Excavation: Thoroughly clear the well site of debris and level the ground to ensure stable equipment operation. Excavate a designated reservoir area as required, providing ample space for equipment setup and efficient mud discharge.
- Equipment Power Debugging: Connect the power system with precision, then conduct a meticulous circuit inspection. Initiate the small well drilling machine for no-load testing, verifying that all components operate smoothly before actual use.
- Orderly Drill Pipe Replacement: Adapt to varying geological layers by systematically replacing drill pipe adapters. Drill in incremental stages while closely monitoring borehole quality to maintain drilling accuracy and efficiency.
- Safe Drill Pipe Unloading: Upon completion of drilling, carefully hoist and remove drill pipes and bits in a controlled manner. Store components properly to ensure seamless progression to well pipe installation and subsequent well washing procedures.
Choose YG’s Portable Well Drilling Rig for Sale: Full-Cycle Service Guarantee
Besides small well drilling machines, YG Machinery offers a full range of products, including crawler mounted water well drilling rigs, tractor mounted water well drilling rigs, trailer mounted water well drilling rigs, borehole drilling truck, core drilling machine for mining, full hydraulic core drilling rig, and full hydraulic rope coring drilling rig. For remote projects, we provide one-stop services of “equipment delivery + installation guidance + operation training” to ensure portable well drilling rig for sale is put into use quickly. Leave a message now to get a free geological survey report and customized drilling solutions!
