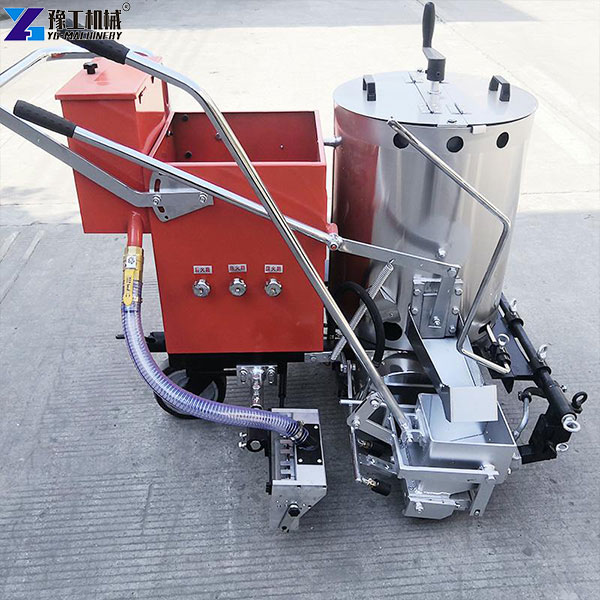

Thermoplastic paint machine serves as the core equipment for road marking construction, accurately completing line work for roads and parking lots. With stable heating and uniform coating performance, it adapts to urban roads, highways, and industrial zones. Whether for fast-forming thermoplastic markings or intricate pattern drawing, it delivers high efficiency. Interested in quotes for this line marking machine for sale? Contact us now to start collaboration!
【WhatsApp/WeChat/Phone】+86 13837122632

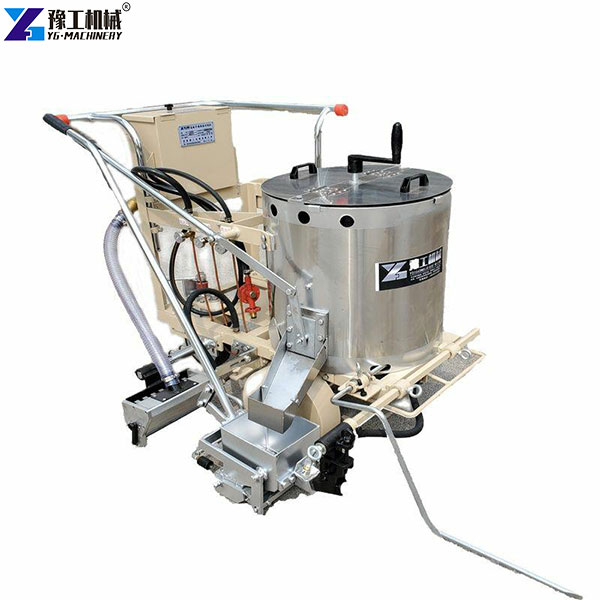

Road Marking Machine for Sale Parameter Analysis (YG-CK360S, YG-CK380S)
| Model | YG-CK360S | YG-CK380S |

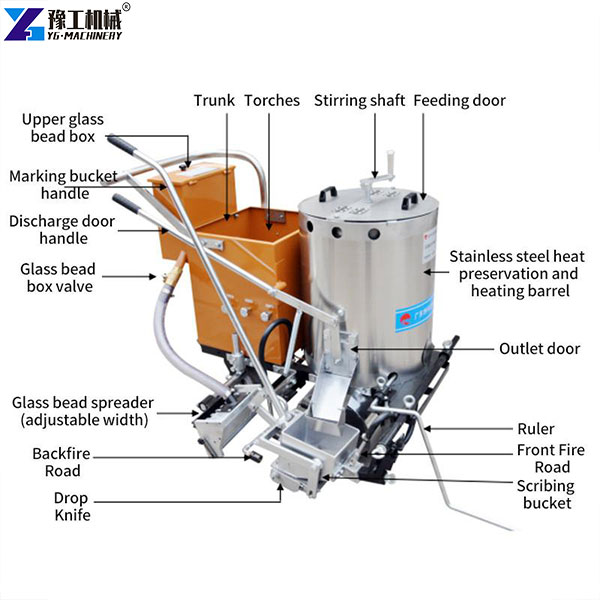

| Thermoplastic Tank | 100kg, double stainless steel heating insulation barrels, plug-in manual mixer devices, removable devices | 100kg, double stainless steel heating insulation barrels, plug-in manual mixer devices, removable devices |
| Glass Bead Container | 10kg/box | 10kg/box |
| Adjustable glass bead spreader | synchronous clutch spreading, equipped with a speed-adjustable gear shifting device, single/double spreading can be selected according to needs 50-200mm | synchronous clutch spreading, equipped with a speed-adjustable gear shifting device, single/double spreading can be selected according to needs 50-200mm |
| Rear Wheel Directional Device | Ensure the machine moving in a straight line or turning freely on the curved road | Ensure the machine moving in a straight line or turning freely on a curved road |
| Brake | Using a drum brake, you can adjust the brake tension | Using a drum brake, you can adjust the brake tension |
| Marking width | Standard 150mm marking bucket 100mm、150mm、200mm、250mm、300mm、400mm、450mm (at customers’ option) | Standard 150mm marking bucket 100mm、150mm、200mm、250mm、300mm、400mm、450mm (at customers’ option) |
| Battery Capacity | 15AH | 15AH |
| Battery Voltage | 48V lithium battery | 48V lithium battery |
| Driver Speed | 1-8km/hour | 1-8km/hour |
| Working Duration | The machine can mark road lines24 hours after charging the battery5 hours | The machine can mark road lines24 hours after charging the battery5 hours |
| Dimensions | 1210X970X1070mm | 1200X970X1100mm |
| Net weight | 130kg | 150kg |
Road Marking Paint Machine Working Principle
The road marking paint machine achieves marking through three steps:
- Melting: Solid thermoplastic paint is loaded into the hopper (e.g., YG’s dual stainless steel heated barrels), where built-in heaters quickly melt it into a uniform fluid at 180-220℃.
- Application: Using precise flow control and a marking bucket mold, the melted paint is extruded evenly at the set width and thickness. An adjustable glass bead spreader operates synchronously as needed.

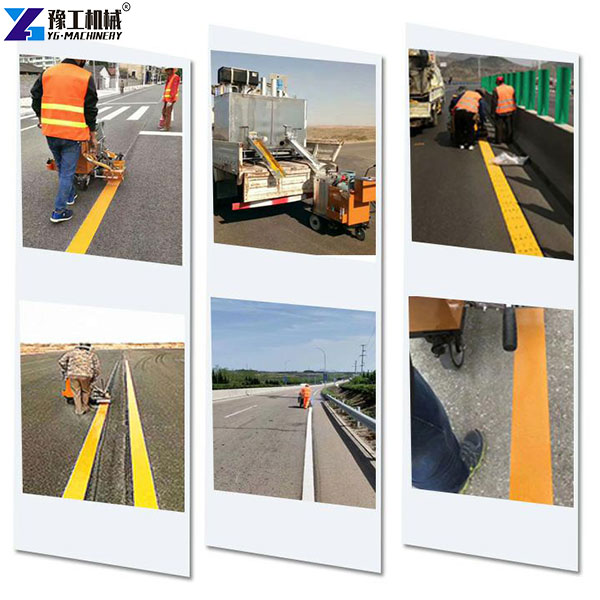

- Cooling & Setting: The paint solidifies rapidly upon contact with the road surface via ambient heat, forming highly adhesive and wear-resistant markings for long-term visibility.
Thermoplastic Paint Machine Usage Tips
- Stable Temperature & Pressure: Maintain consistent heat and pressure during operation to ensure even and smooth paint application.
- Preheating Protocol: Preheat the machine for 15-30 minutes until the hopper and coating system reach stable temperatures (meeting the paint’s melting threshold) to avoid clumping.
- Surface Preparation: Thoroughly clean the road surface of debris, oil, and water to ensure strong paint adhesion and prevent peeling or bubbling.
- Maintenance: Clean residual paint from the hopper and coating bucket immediately after use (hot cleaning is more effective). Regularly inspect heating elements and moving parts to extend the thermoplastic paint machine’s service life.

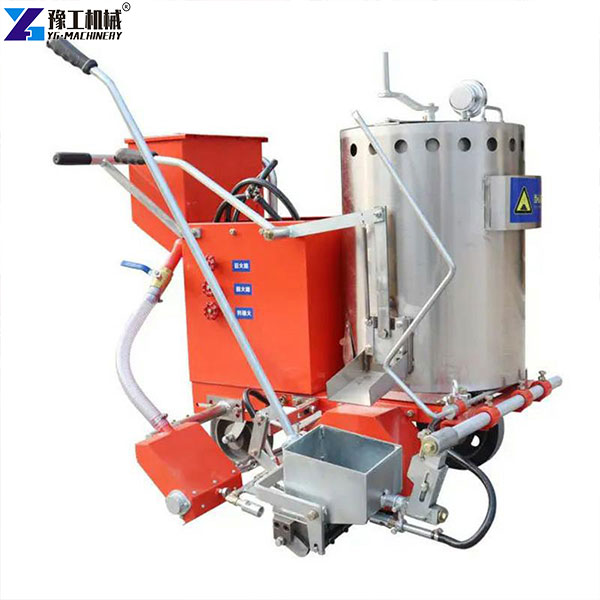

YG’s Line Marking Machine for Sale

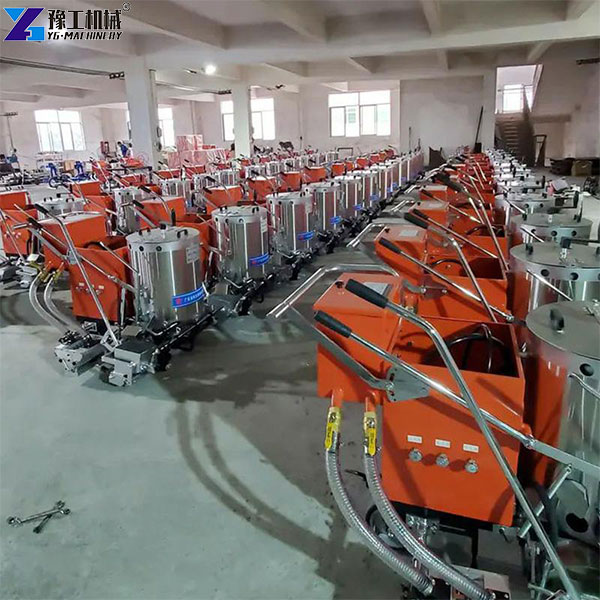

All thermoplastic paint machine models (YG-CK360S, YG-CK380S) undergo rigorous testing to ensure marking quality from heating to application. Whether for small-scale flexible projects or large highway marking tasks, their stable performance guarantees success. Ready to get a quote and streamline your marking projects? Contact our professional team today to unlock efficient road marking! YG also offers cold paint road marking machines, floor shot blasters, mini road rollers, asphalt crack fillers, floor scarifiers, floor grinder machines, concrete curb machines, asphalt recycling machines, asphalt spreaders, electric snow blowers, and more.
