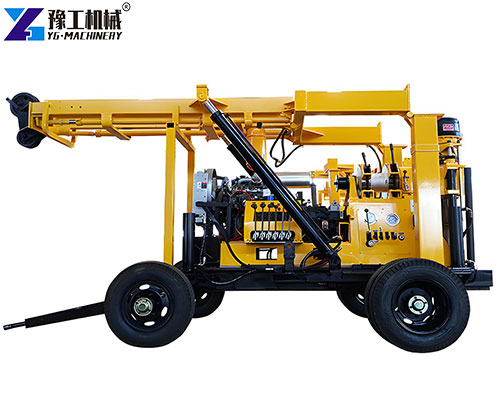

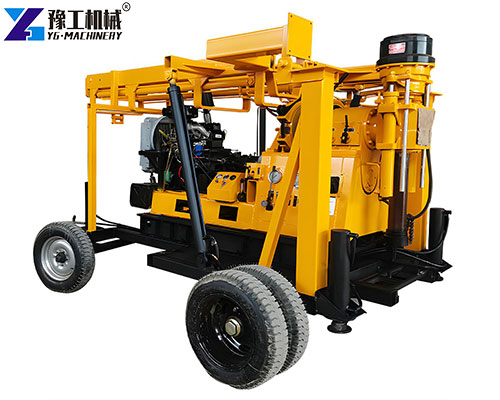

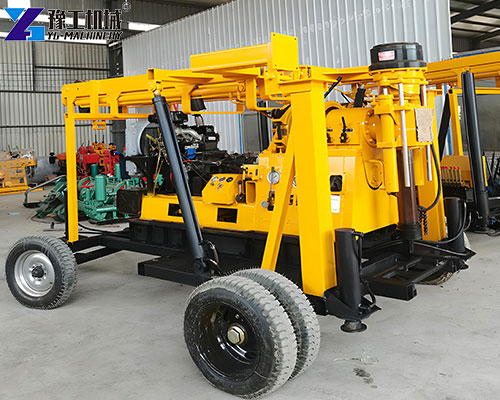

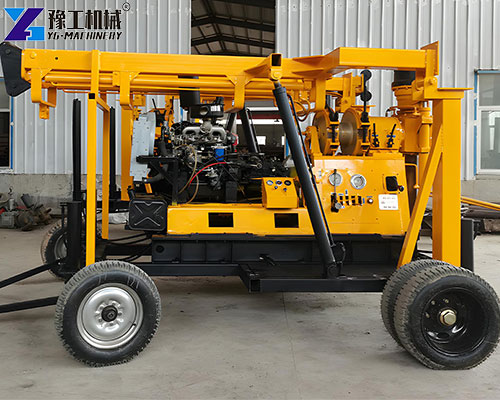

Trailer mounted drilling rig is an ideal device with high efficiency and flexibility in drilling operations. It balances mobility and stability, which traditional equipment struggles with. Its wheeled traveling mechanism allows easy movement across mountains, plains, and other terrains. Whether for shallow soil sampling or medium-deep rock drilling, its strong power and precise control handle tasks easily, greatly improving efficiency. If you need to purchase, contact us for a detailed quotation. We provide complete specifications with parameters and operation rules, ensuring a worry-free purchase.【WhatsApp/WeChat/Phone】+86 13837122632
Core Parameters of Trailer Mounted Drilling Rig
The following are detailed technical parameters of the model XYX-3, showing its performance intuitively:
| Technical Parameter | Model | XYX-3 |
| Drilling Depth (m) | 600 | |
| Open Hole Diameter (mm) | 325 | |
| Final Hole Diameter(mm) | 75 | |
| Drill Pipe Diameter(mm) | 60 | |
| Drill Pipe Inclination (°) | 90-75 | |
| Power (kW) | 13.2 | |
| Weight (kg) | 3600 | |
| Dimensions(mm) | 2900*2560*3300 | |
| Spindle | Speed(r/min) | 32-1057 |
| Stroke(mm) | 600 | |
| Winch | Max Pull Force(kg) | 3000 |
| Pull Speed(m/min) | 0.3-1.9 | |
| Rope Diameter(mm) | 12.5 | |
| Roll Capacity(m) | 65 | |
| Drill Mast | Rated Load(ton) | 18 |
| Height(m) | 6.5 | |
| Mud Pump | Mud Pump | BW-250 |
| Work Pressure | 80kg/cm² | |
| Displacement(L/min) | 250 | |
| Hose | Inlet Hose Diameter(mm) | 76 |
| Outlet Hose Diameter(mm) | 51 |
With these parameters, the equipment has strong power, providing solid support for long-term stable operation.
6 Distinctive Features of Core Drill Rig For Sale
- Easy movement and leveling: Adopts wheeled traveling mechanism and hydraulic cylinder supports, making the whole machine very easy to move. It also facilitates horizontal adjustment of the rig, adapting to different terrains.
- Reliable drill mast operation: The drill mast is hydraulically operated, which is not only convenient but also reliable, enhancing operational safety.
- Effort-saving startup: The diesel engine uses electric starting, greatly reducing workers’ labor intensity and making operation easier.
- Improved drilling efficiency: Equipped with a hydraulic automatic feeding mechanism, it effectively improves drilling efficiency and shortens operation time.
- Controllable hole conditions: A pressure gauge at the bottom of the hole displays real-time pressure, allowing operators to check internal conditions promptly and ensure smooth operation.
- Wide application scenarios: With diverse performance, it can be adapted to various operation scenarios and play a key role.
3 Product Advantages of Borehole Drilling Equipment
- Precise intelligent control: Equipped with an intelligent control system, it can monitor drilling parameters (such as speed, pressure, etc.) in real-time and automatically adjust operating status. Compared with traditional equipment, it avoids manual operation errors, achieving higher drilling accuracy. It is especially suitable for projects requiring high precision in hole position and diameter, reducing cost losses caused by human errors.
- Excellent energy-saving performance: The power system is optimally matched. While the 13.2kW power output stably meets operational needs, it reduces unnecessary energy consumption through reasonable power distribution. Long-term use can save enterprises a certain amount of fuel or electricity costs, meeting the actual needs of green construction and cost reduction with efficiency improvement.
- Durable wearing parts: Wearing parts such as drill pipes and bits are made of high-quality wear-resistant materials. Combined with the reasonable operating parameter design of the equipment, their service life is greatly extended. Compared with ordinary rigs that require frequent replacement of wearing parts, it reduces downtime for part replacement, improves overall construction efficiency and lowers the cost of purchasing accessories.
4 Application Scenarios of Trailer Mounted Drilling Rig
The following introduces the applications of core drill rig for sale by scenario, showing its adaptability:
- Geological exploration: In field geological survey projects, with a drilling depth of 600m and flexible drill pipe inclination adjustment (90-75°), it can accurately obtain core samples from different strata. It can operate stably in both shallow soil layers and rock layers at a certain depth, providing reliable data for geological analysis.
- Road construction: In foundation exploration before road construction, the 325mm opening diameter can meet the needs of large-scale drilling detection of road foundations. It can clearly grasp the soil structure and compactness of the foundation, helping judge whether the road foundation is stable and ensuring road construction quality.
- Building construction: In foundation exploration of high-rise buildings, the equipment can go deep underground. Combined with parameters such as the final hole diameter of 75mm, it obtains deep foundation cores to assist in evaluating foundation bearing capacity. Meanwhile, in concrete structure testing, it can accurately drill and sample building foundation concrete to check its internal quality.
- Water conservancy projects: In river embankment construction, it is used for grouting hole drilling and direct grouting. The equipment’s performance ensures drilling accuracy and grouting effect, strengthening the embankment. In civil engineering well construction, it can efficiently complete well drilling, meeting the needs of civil or engineering well construction.
Reliable Trailer Mounted Drilling Rig Supplier
The price of borehole drilling equipment is reasonable and transparent. YG eliminates hidden costs, allowing you to clearly understand every expense. The complete after-sales guarantee system can promptly solve problems encountered during use, ensuring a worry-free purchase. Whether for large-scale projects or small projects, this equipment can provide efficient and reliable drilling services. Welcome to contact us at any time to start a pleasant cooperation journey. In addition, YG also provides small borehole drilling machines, core drilling rigs, vehicle-mounted water well drilling rigs, and other high-quality equipment.【WhatsApp/WeChat/Phone】+86 13837122632
