20ft Portable Foldable House

In this era that values efficiency and flexibility, housing no longer requires heavy bricks and mortar. Portable foldable house adopts an innovative design that is both collapsible and movable, allowing living or working spaces to be set up anytime and anywhere. In addition to the 20ft foldable prefab house, YG Machinery also offers 30ft and 40ft models for selection—feel free to contact us for a customized quotation!【WhatsApp/WeChat/Phone】+86 13837122632

Get a Free Quote

20ft Portable Foldable House Parameters

20FT Basic Characteristics	External dimension (mm)	W6320*L5900*H2480(Side 2270)
	Internal dimension (mm)	W6160*L5560*H2240(Side 2150)
	Folded state (mm)	W2200*L5900*H2480
	Total mass (kg)	2500
30FT Basic Characteristics	External dimension (mm)	W6360*L9000*H2480(Side 2180)
	Internal dimension (mm)	W6200*L8660*H2240(Side 2060)
	Folded state (mm)	W2200*L9000*H2480
	Total mass (kg)	3750
40FT Basic Characteristics	External dimension (mm)	W6240*L11800*H2480(Side2180)
	Internal dimension (mm)	W6080*L11540*H2200(Side2060)
	Folded state (mm)	W2200*L11800*H2480
	Total mass (kg)	4400
Smaller Fold Size	External dimension (mm)	W4820*L5900*H2480(Side2270)
	Internal dimension (mm)	W4660*L5560*H2240(Side2150)
	Folded state (mm)	W700*L5900*H2480
	Total mass (kg)	1850

Get a Free Quote

Advantages of 20ft Portable Foldable House

• Engineering Innovation:
  The unique folding mechanism design allows the house to be unfolded or folded within 30 minutes, greatly improving operational efficiency. The structural connection points feature patented technology to ensure structural integrity even after multiple foldings.
• Outstanding Performance:
  It provides excellent thermal and insulation performance, and can be equipped with a fresh air system to create a comfortable indoor environment. A strict quality control system ensures precise component matching and extends service life.
• Value Realization:
  Compared with traditional buildings, the 20ft foldable prefab house features a shorter production cycle and lower transportation costs, delivering a higher return on investment for users. This innovative housing solution is redefining how modern people perceive and utilize space.

Structure and Materials

• Frame System:
  Using Q235 high-strength steel strips as the main framework, the structure is precisely engineered to maintain excellent stability when expanded and achieve the smallest possible volume when folded. This structural innovation gives the prefab container house for sale outstanding wind and seismic resistance.
• Wall Panel Technology:
  The standard configuration uses EPS (expanded polystyrene) sandwich panels, which have great insulation performance. Users can upgrade to 100mm thick panels or polyurethane boards to further improve energy efficiency. This material selection enables the foldable prefab house to reach a new level of comfort and energy saving.

Get a Free Quote

Functional Configuration

Basic Living System:
Each house is equipped with a complete set of doors, windows, kitchen, bathroom, and utility systems, achieving a true “ready-to-use” design. The standard setup includes a toilet, shower, kitchen counter, and electrical system to meet daily living needs.

Space Layout Options:

• Single Room Layout: Bedroom + Bathroom + Open Living Area
• Double Suite Layout: Two Bedrooms + Separate Wet and Dry Bathroom
• Studio Mode: Open Area + Functional Zoning Design

These flexible layouts enable the 20ft portable foldable house to adapt to diverse usage needs, making it suitable for both individual studios and family homes.

Application Scenarios

Urban Solutions:
As a construction site office, mobile security post, or urban service station, the compact size of the 20ft model makes it easy to install in various urban environments, effectively addressing temporary workspace demands.

Commercial and Creative Uses:

• Tourist Attractions: Used as boutique homestays or mobile retail shops
• Creative Parks: Ideal for independent studios or exhibition spaces
• Event Venues: Serves as temporary reception centers or service booths

Emergency Response System:
In disaster relief situations, the 20ft portable foldable house can be quickly deployed as a command center or medical aid station. Its compact size ensures maximum efficiency within limited spaces.

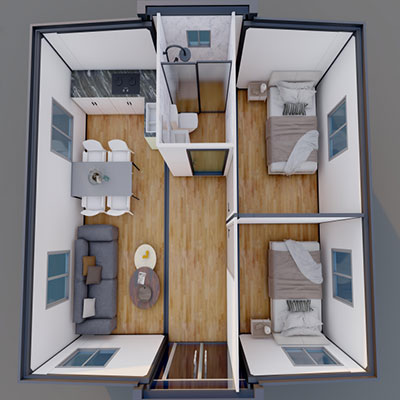

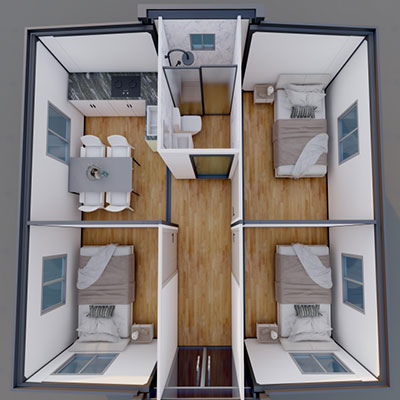

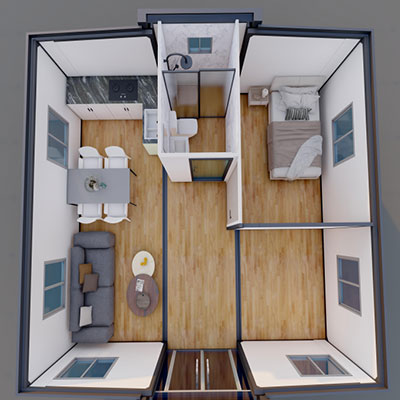

Three Typical Internal Layouts

Get a Free Quote

20ft Portable Foldable House Customization Services

Exterior Upgrades:
Optional sloped roofs, terraces, or glass curtain walls can be added. Windows can be upgraded to top-hung, floor-to-ceiling, or broken aluminum types for better appearance and performance.

Interior Finishes:

• Flooring System: Locking floors, anti-slip tiles, or marble finishes
• Kitchen Configuration: U-shaped cabinets with hanging cupboards
• Bathroom Upgrade: Dry-wet separation design with premium fixtures

These customization options ensure that each prefab container house for sale meets personalized user needs while highlighting the flexible nature of the prefab container house for sale.

A New Era of Space Utilization

The 20ft pre built shipping container house is not just a living space—it represents a new way of life. It perfectly integrates portability, comfort, and durability, providing a modern spatial solution for various applications. Whether used as temporary housing, workspace, or commercial venue, this innovative housing type meets your diverse needs. Feel free to contact us to learn how to incorporate the pre built shipping container house into your lifestyle or business projects.【WhatsApp/WeChat/Phone】+86 13837122632
