Cement plaster spray machine has become a key equipment to improve efficiency in the construction field. It uses automated spraying technology to evenly apply cement mortar on walls, floors, and other structures. Compared with traditional manual work, it greatly shortens construction periods and cuts costs. Whether you’re a large contractor or a small team, this equipment injects new energy into your projects. Want cement plaster spray machine price? Our professional team is online 24/7 to offer detailed quotes and customized solutions!【WhatsApp/WeChat/Phone】+86 13837122632
Core Models and Technical Parameters of Cement Mortar Spray Machine
Here’s a parameter comparison of two popular models to help you choose the right one:

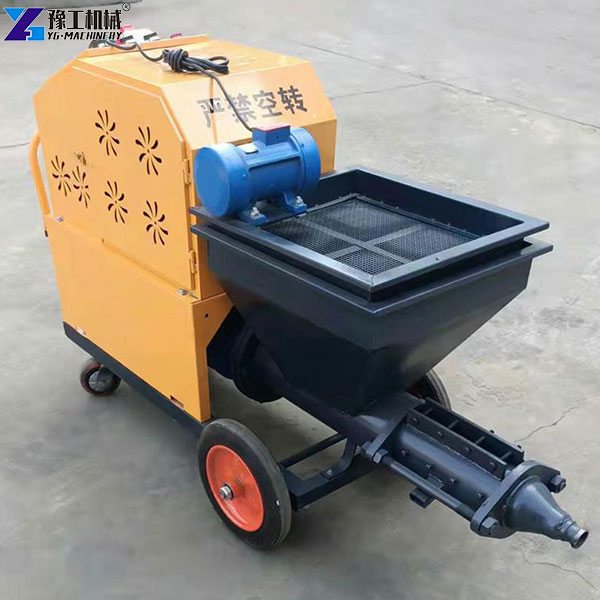

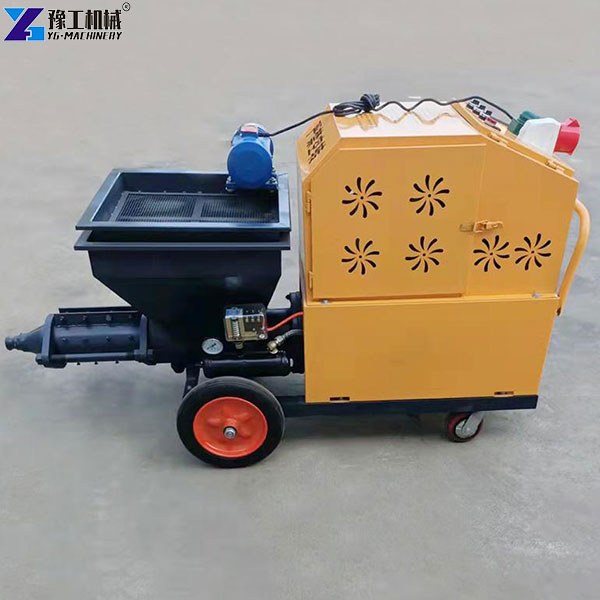

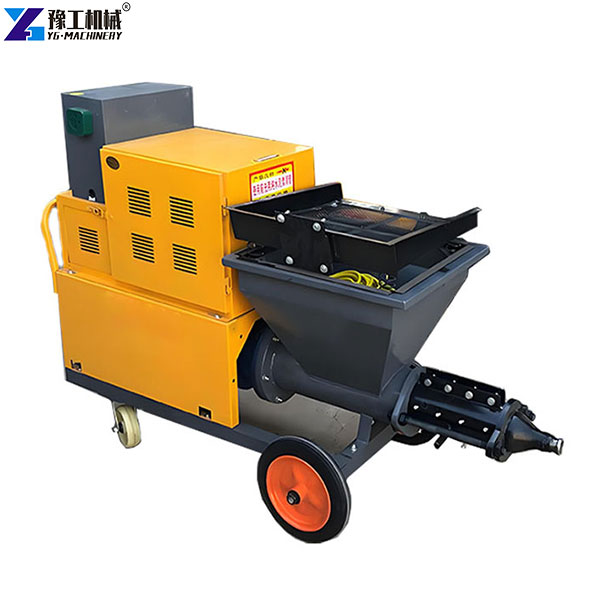

311 Multi-function Sprayer
| Parameter Item | Details |
| Overall Dimensions | 1500*450*800mm |
| Total Weight | 130kg |
| Cement – Sand Ratio | 1:3 (Cement: Sand) |
| Conveying Flow | 2 – 3m³/h |
| Working Pressure | 3 – 6mp |
| Spraying Speed | 150㎡/hour |
| Motor Power | 4kW |
| Air Pump Power | 2kW |
| Conveying Pipe | 32mm Inner Diameter |
| Max Aggregate Size | 3mm |
| Voltage | 220v/380v |
| Applicable Scope | Putty, Coating, Real – stone Paint, Mortar |

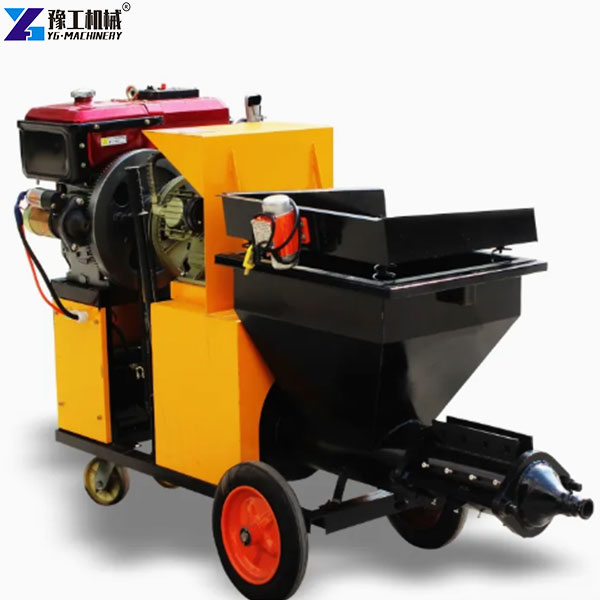

511 Diesel-powered Sprayer
| Parameter Item | Details |
| Conveying Flow | 3 – 4m³/h |
| Max Pressure | 3MPa |
| Applicable Material Ratio (Water, Cement, Sand) | 0.7—1:1:3 |
| Power | 8hp/12hp |
| Passable Particle Size | ≤8mm |
| Conveying Distance | Horizontal: 50 – 60m, Vertical: 30 – 40m |
| Hopper Volume | 80L |
| Air Compressor Displacement | 0.3m³/min |
| Feeding Pipe Inner Diameter | 32mm |
| Total Weight | 320kg |

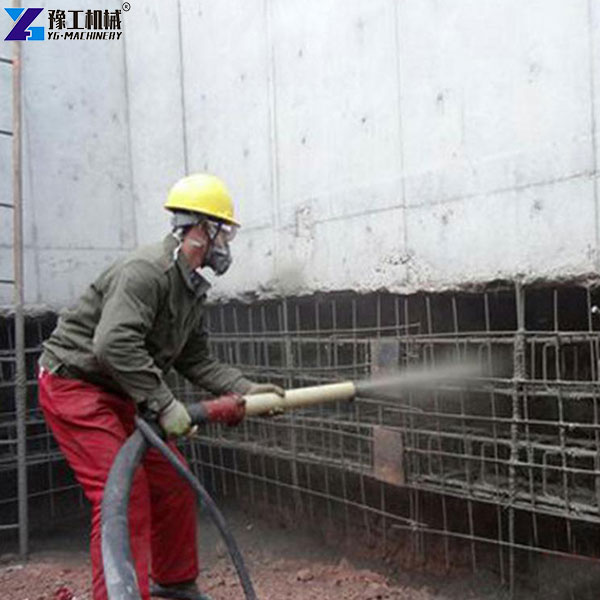

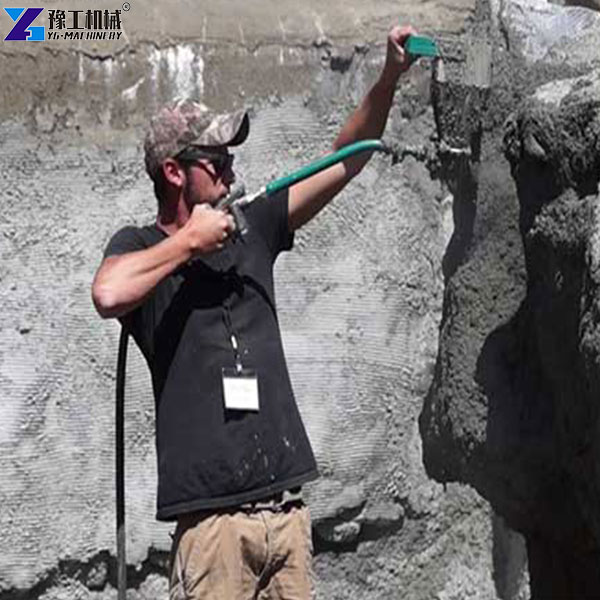

Application Scenarios and Sprayed Materials of Cement Plaster Spray Machine
1) Wide-ranging Uses
- Construction Projects: Interior/exterior wall plastering, floor spraying, foundation pit support.
- Renovation Projects: Gypsum mortar spraying, thermal insulation layer construction.

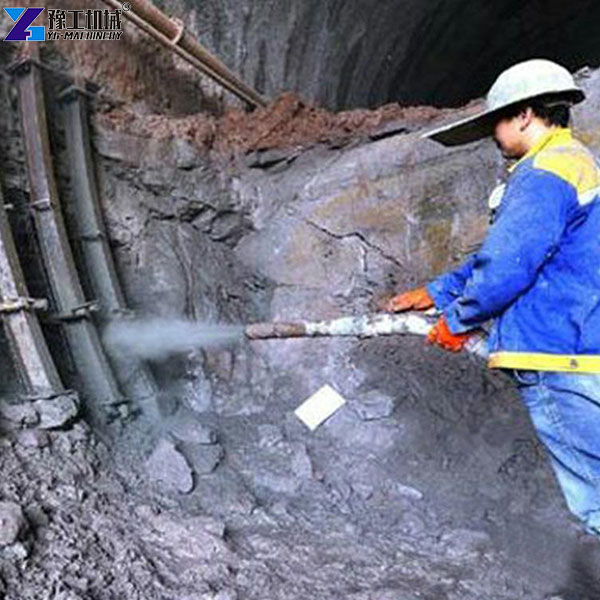

- Special Projects: Tunnel lining spraying, bridge anti-corrosion treatment.
2) Applicable Materials
- Ordinary cement mortar (different ratios for different models).
- Waterproof mortar, thermal insulation mortar, and anti-cracking mortar.
- Gypsum-based mortar, thin-layer plaster materials, putty, real stone paint, etc.
Seven Core Features of Cement Mortar Sprayer
- Precise Flow Adjustment: Freely adjust spraying flow via a knob to match different thickness and area needs for optimal results.
- Dual-control Operation: Besides the control box switch, it has a wireless remote control. Workers can start/stop spraying remotely (supported by some models), making it flexible and convenient.
- Flexible Connection Design: The spray gun and feeding pipe use a flexible interface. Adjust angles during operation to avoid pipe tangling and boost convenience.
- Efficient & High-quality Construction: For example, the 311 model achieves 150㎡/hour (under corresponding thickness conditions). The coating is even and dense, with strong adhesion, reducing hollowing and cracking.
- Portability Differences: The 311 model is compact (1500450800mm, 130kg) for easy on-site transport; the 511 diesel model has strong power for long-distance, outdoor (no power supply) work.
- Material, Labor & Cost Savings: Only 3 workers needed per machine, cutting 50% labor vs. traditional methods. Material utilization improves, saving long-term costs.
- Material Ratio Adaptation: Different models strictly follow cement mortar ratios (e.g., 311: cement: sand = 1:3; 511: water:cement: sand = 0.7—1:1:3), ensuring coating strength and stability, meeting industry standards.
Technical Advantages of Cement Plaster Spray Machine
- Multi-power Adaptation: Covers electric and diesel models, suiting various environments (with/without power, indoor/outdoor). The 511 diesel model is portable for multi-site work.
- Continuous & Stable Feeding: Uses proper pumping tech for pulse-free feeding, ensuring even spraying.
- Multi-function Practicality: Sprays not only cement mortar but also putty, real stone paint, etc., meeting plastering, masonry, and interface treatment needs.
- Flexible Operation: The spray gun and pipe connect at adjustable angles, handling complex areas like corners and ceilings easily.
Choose High-quality Cement Mortar Spray Machine for Worry-free Construction
YG’s cement plaster spray machine (311, 511, etc.) strictly follows industry standards. Core components use high-strength alloy materials and undergo testing before leaving the factory, ensuring stable performance. Whether for efficient work or flexible adaptation to materials and conditions, YG’s cement mortar sprayer reliably supports your projects. For more price details, contact us anytime—our professional team provides one-stop solutions!
Additionally, YG also sells mortar sprayers, fog cannons, industrial diesel generators, sand blasting machines, hydroseeding machines, portable container homes, and other products.
Contact us now!【WhatsApp/WeChat/Phone】+86 13837122632
