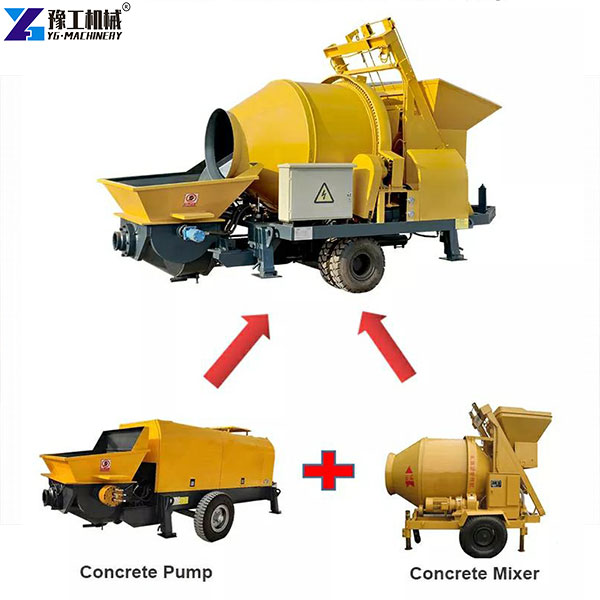

A concrete mixer pump for sale is an indispensable construction game-changer in modern construction. This machine integrates concrete mixing and conveying functions. Through an efficient mixing device, it quickly blends raw materials like cement, sand, and water into uniform concrete. Then, a powerful pump delivers the concrete precisely to the construction site, significantly improving efficiency and reducing labor and time costs. Wondering about the concrete mixer pump price? Contact us now for a detailed quote!
【WhatsApp/WeChat/Phone】+86 13837122632
Pump Mixer Concrete Technical Parameters
When searching for concrete mixer pump for sale in the market, technical parameters are key to measuring performance. Our product features excellent specifications, as shown below:
| Technical parameters | ||
| Maximum Theoretical Concrete Mixing | M³/h | 15 |
| Maximum Theoretical Concrete Output | M³/h | 30 or 40 |
| Theoretical maximum transmission distance | m | Vertical 50/Horizontal 200 |
| Distribution Valve Form | S valve | |
| Hopper Volume*Height | L*mm | 600×1080 |
| Pumping Motor Power | KW | 30 or 45 |
| Winch Motor Power | KW | 5.5 |
| Hydraulic Oil Form | open circuit | |
| Rated Speed | rpm | 1480 |
| Fuel Tank Capacity | L | 170 |
| Weight | kgs | 3500 |
| Concrete Delivery Pressure | Mpa | 6 |
| Concrete Cylinder Specification*Stroke | mm | φ180 * 800 or 200 * 800 |
| Spout Diameter | mm | φ180 |
| Mixing Motor Power | KW | 8 or 4 |
| Pump Motor Power | W | 550 |
| Maximum Aggregate Size | mm | Grait:40MM; Gravel:30MM |
| Voltage | V | 380 |
| Dimensions (L * W * H) | mm | 4200x2100x3300 |
Concrete Mixer Pump for Sale Distinct Advantages
Compared to traditional construction equipment, concrete mixer pump price offers obvious advantages:
- Strong Operational Continuity: By integrating mixing and conveying, the pump minimizes material loss during transfer, significantly enhancing construction efficiency. With a 15 M³/h mixing capacity and 30/40 M³/h output, it ensures a seamless workflow and steady concrete supply for continuous project progress.
- High Site Adaptability: Its compact design (4200×2100×3300 mm) enables effortless maneuvering in narrow spaces, while flexible transportation allows quick relocation between sites, making it highly versatile for various construction environments, from urban job sites to rural areas.
- Low Operation Threshold: The intelligent control system simplifies operation, allowing novices to become proficient with minimal training. This not only reduces labor costs but also ensures consistent, efficient performance even for operators with limited experience.
Application Scenarios of Concrete Mixer and Pump
Pump mixer concrete excels in various construction projects:
- Rural Home Construction: At 3500 kgs, its lightweight and agile design allows seamless navigation of rural roads and confined spaces, delivering high-quality concrete to small-scale, scattered home projects. Perfect for rural environments, it ensures efficient material supply for diverse construction needs with ease.
- Urban High-Rise Pouring: Featuring a 50m vertical delivery capacity, the pump enables precise concrete placement in high-rise buildings, ensuring uniform floor pouring and timely progress. Its reliability minimizes delays, enhancing efficiency for urban skyscraper projects with strict structural and timeline demands.
- Large Infrastructure (Bridges/Tunnels): In complex projects like bridges and tunnels, the pump’s robust 15 M³/h mixing and 30/40 M³/h conveying capabilities provide stable, high-quality concrete supply. It meets rigorous industry standards for durability, ensuring consistent performance in challenging terrains and safeguarding long-term structural integrity.
Concrete Mixer Pump for Sale by YG Machinery
YG Machinery maintains strict quality control from R&D to production, ensuring every device operates stably and efficiently. Choose high-quality concrete mixer and pump at competitive prices—contact us today to start your worry-free construction journey! YG also offers mini concrete pumps, concrete batch plants, micro excavators, mortar sprayers, fog cannons, industrial diesel generators, sand blasting machines, shotcrete machines, wet shotcrete machines, and more.
【WhatsApp/WeChat/Phone】+86 13837122632
