In modern road and municipal engineering, the efficiency and quality of kerb construction directly determine the overall progress and lifespan of a project. With the development of automation and mechanization, more and more construction units are paying attention to kerb machine for sale, especially high-performance crawler slipform machines. Among them, the YG-30 crawler kerb machine has become an ideal choice in the road construction field with its stable performance and patented innovative technology. Contact us today for a tailored quotation and comprehensive service! In addition, YG Machinery also offers the YG-20 wheeled slipform kerb machine for your selection.【WhatsApp/WeChat/Phone】+86 13837122632

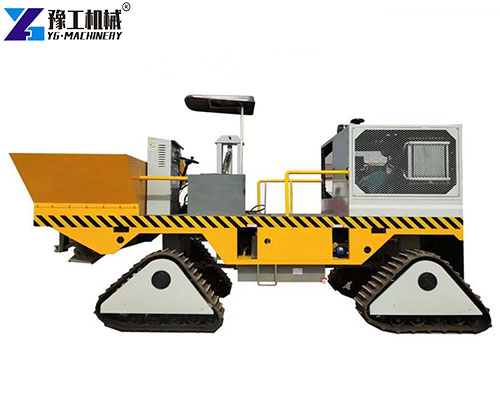

YG-30 Kerb Machine for Sale–Technical Specifications
Parameter
YG-30
Type
Crawler portable
Steering System
Automatic steering system
Engine Power
65 kW
Kerb Size
Height ≤ 1100mm, Width ≤ 2000mm
Forming Method
High-frequency vibrator + additional vibration motor
Minimum Turning Radius
6800mm
Paving Speed
1—10 m/min
Hopper Capacity
1 m³
Dimensions
5200×2400×2800mm
Machine Weight
7000 kg
Advantages and Selling Points of the YG-30 Kerb Machine for Sale
1. Four-crawler chassis with strong grip The YG-30 is equipped with a 400mm wide crawler chassis, providing excellent traction. It not only ensures paving flatness but also adapts to complex terrains, enhancing construction stability.
2. Exclusive dual automatic steering system Unlike ordinary machines with a single automatic steering system, the YG-30 adopts a dual automatic steering system, reducing curve construction deviation by more than 95%. This ensures road width accuracy, improves construction precision, and minimizes rework and material waste.
3. Anti-sliding self-locking function During operation, whether uphill or downhill, the machine maintains its preset walking speed without the need for manual braking. This not only boosts efficiency but also eliminates potential safety risks.
4. Wider mold lateral movement The mold support uses three reinforced guide rails with a lateral travel range of up to 1200mm, enabling construction of wider kerb sizes and improving flexibility for diverse projects.
5. Powerful engine with full-time 4WD Equipped with a turbocharged four-cylinder diesel engine and full-time four-wheel drive, the YG-30 can easily push a mixer truck even on slopes with less than 5% gradient. Power loss at high altitudes is significantly reduced.
6. High-efficiency feeding system The spiral feeder is driven by a high-torque hydraulic motor, ensuring faster feeding with less material jamming. The blade edges are coated with wear-resistant material, extending service life and reducing long-term maintenance costs.
Why Choose the YG-30 Crawler Slipform Machine?
Among many concrete kerbing machine options and curb and gutter machine for sale, the YG-30 stands out with its unique design and powerful drive system. It is suitable not only for municipal roads but also for highways, industrial parks, and pedestrian walkways.
As a high-performance slipform kerb machine, the YG-30 reduces dependence on manual labor, increases construction automation, and saves both time and cost for contractors and construction companies.

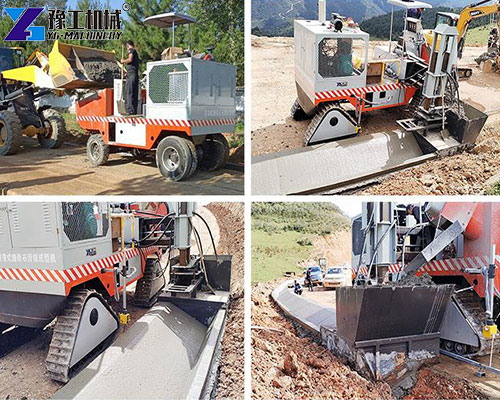

Application Case – Road Construction Project in Romania
In a municipal road reconstruction project in Bucharest, Romania, the local construction company introduced the YG-30 crawler slipform kerb machine. The project required the completion of more than 12 kilometers of kerb construction within a short period, and the site included multiple curves and slopes.
The YG-30’s dual automatic steering system minimized deviations during curved construction, significantly improving accuracy. At the same time, its four-crawler chassis performed excellently in complex conditions, ensuring stable operation on slopes and slippery surfaces. As a result, the project was completed 15 days ahead of schedule, with construction efficiency improved by more than 30%, earning high praise from both the client and the contractor.
Cooperate with YG Machinery
If you are looking for a kerb machine for sale that is reliable, easy to operate, and significantly improves construction efficiency, the YG-30 crawler slipform kerb machine is undoubtedly a smart investment. With its four-crawler chassis, dual automatic steering system, and robust power configuration, it meets the demands of different projects while ensuring accuracy and safety in kerb construction.
Choosing YG-30 means choosing higher construction quality and greater return on investment.【WhatsApp/WeChat/Phone】+86 13837122632
