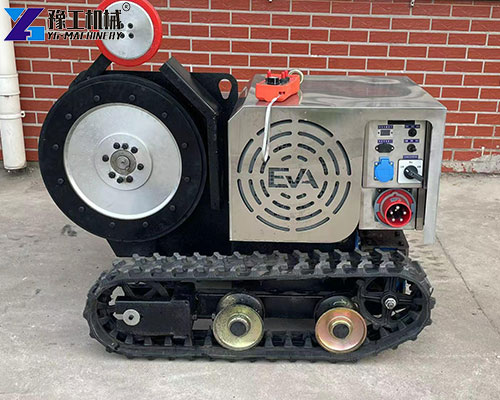

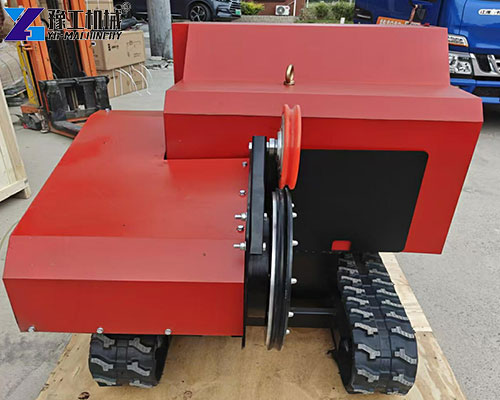

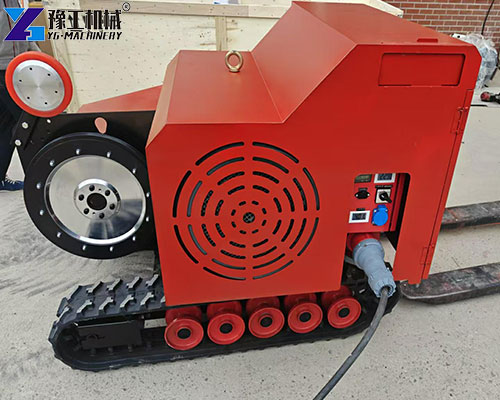

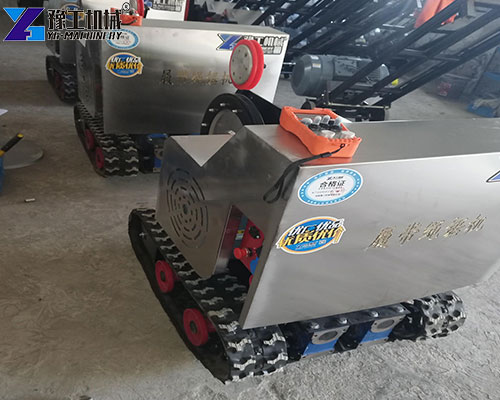

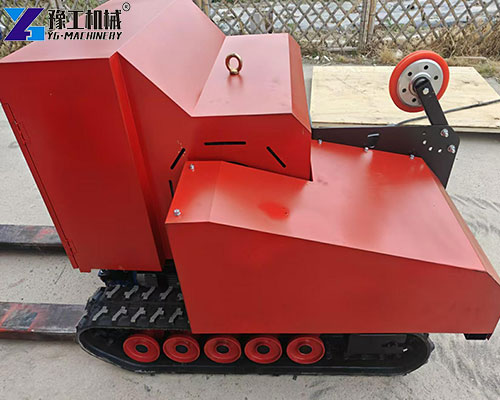

The crawler type wire cutting saw is a professional static cutting machine engineered for tough and complex concrete demolition & modification projects. Equipped with a tracked chassis and high-power diamond wire drive system, it delivers outstanding mobility and consistent cutting power on challenging job sites. It solves common pain points of conventional wire saws: limited movement, cumbersome cable arrangement, unstable operation on uneven ground, and restrictions on long-distance cutting.
Cutting Wire Saw Parameters
| Parameter | Specification |
| Model | YG220 |
| Motor Power | 22KW |
| Wire Collection | Crawler walking, unlimited wire |
| Walking Method | Battery-powered walking |
| Machine Weight | 430kg |
| Machine Dimensions | L120cm × W70cm × H95cm |
| Power Supply | 380V |
| Speed | 1000 RPM |
| Torque | 230 Nm |
How Does the Crawler Type Wire Cutting Saw Work?
The 380V main motor drives the driving wheel to circulate the diamond wire embedded with diamond segments. The wire grinds and cuts reinforced concrete under tension. Meanwhile, the battery crawler chassis follows the cutting path automatically and feeds the wire steadily. Water cooling continuously flushes cutting dust and reduces heat on the diamond wire, extending wire service life. The whole process realizes continuous, stable concrete cutting.


5 Benefits of Crawler Type Wire Cutting Saw
High Cutting Efficiency & Powerful Performance
Faster cutting output than traditional concrete cutting equipment. This diamond wire saw for concrete runs on a 22kW heavy-duty main motor, paired with a 1000 RPM rated speed and 230 Nm high torque to drive the diamond wire through reinforced concrete efficiently. It handles thick concrete walls, large piers, and heavy columns smoothly. Compared with small conventional cutting machines, its working efficiency rises by over 30%, which greatly shortens project schedules and reduces construction downtime.
Battery-Powered Crawler Travel, Great Site Adaptability
The crawler travel system runs on battery power, separate from the 380V power supply for the cutting motor. It gets rid of messy power cords for machine relocation. Operators can freely reposition the saw across the job site. It works well for multi-point cutting tasks on large open sites, even where temporary power outlets are scarce.
The unit supports automatic battery charging. Once battery capacity falls below the preset threshold, the charging system activates automatically. It avoids frequent manual plug-in operations and prevents unexpected stops caused by dead batteries during machine relocation, supporting continuous construction.
Flexible Wire Feeding & Stepless Speed Regulation
The crawler follow-up wire feeding design removes the length limit from the built-in reel. For cutting long-span beams, large concrete blocks, or oversized structures, you do not need to reposition the machine repeatedly. The diamond wire can be fed and retracted smoothly to finish the whole cutting pass.
Stepless speed control is available for the wire feeding system. Operators can adjust wire speed to match different cutting phases: low speed for stable initial kerf formation, and higher speed for stable cutting sections to maximize productivity.
Compact & Stable Structure for Narrow Spaces
At only 430 kg with compact outer dimensions (L120 cm × W70 cm × H95 cm), this crawler diamond rope saw is easy to transport. It can be moved via construction elevators to upper floors and maneuvered inside narrow indoor working areas, lowering handling labor costs.
The tracked chassis provides reliable support on rough ground. It stays stable on gravel, uneven foundations, and potholed sites. Vibration and shaking are minimized to maintain cutting precision and guarantee construction quality.
Static Cutting, Low Vibration & Safe Operation
This is a static diamond wire cutting solution. It works without impact blasting or heavy hammer breaking. Low vibration and low noise bring minimal disturbance to the retained structure and surrounding buildings. It is a safe choice for renovation projects where nearby structures need to be protected, and it also helps control dust when equipped with standard water cooling.


Get Quote for Crawler Diamond Wire Saw
Typical Application Scenarios
The crawler cutting wire saw is widely adopted for precision concrete demolition and structural modification. Typical applications include:
- Reinforced concrete wall & slab cutting for building renovation
- Bridge pier, beam, and foundation cutting
- Tunnel modification and concrete structure removal
- Heavy concrete block cutting in quarry and precast yard
- Projects requiring low vibration and protection of adjacent structures
It helps construction teams cut accurately, reduce labor intensity, and control project timelines, delivering reliable cutting performance for various controlled demolition jobs.
FAQs about Crawler Type Wire Cutting Saw
Q1: Can this crawler type wire cutting saw cut heavily reinforced concrete?
A1: Yes. The 22kW high-torque drive system is suitable for cutting standard reinforced concrete. Matching quality diamond wire is recommended for better results.
Q2: Does the battery support the cutting power?
A2: No. The battery only supplies power for crawler movement. The cutting motor needs a 380V three-phase power supply.
Q3: What size diamond wire fits the YG220 model?
A3: It supports diamond wire from Φ8 mm to Φ11 mm.
Q4: Is water cooling required during cutting?
A4: Yes. Water cooling is mandatory to cool the wire and suppress dust.
Discuss Your Project with Crawler Diamond Wire Saw
Get Your Custom Quote
If you are looking for a reliable crawler diamond rope saw for your concrete cutting projects, send us your cutting requirements to get a tailored quotation.
For other concrete cutting tools, YG Machinery also supplies high-frequency wall saws, hydraulic wall saws, and so on.
