Diamond Wire Cutting Machine

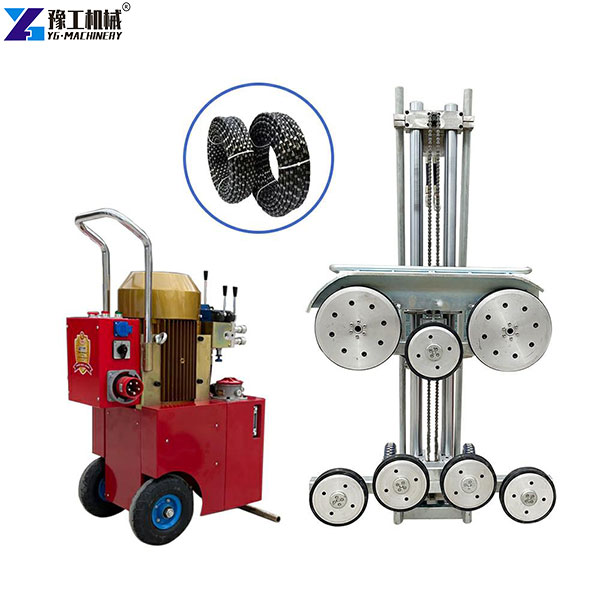

diamond wire saw for concrete
diamond wire saw for concrete

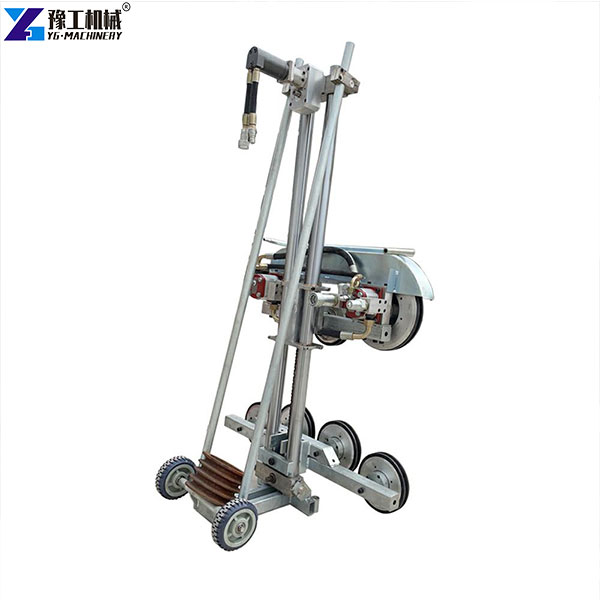

high quality wire saw cutting machine
high quality wire saw cutting machine

A diamond wire cutting machine stands out in complex projects like mine extraction, stone processing, and concrete demolition, thanks to its powerful cutting capability. Designed for scenarios such as quarrying rough stone, precision machining of curved slabs, and bridge road demolition, this tool offers easy installation, flexible operation, and supports horizontal/vertical cutting. Classified into electric and hydraulic concrete wire saws by power source, it meets varied engineering needs. Curious about configurations or diamond wire saw price? Contact us now !

【WhatsApp/WeChat/Phone】+86 13837122632

Get a Free Quote

Wire Saw Cutting Machine Parameters

Wire saw frame parameters

ItemSpecification
Motor quantity2 pcs
Cutting speed5 m²/h
Max wire storage12 m
Wheels quantity7 pcs
Feeding methodautomatic hydraulic
Weight110 kg
Dimension (LWH)10507002100 mm

Hydraulic pump station parameters

ItemSpecification
Power25 kw
Working voltage380v, 50hz, 3phase
Motor cooling methodAir cooling
Working speed1300 r/min
Max pressure210 bar/21 Mpa
Oil flow rate3000 RPM
Weight118 kg
Dimension500 mm*520 mm*1100 mm
Hydraulic oil model46#/48#

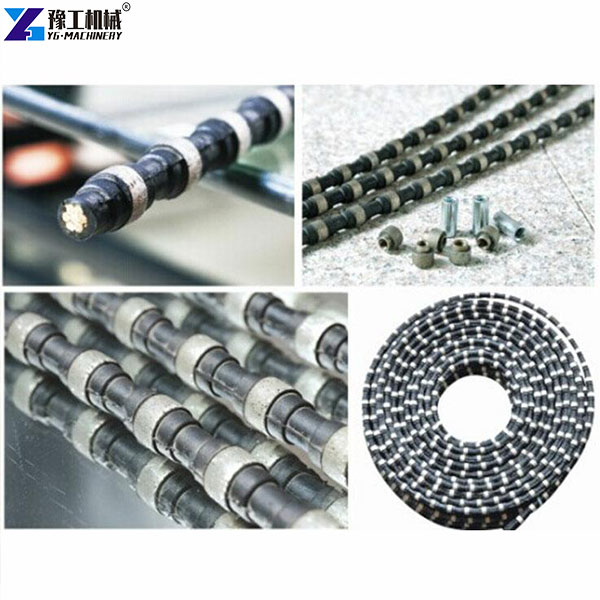

diamond wire cutting machine details
diamond wire cutting machine details

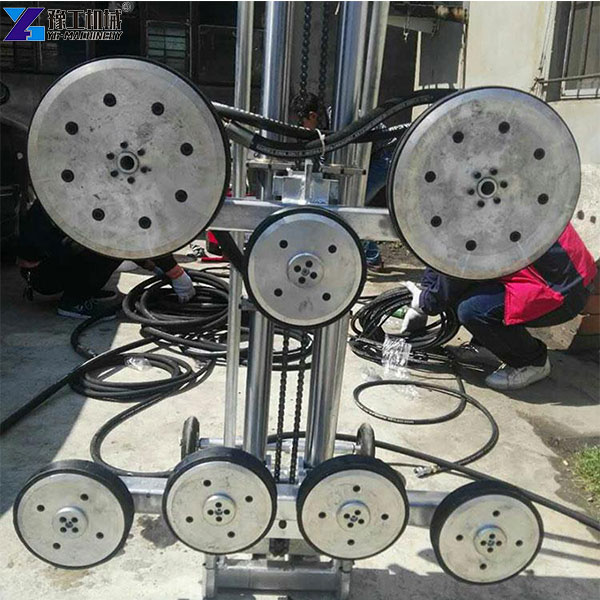

diamond wire cutting machine supplier
diamond wire cutting machine supplier

Get a Free Quote

6 Advantages of YG Diamond Wire Cutting Machine

  • Stable cutting efficiency up to 5 m²/h for reinforced concrete, supporting continuous long-hour cutting and greatly shortening project cycles.
  • Low-noise static cutting below 80 dB(A), far quieter than breaker hammers; nearly zero impact vibration to protect adjacent retained structures.
  • Precision cutting tolerance within ±2 mm, delivering flat cut surfaces and cutting down secondary finishing workload.
  • Virtually unlimited cutting depth, capable of handling thick reinforced concrete and large rock blocks beyond the reach of wall saws.
  • Flexible multi-direction cutting: horizontal, vertical, and angled cutting available to adapt to complex structural shapes and curved profiling.
  • Water-cooled cutting suppresses dust by over 90%, meeting strict urban jobsite environmental and safety requirements.

Why Choose a Diamond Wire Cutting Machine for Your Project?

Using a diamond wire cutting machine delivers unique project-level benefits compared with blasting, breakers, and wall saws:

  • Low vibration & low noise, no heavy impact, protecting adjacent structures that need to stay intact.
  • Allowed on sites where blasting or impact demolition is forbidden, such as urban areas and waterfront projects.
  • Flexible diamond wire supports thick, large, and curved cutting that rigid cutting tools cannot achieve.
  • Controlled cutting reduces random cracks and construction waste, simplifying debris clearance.
  • Helps contractors meet local construction safety and environmental requirements.

Tell Us Your Cutting Requirements

How to Select a Suitable Diamond Wire Cutting Machine?

  1. Identify cutting material and section size. Hydraulic diamond wire saws are commonly used for reinforced concrete and natural stone. Harder materials and larger cutting sections require sufficient power and stable wire tension capacity.
  2. Compare core technical parameters. Review cutting efficiency, motor power, wire storage length, and feeding system to see if they fit your planned daily workload.
  3. Assess site infrastructure. Confirm available power supply and water source for cooling and dust suppression. Off-grid sites need to consider a supporting diesel power unit.
  4. Confirm compatible consumables. Select diamond wire beads matched to the hardness of your workpiece. Check the availability of routine wear parts such as guide wheels and hydraulic seals.
  5. Evaluate supplier support. Check whether the supplier can provide operation documentation, technical consultation, and continuous supply of spare parts.

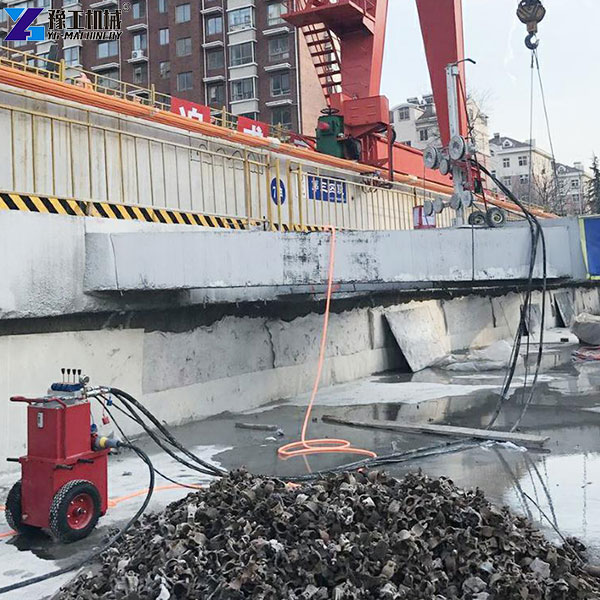

wire saw cutting machine usage
wire saw cutting machine usage

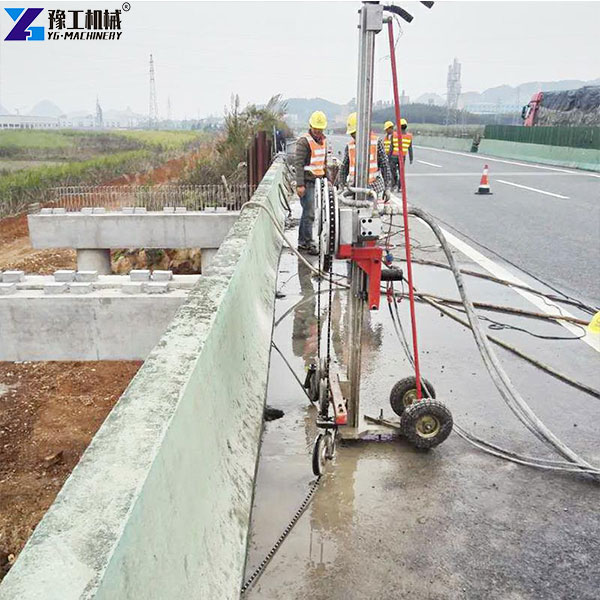

diamond wire cutting machine application
diamond wire cutting machine application

Get Your Custom Quotation

FAQs about Diamond Wire Cutting Machine

Q: What are the main wearing parts of the hydraulic wire saw cutting machine?

Diamond wire, guide wheels, hydraulic seals, and tension cylinder components are regular wearing parts. Spare parts can be purchased separately.

Q: Is water required during cutting?

Yes. Continuous water supply is required to cool the diamond beads and suppress dust. Insufficient water will greatly accelerate wire wear.

Q: Can this wire saw be used for curved cutting?

Yes. The flexible diamond wire supports straight, angled, and curved special-shaped cutting, ideal for curved slabs and irregular structure processing.

Q: Is it difficult to install and operate? Is technical support available?

The installation procedure is standardized. We provide operation manuals and video guides, as well as remote technical support.

Diamond Wire Cutting Machine of YG Machinery

YG Machinery’s diamond wire saw for concrete undergoes rigorous quality checks, exceeding industry standards in performance. Whether for standard projects or customized solutions, we deliver reliable equipment and technical support. Ready to boost your project efficiency? Contact us today for quotes and tailored recommendations!

Additionally, YG offers a range of other products: high frequency wall saws, concrete wall saws, rock splitters, excavator rock splitters, excavator drill&splitting machines, mobile crushers for sale, excavator drum cutters, excavator crusher buckets, pile breakers, diesel pile hammers, excavator rock saws, etc.
