Concrete Wall Saw for Sale

affordable concrete wall saw for sale
affordable concrete wall saw for sale

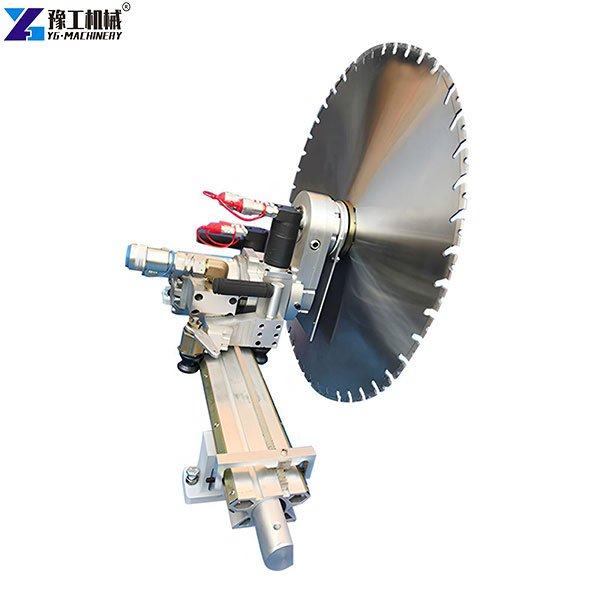

concrete wall cutting cost in YG
concrete wall cutting cost in YG

Concrete wall saw for sale is mainly used for cutting and slotting reinforced concrete walls, brick walls, or stone materials. It easily handles large-area wall cutting tasks like doorways, windows, or elevator shafts during building renovations, reinforcements, or design changes. Classified by power, they mainly include hydraulic concrete wall saws, high-frequency wall saws, and electric wall saws. YG factory’s premium products are ready to boost your projects—contact us for quotes!

Get a Free Quote

Concrete Wall Cutting Saw Key Parameters

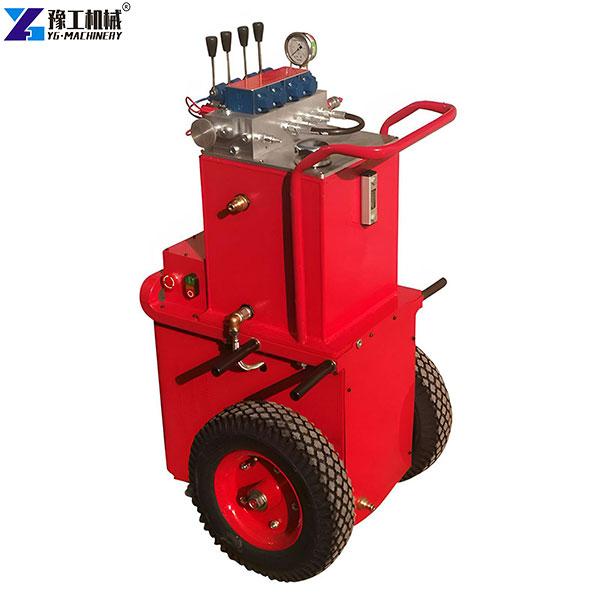

Hydraulic Concrete Wall Saw:

Hydraulic Oil PumpModelYG 600YG 700
Max. power25KW30KW
Motor cooling methodAir coolingwater cooling
Rated voltage380V 50HZ380V-420V 50HZ-60HZ
Pressure stages33
Max. operating pressure200bar/20Mpa210bar/21Mpa
Oil flow rate30-80L/min40-100L/min
Dimensions600mm*650mm*1050mm500mm*520mm*1100mm
Weight220kg140kg
WallSawSaw blade diameter range800-1400mm800-1600mm
Cutting depth620mm730mm
Max. working pressure180bar/18Mpa200bar/20Mpa
Max. oil flow rate100l/min100l/min
GearingGearGear
Rotation speed450/950/1300Rpm450/850/1200Rpm
Dimension400mm*420mm*400mm400mm*420mm*400mm
Weight38kg39kg

High-Frequency Wall Saw:

Saw Blade
Max. cutting depth510mm
Max. saw bladeφ1200mm
Saw blade fixing(flush cuts)6 countersunk head screws,110mm graduated circle.
Electric motor(water cooling & high frequency)
Max. Output Power16kw
IP ClassificationIP 67
Weight
Wall Saw 105DM Incl. Feed Electric Motor27kg
Electric Main Motor 16kw18kg
Control Unit
Voltage380-460V(single phase available)
Frequency50Hz/60Hz
Weight19kg
Wireless Control2kg

Electric Wall Saw:

ModelYG-800YG-1000YG-1200
Saw blade diameter800mm1000mm12mm
Cutting depth300mm400mm500mm
Power6150w6150w6150w
Cutting Efficiency3-6m/H3-6m/H3-6m/H
ColorCustomer requiredCustomer requiredCustomer required

Get a Free Quote

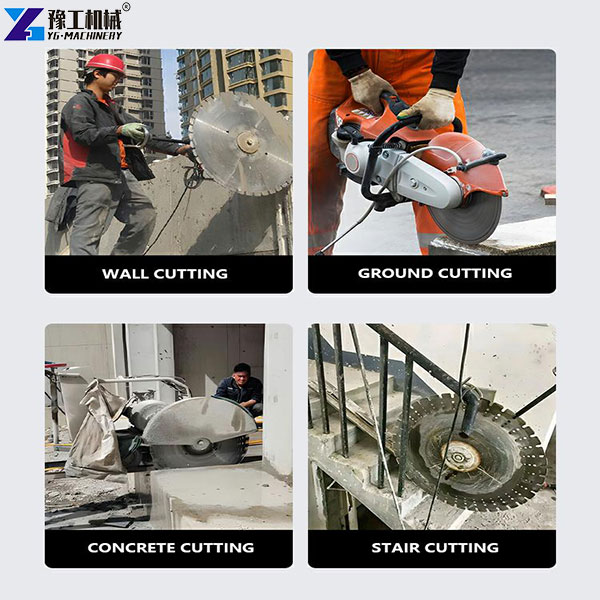

concrete wall cutting saw application
concrete wall cutting saw application

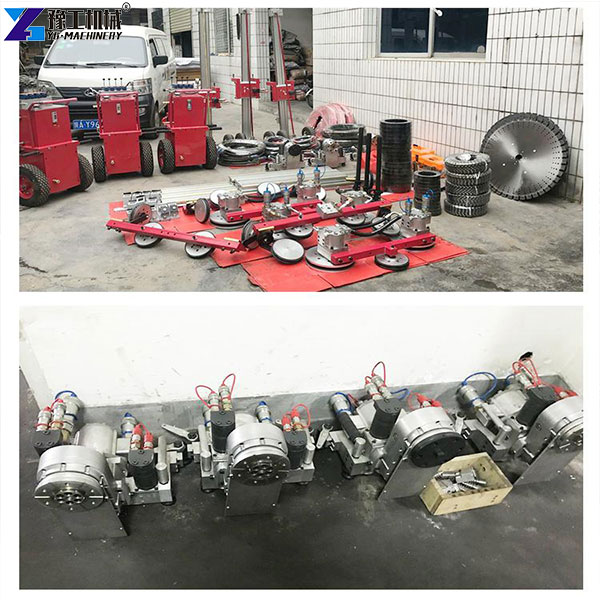

concrete wall cutting saw real shots
concrete wall cutting saw real shots

Ask for Cutting Videos

Types of Concrete Wall Saw for Sale

  • Hydraulic Concrete Wall Saw: Composed of a power station and a saw head (hydraulic motor), it relies on strong hydraulic power to tackle high-strength, thick reinforced concrete. With high efficiency and stability, it’s ideal for large-scale building renovations.
  • High-Frequency Wall Saw: Utilizing high-frequency vibration technology, it achieves fast and precise cutting with a smooth surface, reducing follow-up grinding. It’s widely used in projects requiring high cutting accuracy.
  • Electric Wall Saw: Easy to operate and highly mobile, it suits confined spaces or environments with strict noise/dust control, making it perfect for small-scale construction.

How to Select a Suitable Concrete Wall Saw?

  • Choose hydraulic wall saw: For thick walls, heavy rebar, high daily cutting volume, outdoor large demolition projects, stable hydraulic power required.
  • Choose a high-frequency wall saw: When you need a smooth cut surface, wireless remote operation, strict precision requirements, and long continuous cutting.
  • Choose an electric wall saw: For indoor renovation, limited site space, easy transportation, standard grid power, and low to medium workload.

Outstanding Advantages of YG’s Wall Mounted Concrete Saw

  • Superior Performance: Advanced technology and high-quality materials ensure concrete wall saw for sale delivers strong power and excellent cutting efficiency, adapting to complex construction environments.
  • Durability: Through rigorous quality testing, key components feature high wear and corrosion resistance, ensuring long service life and low maintenance costs.
  • Customer-Centric Service: We provide professional pre-sales consultation, installation, and after-sales maintenance, offering worry-free use of wall mounted concrete saw.

Get a Free Quote

FAQs about Concrete Wall Cutting Saw

Q: Is water cooling mandatory during wall saw cutting?

Yes. Water cools the blade and motor, controls dust, and extends the service life of diamond saw blades. Water supply is recommended for both high-frequency and hydraulic models.

Q: Can the guide rails be extended? What is the maximum available length?

Rails can be spliced and extended freely according to your cutting span. We supply guide rails of different lengths on request.

Q: Can the wall saw cut ceilings and concrete columns?

Yes. The machine supports multi-angle installation. With proper fixing, it works for columns, ceilings, and vertical walls.

Q: Can you provide CE certification for export?

YG wall saws can come with CE certificates to meet requirements for the EU and many overseas job sites. Please tell us your requirements before ordering.

Q: Can your engineers come to our overseas jobsite for on-site training?

Remote guidance and operation manuals are our standard support. On-site service is available for large orders upon negotiation, with travel expenses charged separately.

Send Inquiry to Our Engineer

Concrete Wall Cutting Cost

The total concrete wall cutting cost on site varies greatly and depends on multiple factors: wall thickness, rebar density, cutting depth, project quantity, local labor rates, noise & dust control requirements, and whether you rent equipment or outsource the whole cutting work. Hiring a third-party demolition team for frequent concrete cutting usually brings high recurring labor fees.

Purchasing your own YG concrete wall saw is a cost-effective long-term solution for contractors, demolition companies, and construction firms. Once you own the machine, you can handle all wall opening, structural modification, and concrete cutting jobs in-house, cutting down continuous outsourcing expenses and arranging your construction schedule flexibly.

Get Your Custom Quote

If you are looking for a reliable concrete wall saw for renovation and controlled demolition, YG provides tailored cutting solutions. Send your project requirements now for quotation, technical drawings, and special bulk order offers.

We also supply premium equipment like wire saw machines, rock splitters, hydraulic wall saws, hydraulic pulverizers, and excavator shears for sale.
