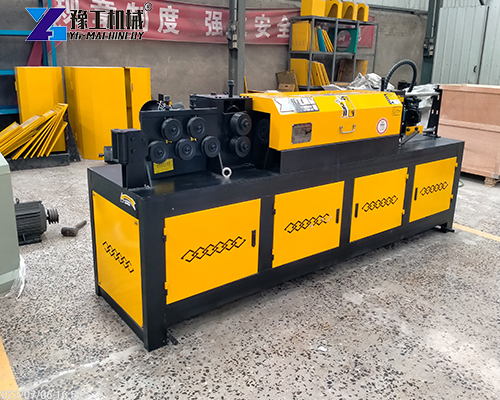

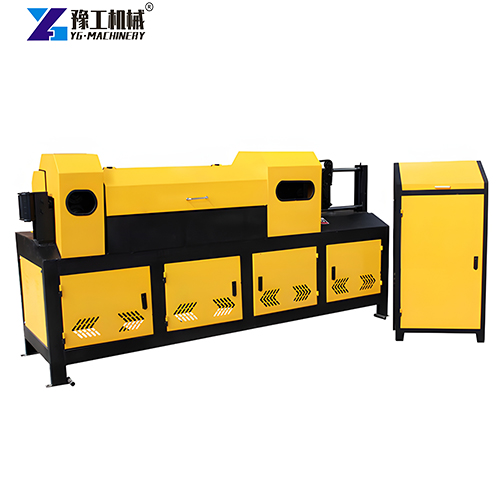

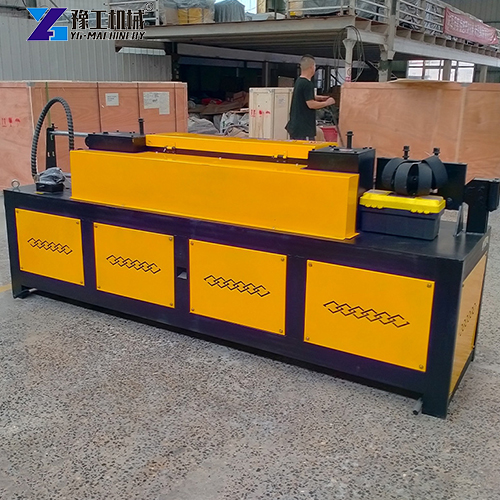

In the rebar processing workflow, straightening and cutting are the most fundamental front-end procedures. The traditional method requires straightening rebars with a straightener first, then transporting them to a cutting machine for shearing. Double feeding not only wastes time but also easily causes length errors. The rebar straightening and cutting machine integrates straightening and cutting functions into one single unit. After coiled rebars are fed into the machine, they are automatically straightened via straightening rollers, then accurately cut to preset lengths by the cutting device in a fully automatic cycle. One rebar straightening and cutting machine can replace two separate machines. It saves floor space and labor costs, ensures consistent straightness precision and cutting length, making it an efficient choice for rebar processing plants and construction sites.

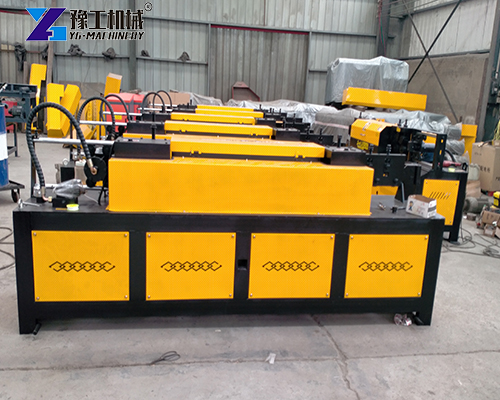

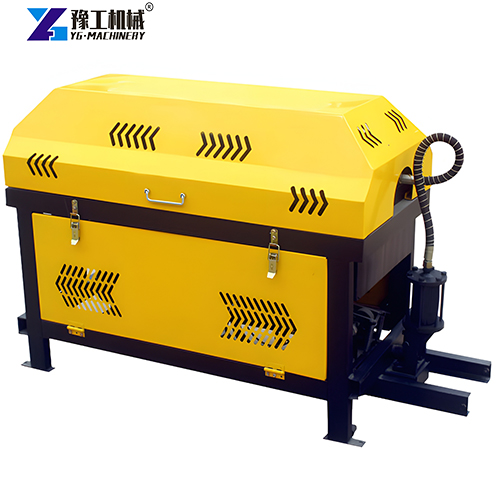

Advantages of YG Automatic Rebar Straightener and Cutter
YG automatic rebar straightener and cutter adopts exclusive designs in core components, including the feeding system, hydraulic unit, and length measuring system:
Four-wheel feeding inlet: Four sets of feeding rollers deliver synchronous feeding. Rebars are easy to insert with low resistance, running smoothly without deviation during feeding, which greatly improves feeding efficiency.
High-quality oil pump: Fast oil return speed, responsive hydraulic system, and long service life. It delivers crisp cutting action with flat, burr-free cuts.
Reinforced straightening frame: Integrally welded structure with high structural rigidity, resistant to deformation during high-speed operation and guarantees long-term stable straightening accuracy.
Upgraded solenoid valves: Effectively eliminate external leakage and minimize internal leakage for more precise hydraulic control and better consistency of cutting lengths.
Rapid hydraulic control system: Ultra-fast hydraulic response for instantaneous cutting movement, shortening idle waiting time for each cut.
Direct pressure length measuring system: Measuring wheels are made of Cr12MoV alloy tool steel with outstanding wear resistance, flexible adjustment, and precise data reading. Matched with patterned rollers, it maintains stable measuring accuracy without counting drift over long-term operation.
High-power 9kW–11kW straightening motor: Powerful straightening capacity to efficiently process all rebar sizes within 4–14mm and avoid machine jamming.
Application Scenarios of Rebar Straightener Cutter
Rebar Processing Plants
Batch straightening and fixed-length cutting of coiled rebars according to customer requirements
Form a complete rebar processing production line when matched with bending machines
Construction Projects
On-site operation in rebar processing sheds to reduce off-site rebar outsourcing
Fixed-length rebar cutting for residential buildings, bridges, tunnels and other projects
Precast Component Manufacturing
Batch blanking of reinforcement frames for precast slabs and precast beams
Raw material preparation for rebars used in pipe piles, railway sleepers and other concrete products
Metal Wire Processing
Straightening and cutting of cold-drawn wire, stainless steel wire and aluminum wire
Fixed-length processing of special wires such as plastic-coated steel wire
Wear Parts List of Rebar Straightening and Cutting Machine
Familiarity with consumable parts is critical for equipment maintenance and cost control:
Wear Part
Function Description
Replacement Suggestion
Length Counter
Measures rebar cutting length
Calibrate regularly; replace when readings become inaccurate due to wear
Solenoid Valve
Controls hydraulic cutting action
Replace in case of oil leakage or slow response
Straightening Roller
Core component for rebar straightening
Inspect wear regularly based on total processing tonnage
Measuring Roller
Works with length counter to track feeding length
Replace promptly once the patterned surface is worn flat
Vertical Feeding Roller
Clamps and feeds rebars vertically
Replace when surface wear causes slipping
Horizontal Feeding Roller
Guides rebars horizontally
Same as above
V-Belt
Transmits driving power
Replace when loose or broken
Maintenance Reminder
The service life of wear parts for frequency conversion 1000-ton and 2000-ton versions is far longer than the high-speed model (800–1000 tons vs 300–500 tons). For mass production, high-end configurations are recommended to lower unit consumable cost.
Q: How to choose between the high-speed version and frequency conversion version of rebar straightening and cutting machine?
The high-speed model (35–55m/min) features a simple structure and a lower price, suitable for projects with small daily output. The frequency conversion version (0–80m/min or 0–100m/min) supports stepless speed regulation, longer wear part lifespan, and higher cutting precision, ideal for continuous mass processing. If daily processing volume exceeds 10 tons, the frequency conversion model is strongly recommended for better long-term overall cost performance.
Q: Can rebar straightener cutter process round steel and threaded steel simultaneously?
Yes. The YG series straightens and cuts round steel from 4–14mm and threaded steel from 4–12mm. You only need to adjust the gap between feeding rollers and straightening rollers when switching material specifications. Threaded steel has raised ribs on the surface, leading to higher cutting resistance, so its maximum processing diameter is 2mm smaller than round steel.
Q: How long can the measuring accuracy be maintained?
YG equips Cr12MoV measuring rollers with the direct pressure length measuring system. Normally, the measuring accuracy lasts for a full wear part replacement cycle (800–1000 tons for the 1000-ton version, around 2000 tons for the 2000-ton version). Calibrate the length counter every time you replace consumable parts to guarantee accurate cutting lengths.
Q: What is the maximum speed of the frequency conversion 2000-ton model?
The frequency conversion 2000-ton version reaches a maximum straightening speed of 100m/min. Equipped with a 15kW traction motor and 5.5kW cutting motor, one set of wear parts can process about 2000 tons of rebars, making it the highest-capacity configuration in the YG lineup.
Contact YG
If you are searching for a reliable steel bar straightening and cutting machine, please contact the YG team for selection plans and quotations for the rebar straightening and cutting machine. The YG range includes three configurations: high-speed type, frequency conversion 1000-ton type, and frequency conversion 2000-ton type, covering small batches of 5 tons per day up to mass production over 100 tons per day. We deliver integrated straightening & cutting high-efficiency solutions for your rebar processing projects.
