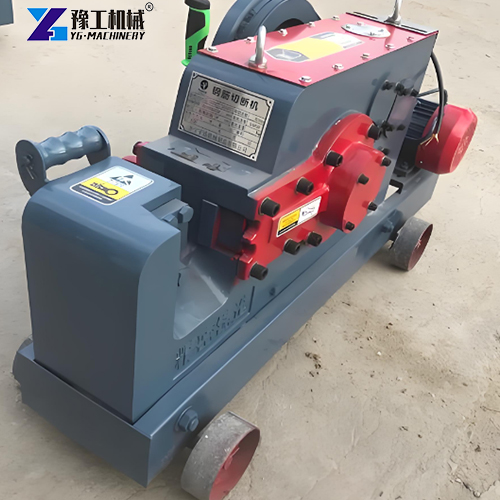

Steel Rebar Cutting Machine

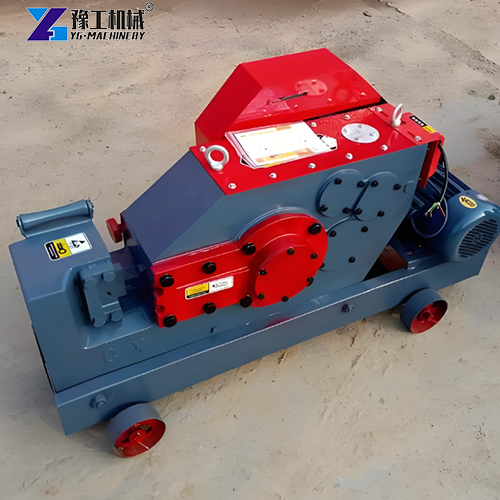

In building construction and rebar processing, accurately cutting full-length rebars to designed sizes is the most basic and frequent working procedure. Cutting quality directly affects the precision of subsequent bending, welding, and installation, while cutting efficiency determines the overall output of the whole processing line. The steel rebar cutting machine is specially designed to efficiently cut various metal bars such as rebars, round steel, threaded steel and flat steel. It can cut multiple bars at one time and delivers smooth, burr-free cuts. A reliable steel rebar cutting machine can not only greatly improve processing efficiency, but also ensure consistent length of each rebar, fully guaranteeing project quality.

Steel Rebar Cutting Machine Parameters

What Materials Can the Steel Rebar Cutting Machine Process?

The applicable range of the reinforcement cutting machine goes far beyond ordinary rebars. Processable materials are listed as follows:

• Ordinary carbon steel: Common carbon structural steel for construction like HPB235, HRB335
• Hot rolled round steel: Smooth rib-free round steel bars with diameter from 6mm to 55mm
• Threaded steel: Ribbed deformed steel bars ranging 6–45mm, including widely used HRB400 and HRB500 grades
• Flat steel: Flat steel strips in various sizes for brackets and connecting fittings
• Angle steel: L-shaped angle steel for frame structures and supporting systems
• Square steel: Solid steel bars with square cross-section

By replacing blades of different specifications, one single machine can cut bars with various cross-sectional shapes and materials, realizing multi-purpose application.

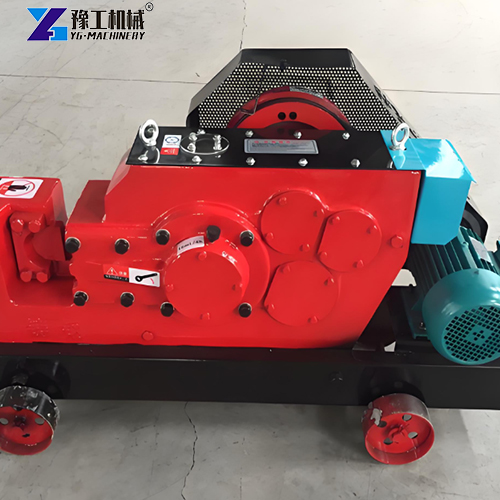

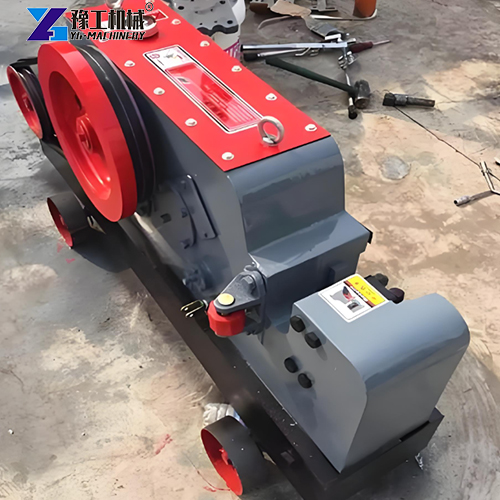

6 Advantages of YG Reinforcement Bar Cutting Machine

YG reinforcement bar cutting machine has prominent advantages in structural design and material selection:

• Heavy-duty solid steel frame: The whole machine is made of solid steel with high structural strength and crack resistance. It withstands long-term high-intensity vibration and impact, with a far longer service life than ordinary cast iron housings.
• Pure copper winding motor: Equipped with a full copper coil motor featuring high conductivity, low heat generation, and outstanding durability. It has a longer service life and a lower failure rate than aluminum wire motors under the same power rating.
• Roller feeding rack: Enables smooth and easy material feeding with high wear resistance, reducing operators’ labor intensity and boosting feeding efficiency.
• Weighted heavy flywheel: The enlarged weighted flywheel generates stronger instantaneous cutting force, easily shearing high-hardness rebars without jamming.
• 9CrSi alloy blades: Made of 9CrSi tool steel with high hardness and good toughness. It can cut several thin rebars in one stroke to save time and labor. Square blades and arc blades are optional for different steel types and diameters.
• Safe start switch: Simple and intuitive control panel for easy start and stop operation, equipped with safety protective devices to lower operational risks.

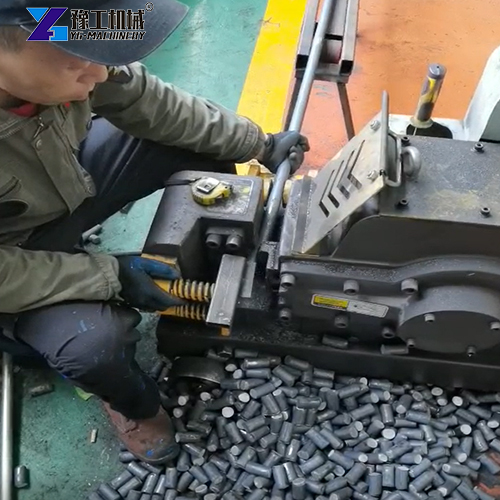

Application Scenarios of Reinforcement Steel Cutting Machine

Building Construction

• Fixed-length cutting of beam, column, and slab rebars in residential building projects
• Matched with bending machines and straightening machines to form a complete automatic rebar processing production line in rebar fabrication plants

Bridge & Tunnel Engineering

• Cutting main bars and stirrups for reinforcement cages of bridge pile foundations
• Batch blanking of lining rebars for tunnel projects

Precast Component Manufacturing

• Fixed-length cutting of reinforcement frames for precast slabs and precast beams
• Raw material preparation of rebars for concrete products such as pipe piles and railway sleepers

Municipal & Infrastructure Works

• Rebar cutting for highway guardrails, railway sleepers and other public infrastructure
• Fabrication of steel cages for urban pipe networks and underground utility tunnels

FAQ about Steel Rebar Cutting Machine

Q: What are the wearing parts of a steel rebar cutting machine?

Main consumable parts include blades (square blades and arc blades), bakelite plates, copper bearing bushes, and V-belts. Blades wear out the fastest, and their service life varies based on the diameter and hardness of cut rebars. 9CrSi blades have excellent wear resistance. Please regularly check the cutting edge during daily use and replace blades promptly once they get dull or chipped.

Q: Why are the cutting capacities different for round steel and threaded steel?

Round steel has a smooth surface with even cutting resistance during shearing. Threaded steel has protruding transverse and longitudinal ribs, which cause uneven stress and higher cutting resistance. Therefore, the maximum cutting diameter for threaded steel is about 10mm smaller than round steel on the same machine. For the YG-60 model, max round steel diameter is 55mm while max threaded steel diameter is 45mm.

Q: How many bars can a reinforcement cutting machine cut at one time?

Multiple thin rebars can be sheared in a single cut (the exact number depends on bar diameter and machine capacity) to greatly improve batch processing efficiency. For example, 3 to 5 pieces of rebars below 12mm can be cut together. For large-diameter rebars, single cutting is recommended to guarantee neat cutting surfaces.

Q: How to select the correct blades?

Square blades work best for ordinary carbon steel and round steel with flat, clean cuts. Arc blades fit tightly with the cross-section of ribbed threaded steel for smoother cutting. Choose the standard blade set according to your main processing steel types.

Contact YG

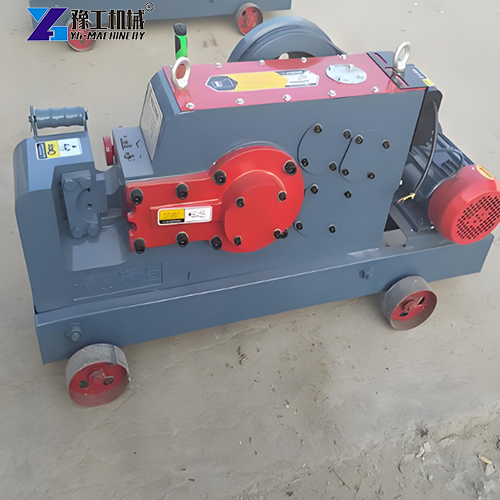

If you are looking for a reliable steel rebar cutting machine, feel free to contact the YG team for product selection solutions and quotations. Our hot-selling YG-60 reinforcement cutting machine handles round steel from 6–55mm and threaded steel from 6–45mm. With 22 cuts per minute, a high-frequency, solid steel body, a pure copper motor, and durable 9CrSi blades, it delivers efficient, long-lasting, and safe cutting solutions for your rebar processing projects.
