A crusher bucket for sale is a multi-functional crushing device installed on excavators. It can easily handle the crushing and loading-unloading operations of various materials. Integrating the functions of excavation, clamping, and crushing, it performs excellently when dealing with materials such as gravel and concrete blocks—ideal for scenarios where on-site aggregate recycling is needed. If you want to know the specific quotation of this equipment and obtain the product manual, please feel free to contact us!【WhatsApp/WeChat/Phone】+86 13837122632
The following is the parameter table of hot-selling models:
SPECIFICATION
UNIT
YG-1
YG-2
YG-3
YG-4
YG-5
YG-6
YG-7
YG-8
Carrier Weight
Ton
8-12
14-18
120-25
25-30
30-35
35-50
50-75
≥ 75
Load Capacity
m³
0.15
0.55
0.66
0.70
0.90
1.30
1.60
2.30
Opening Dimensions
mm
L540 H250
L610 H510
L740 H510
L850 H510
L910 H540
L1205 H540
L1300 H600
L1450 H700
Output Setting
mm
15-60
15-60
15-130
15-135
15-140
15 – 145
40-150
100-200
Length (A)
mm
1240
1745
2000
2050
2185
2185
2930
3560
Width (B)
mm
1000
1000
1150
1300
1340
1620
1880
2090
Height (C)
mm
770
1100
1200
1400
1390
1390
170
2065
Weight
Ton
0.75
1.6
2.3
3
3.5a
4.8
7.5
10.5
Oil Flow
l/min
90
98
140
160
180
210
320
380
Pressure
bar
200
220
220
220
220
220
250
230
Counter
bar
10
10
10
10
10
10
10
10
Max. Production
m³/h
10
23
31
34
42
53
88
120
For small – scale gravel yards or loading – unloading operations of small and medium – sized materials, YG – 1, which is suitable for 8 – 12 – ton excavators, is flexible and practical; for large – scale mining crushing projects, YG – 8, suitable for excavators of ≥ 75 tons, can work efficiently, helping you to select accurately according to needs.
Its working device includes a bucket with two crushing jaws inside. One of the jaws is fixed, and the other is directly driven by a motor and moves back and forth relative to the fixed one, forming a unique, aggressive figure-eight crushing motion. This motion can produce high-quality cubical products, enabling the aggregate to be reused on-site and greatly improving work efficiency.
Product Features of Excavator Crusher Bucket for Sale
Wide Application: It can be used for excavation and clamping operations in gravel yards, as well as the loading – unloading operations of various small and medium-sized materials, suitable for multiple scenarios.
Excellent Material: Made of Q345 manganese plate steel, it has high strength and corrosion resistance; the pin shaft uses 42CrMo alloy steel with a built-in oil passage, having both high strength and good toughness.
Reliable Core Components: The rotating type is equipped with a Swiss-imported rotating motor, with high flexibility; the oil cylinder uses a honed tube and imported HALLITE oil seals, with a short working cycle and long service life.
Efficient and Durable: Its design can ensure stability under long – term high – intensity operations and reduce the frequency of failures.
Construction: When dealing with concrete blocks generated from demolition, the concrete crusher bucket can crush them into reusable aggregates, reducing the cost of material transportation.
Mining: In small and medium-sized mines, the rock crusher bucket can crush the mined ores, simplifying the crushing process.
Road Engineering: Used for crushing roadbed gravel and old road surface materials, the rock crusher bucket helps in road renovation and reconstruction.
Municipal Construction: It can handle construction waste, realizing on-site resource utilization and meeting environmental protection requirements.

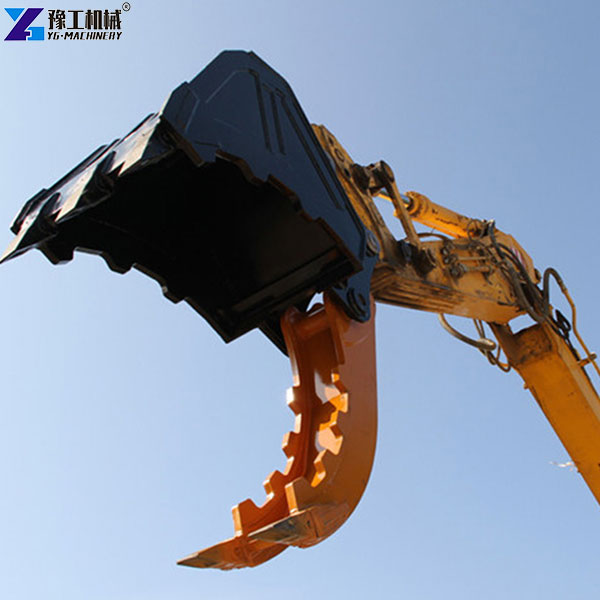

durable rock crusher bucket

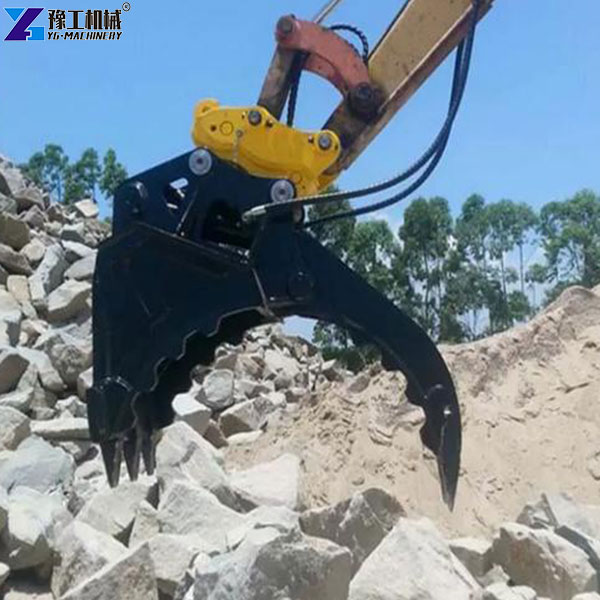

crusher bucket for sale application
Reliable Concrete Crusher Bucket Supplier
The excavator crusher bucket for sale of YG Machinery has stable performance and a complete range of models, which can be adapted to various excavators. The equipment has reliable quality and high cost-performance ratio. After selection, there is no need to worry about subsequent use problems, and it can be safely put into various material handling operations. Contact us immediately to get an exclusive quotation and start an efficient operation mode! In addition, YG also produces excavator attachments such as hydraulic breakers, pulverizers, and hydraulic shears.【WhatsApp/WeChat/Phone】+86 13837122632
