Ever wondered how beat-up concrete floors get smooth again? Or how stubborn glue stains on airport runways are wiped clean in no time? The secret is the floor bead blaster—a “floor doctor” that looks like a regular machine but works quiet magic to give tired floors a whole new lease on life. Contact us to learn about such equipment from YG machinery.【WhatsApp/WeChat/Phone】+86 13837122632
Parameters of products in different models：
| Model | YG-270(Single) | YG550/600(Double) | YG-850(Double) | |
| Shot Blasting Wheel Diameter | 200mm | |||
| Working width | 270 mm | 550/600 mm | 800 mm | |
| Walking speed | 0.5~20 m/min | 0.5~33 m/min | ||
| Concrete surface cleaning efficiency | ≥180 m2/h | ≥400 m2/h | ≥600 m2/h | |
| Steel plate surface cleaning efficiency | 15-25 m2/h | 75-100 m2/h | 100-160 m2/h | |
| Dust connection pipe diameter | 120 mm | 150 mm | ||
| Suggest the diameter of steel balls | 1.2-1.5 mm | 1.5-1.8 mm | ||
| Steel pill consumption | 10 g/m2 | |||
| Supporting dust collector | Seven-core automatic backflush vacuum cleaner | Eight-core automatic backflush vacuum cleaner | ||
| Shot wheel motor | Power consumption | 11 kW | 11*2 kW | 15*2 kW |
| Input Current | ≤ 15 A | ≤ 22*2 A | ≤ 28*2 A | |
| Walking motor | Power consumption | 0.5 kW | 1.5 kW | |
| Input Current | 1 A | 3 A | ||
| Size (mm) | 1000*300*1100 | 1950*720/775*1400 | 1950*1020*1550 | |
| Weight | 150 kg | 570 kg | 700kg | |
| Power connection requirements | 400V, 50Hz, 100A, CEE socket | |||

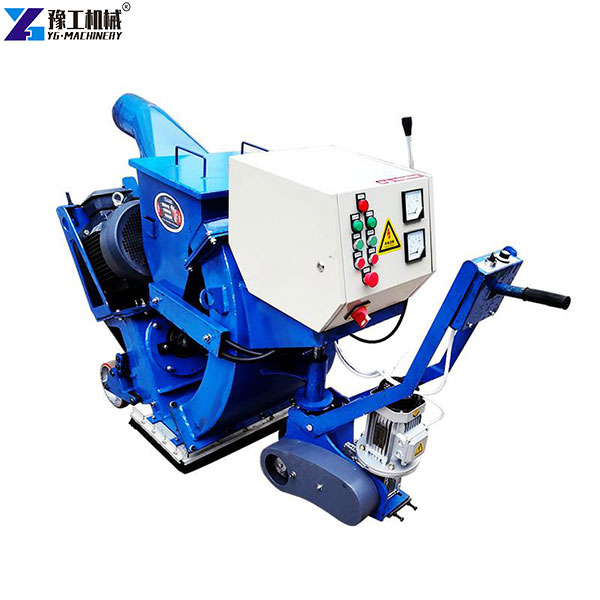

What is a floor bead blaster, exactly?
A floor bead blaster does what its name suggests: it blasts tiny, hard pellets (think small steel balls) at high speed onto floor surfaces. It has two big jobs: first, stripping off all the gunk—stains, old paint, rust, you name it. Second, it roughs up the surface just enough to help new paint, tiles, or waterproof layers stick like they’re supposed to.
You might also hear about the floor shot blasting machine—it’s similar but built for big jobs, like highways or airport tarmacs, where covering large areas quickly is key.
The “magic” behind it: Blasting and recycling, in perfect sync

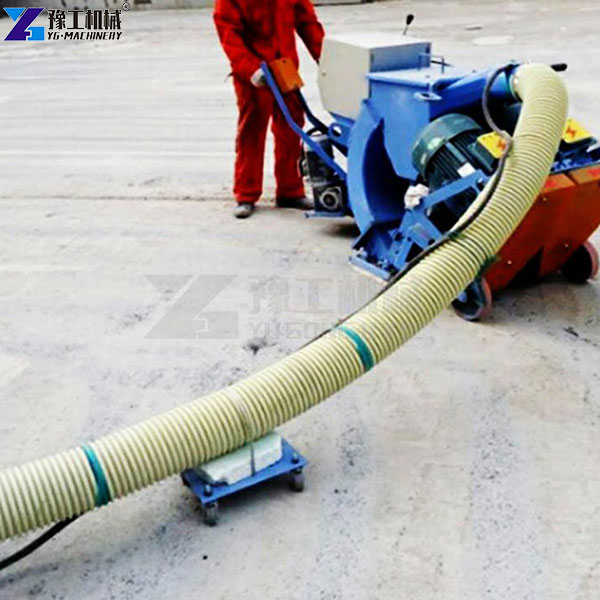

The floor shot blasting machine works like a super-precise “floor surgery”:
- Blasting stage: Inside the machine, a wheel spins at lightning speed, flinging pellets at the floor at tens of meters per second. These pellets hit like a million tiny hammers—knocking off dirt and old layers, and leaving tiny, even dents that help new materials grip.
- Recycling stage: A built-in vacuum system kicks in, sucking up used pellets, dust, and debris. The good pellets get filtered out to be reused, while the junk goes into a waste bin. It’s clever, eco-friendly, and saves on material costs.
For concrete floors, the concrete floor bead blaster gets even smarter. It adjusts how hard it blasts—enough to clean the surface but not so hard that it damages the underlying concrete. It’s like giving the floor a deep clean instead of scouring it raw.
Where do we spot bead blaster floor machine in daily life?
It’s more common than you think—here are a few places it’s hard at work:
- When malls get a facelift, it roughs up the concrete under old tiles so new ones stick like they’ll never come loose.
- In factories, it tackles oily, grimy floors, turning them into clean, slip-proof surfaces that keep workers safe.
- On highways, it scrapes off the worn, weathered top layer so fresh asphalt bonds tight to the road—no more potholes anytime soon.
- In parking garages, it zaps old paint lines right off the floor, leaving a clean slate for new ones without a single scratch.
Why is bead blaster floor machine better than old-school methods?
Compared to scrubbing by hand or power-washing, it’s a total upgrade:
- Speed demon: One machine can handle thousands of square meters in a day—way faster than a team of workers with sanders.
- Eco-friendly: Pellets get reused over and over, and that built-in vacuum means no clouds of dust or piles of waste.
- Consistent results: It leaves floors evenly rough, so whatever you put on top—paint, tiles, or sealant—stays put for years.
- Super flexible: It can target small spots, like the tire tracks on a road, instead of wasting time on the whole area. That saves money and cuts down on work time.
Behind every smooth, clean floor is floor bead blaster. It uses technology to turn tedious floor treatment into efficient, precise work, silently supporting urban cleanliness and safety. Next time you pass a renovated road, it might be the work of this “pellet blaster”!
Contact us to choose a suitable concrete floor bead blaster for your factory!【WhatsApp/WeChat/Phone】+86 13837122632
