Planning to expand egg tray production capacity but confused by complex options for equipment upgrade and drying matching? A high-performance egg tray molding machine is the cornerstone, while scientific capacity planning and proper drying method selection are the wings to achieve efficient profitability. This article focuses on these decision points to help you build the most competitive production line.【WhatsApp/WeChat/Phone】+86 13837122632

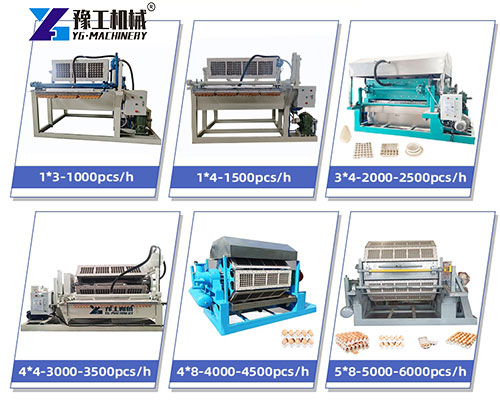

Drum type (rotary type): Such as YG series equipment, which adopts multi-sided mold rotation operation for continuous pulp suction and molding. Its advantages are high production efficiency and stable operation, suitable for large-batch and standardized egg tray production, making it the first choice for medium-scale and above investments.
Reciprocating type (lifting type): The mold moves vertically for single-cycle molding. This type of egg carton making machine has a relatively simple structure, low initial investment and convenient mold replacement, more suitable for flexible production of small batches and multiple varieties (such as various fruit trays).
Initial stage (1500-3000pcs/h): You can choose a single semi-automatic or standard automatic machine, such as basic egg tray machine for sale, to meet the needs of local small and medium-sized customers with controllable investment.
Expansion stage (3000-5000pcs/h): You can add machines of the same model to form a production line, or upgrade to a higher model, and match with automatic drying and packaging lines to reduce unit labor costs.
Large-scale stage (over 7000pcs/h): Plan a complete automatic production line, including multiple molding machines, centralized pulp making and supply systems, and efficient multi-layer drying kilns, to achieve year-round uninterrupted and high-efficiency production.

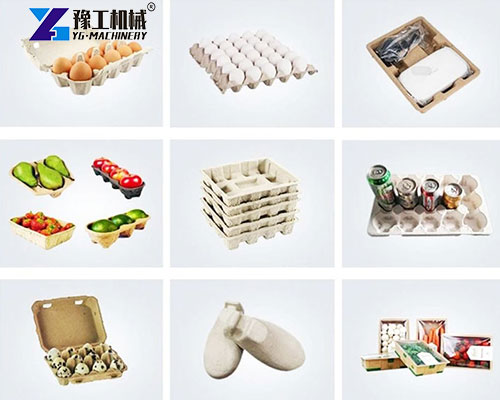

wide application of egg box machine
Selection of Drying Methods
Drying the formed wet blanks is the key to determining the quality of finished products and energy consumption. When choosing the drying method for the egg box machine production line, you need to balance site, cost and automation needs.

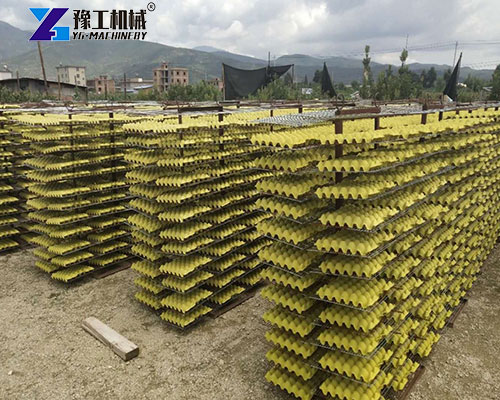

Natural drying: Extremely low investment, but requires a large area, low efficiency and is restricted by weather, only suitable for small workshop-style production.

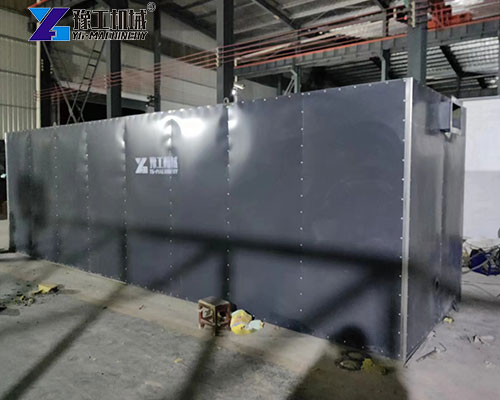

Drying box (drying room): Moderate one-time investment, not affected by weather, suitable for small and medium-scale production, but manual handling labor intensity is high.

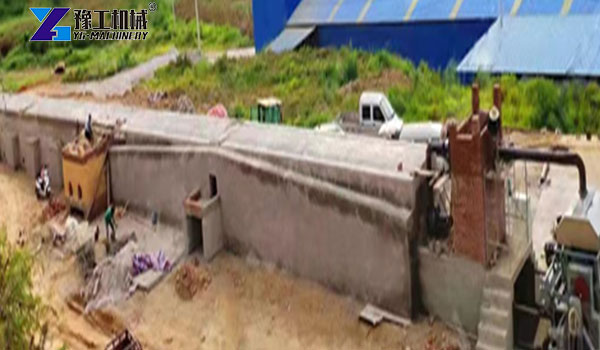

Civil construction drying tunnel: Can realize semi-automatic continuous drying with flexible heat source selection, but requires a long length (40-70 meters) and has high long-term heat loss.

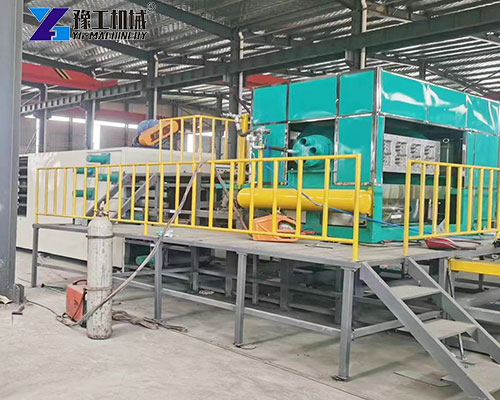

Multi-layer metal drying kiln: This is the first choice for modern egg tray molding machine production lines. It has high integration, small floor space and high thermal efficiency, and can perfectly connect with the automatic conveying system, which is the core technical guarantee for realizing large-scale and low-cost production.
Front-end processing system: Pulper, mixing tank and pulp pump to ensure uniform and stable supply of raw materials.

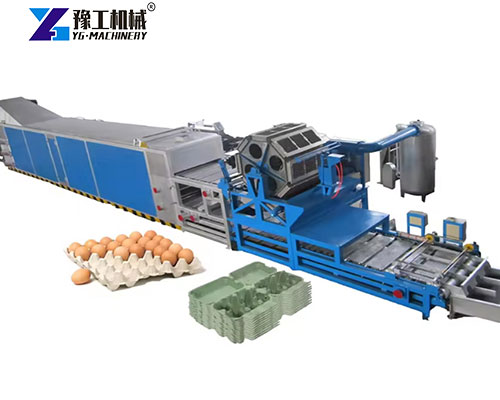

Core molding system: egg carton making machine main unit and its vacuum, air pressure and electric control systems.
Back-end drying and finishing system: According to the selected drying method (multi-layer drying kiln is recommended), match with the conveying line, heat source (natural gas/biomass boiler, etc.) and packaging table.
Egg Tray Molding Machine Manufacturers
If you are evaluating the investment plan for egg tray molding machine, or want to get the production line configuration plan and quotation according to your specific capacity and site conditions, please feel free to consult. We provide comprehensive support from professional equipment (such as YG series) to turnkey projects of the whole line, helping you successfully start or upgrade your environmental protection packaging business.【WhatsApp/WeChat/Phone】+86 13837122632
