Small Diggers for Sale

small diggers for sale
small diggers for sale

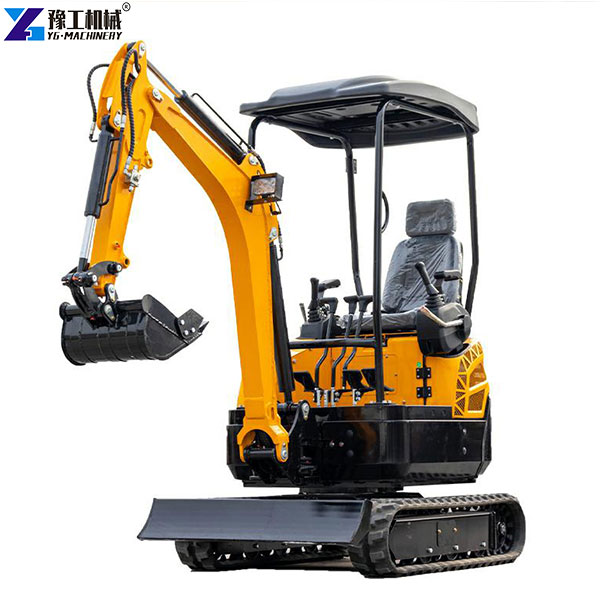

mini crawler excavator
mini crawler excavator

Small diggers for sale are more than just ordinary small machines. They are “flexible experts” built for narrow spaces and diverse tasks. They can dig precisely in alleys, easily trench on farmland ridges, and even work with breakers to demolish old walls or grapples to carry building materials. Operated by one person, they are far more efficient than manual labor. Such versatile tools are becoming the top choice for more engineering teams and individual entrepreneurs. Want to know more product details and models? We’re online 24/7. Contact us for an exclusive discount!【WhatsApp/WeChat/Phone】+86 13837122632

Get a Free Quote

Parameters and Practical Guide for Small Diggers for Sale

(1) Core Parameter Reference

ModelYG-15YG-17YG-18
Operation weight1100KG1300KG1470KG
Engine(customized)Coop E5 2CS-air,LaidonEV800 3CS-water KubotaChangchai 390, Yanmar,KubotaKubota(standard)
Power14kw/2500r/min20kw≈32ph11.9kw
Hydraulic cylinder, pump, valve(customized)Warranty 1 yearWarranty 1 yearWarranty 1 years
Bucket capacity0.028CBM0.03CBM0.05CBM
Rotation speed11r/min11r/min9r/min
Overall dimension(L*W*H)2775mm*1000mm*2200mm2950mm*1100mm2200mm3250mm*1100mm*2300mm
Crawler grounding length1250mm1350mm1300mm
Crawler width180mm180mm230mm
Max digging height2550mm2750mm3200mm
Max discharge height1700mm1800mm2300mm
Max digging depth1650mm2000mm2200mm
Max digging radius2850mm2450mm3360mm
Mini turning radius1290mm1290mm1350mm
Platform  clearance to ground370mm370mm370mm
Swing angle360°360°360°
Climbing gradient30°30°30°
Bulldozer Max  depth190mm190mm190mm
Bulldozer Max raising height260mm260mm260mm
Walking speed3km/h3km/h0-3km/h
Bucket digging force12.5KN14.5KN16.5KN
Hydraulic system press16MPa16MPa16MPa

Get a Free Quote

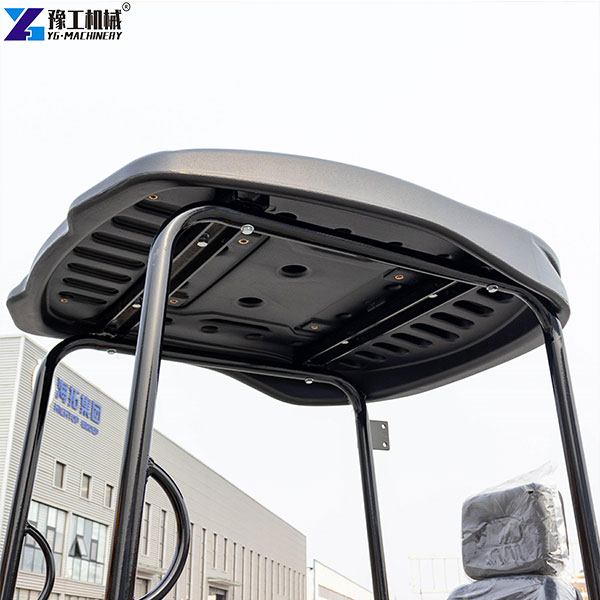

mini crawler excavator details
mini crawler excavator details

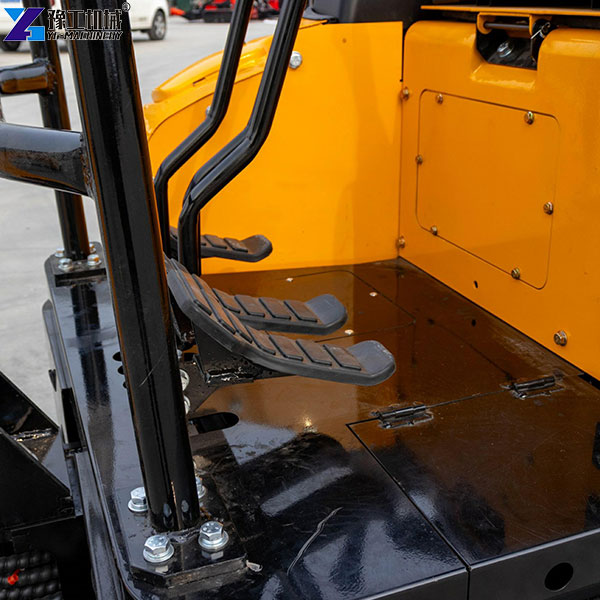

durable small diggers for sale
durable small diggers for sale

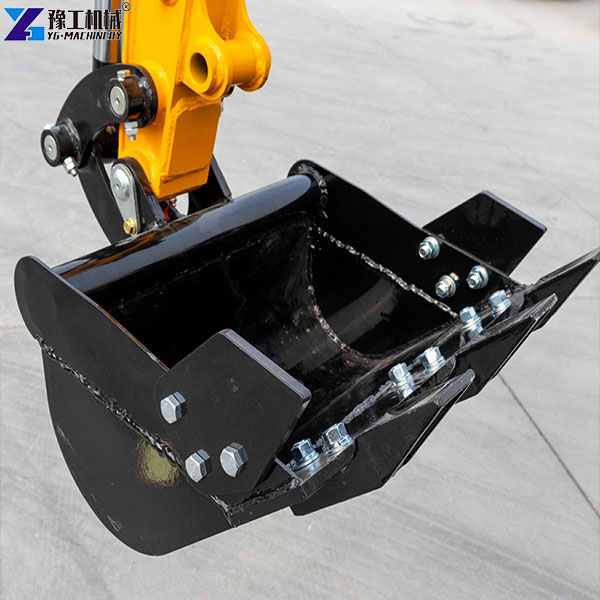

high-quality small excavation machine
high-quality small excavation machine

(2) Usage Notes

  • Before starting the small excavation machine, check that the bucket and boom connections are secure and hydraulic lines are leak-free. Avoid operating with faults.
  • Observe the surrounding environment during operation. Especially near residential areas or high-voltage lines, control the working radius and never use the bucket to lift people.
  • For long-distance transfers, use a trailer. Do not drive at high speed for a long time to prevent excessive wear on tracks or tires.

(3) Winter Maintenance Tips

  • Hydraulic device preheating: When hydraulic oil temperature is low, rapid operation may damage the hydraulic device. Preheat step by step: ① Run the engine at medium speed and operate the bucket for preheating; ② Lift the machine to rotate the tracks, preheating left and right travel motors separately; ③ Set the engine to maximum speed and let the bucket and arm work continuously for 5 minutes. Pay full attention to surrounding safety during preheating. In low temperatures, human reactions are slower, so avoid hitting people or objects nearby.
  • Engine preheating: After getting on the machine, start the engine and let it run at low speed for 5 minutes. During preheating, check: ① Whether the oil warning light is off; ② Any oil or water leakage; ③ Whether the engine sound and exhaust color are normal; ④ Whether the charging indicator is off; ⑤ Any abnormalities in all parts of the machine.
  • Inactive maintenance: If the small excavator is not used in winter, it should be properly stored and maintained to ensure optimal performance when reused. Specific measures: ① Clean the dirt on the surface and check for loose fasteners; ② Check the coolant level, engine oil level, and quality, and confirm the fuel’s antifreeze level.

Frequently Asked Questions About Small Diggers for Sale

small excavation machine usage
  • What is the market prospect of small excavators?
    The market prospect is broad, especially in urban pipeline maintenance, rural housing construction, and agricultural greenhouse renovation. As labor costs rise, the small excavation machine replacing manual work is an inevitable trend, and demand will keep growing.
  • How to choose a suitable small digger?
    It depends on the working environment, task requirements, and budget. For greenhouses and alleys, choose mini crawler excavator under 2 tons; for municipal maintenance, 3-4 ton models; for small projects, 6 ton models.
  • What should be noted in daily maintenance of small diggers?
    Daily maintenance includes checking coolant, hydraulic oil, engine oil, and fuel levels, as well as wires and horns. Replace worn parts and perform regular maintenance.

Get a Free Quote

Choose YG Mini Crawler Excavator to Start Your Wealth-Building Journey

YG has rich experience in the excavator field. Each device undergoes strict performance tests, with reliability from core components to detailed craftsmanship. We not only provide professional selection advice but also fast-responsive after-sales service for your peace of mind.

Whether you are a new entrepreneur or an experienced user upgrading equipment, small diggers for sale can meet your needs. In terms of investment, the mini digger cost is lower than large equipment but with higher return efficiency—you can see profits soon, whether charging by hour or undertaking projects. Choosing YG means choosing proven quality and thoughtful service. Contact us now for an exclusive quote and start efficient operations! In addition, YG produces high-quality equipment such as spider cranes, concrete mixers, sprayers, and wood chippers.【WhatsApp/WeChat/Phone】+86 13837122632
