Vertical Man Lift

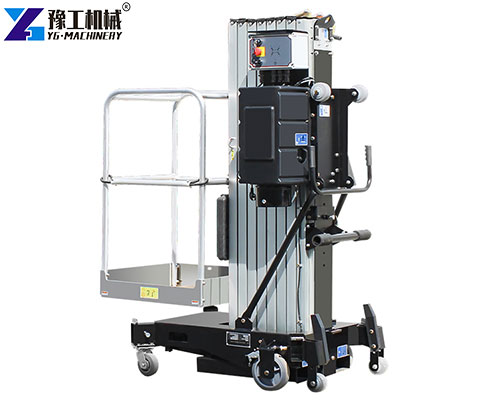

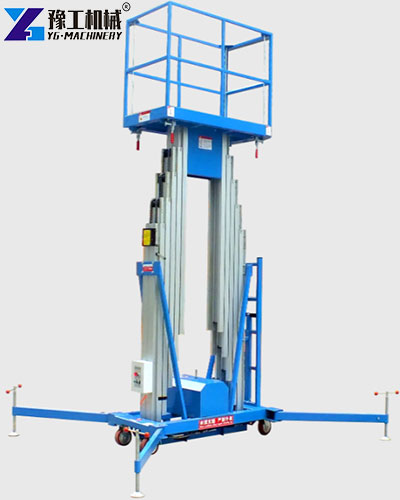

The vertical man lift adopts a high-strength aluminum alloy mast structure, combined with an integrated lifting guardrail device, ensuring both safety and easy transportation. This equipment from YG Machinery has earned global customers’ trust with its outstanding performance. Welcome to contact us anytime for a customized quote!【WhatsApp/WeChat/Phone】+86 13837122632

Get a Free Quote

Vertical Man Lift Parameter Table

Product Name	Model Code (JTH)	Platform Max Height (m)	Platform Working Height (m)	Rated Load (Kg)	Platform Size (m)	Power Supply/Hz	Power (Kw)	Weight (kg)	Overall Dimensions (m)
Single Mast	YG4 – 100	4	5.7	100	0.60*0.60	AC220/50HZ	0.75	250	1.28*0.80*1.75
Single Mast	YG6 – 100	6	7.7	100	0.60*0.60	AC220/50HZ	0.75	280	1.28*0.80*1.90
Single Mast	YG8 – 100	8	9.7	100	0.60*0.60	AC220/50HZ	0.75	300	1.28*0.80*1.98
Single Mast	YG9 – 100	9	10.7	100	0.60*0.60	AC220/50HZ	1.1	320	1.36*0.90*2.00
Single Mast	YG10 – 100	10	11.7	100	0.60*0.60	AC220/50HZ	1.1	340	1.36*0.90*2.10
Double Mast	YG4 – 200	4	5.7	200	1.10*0.60	AC220/50HZ	1.5	380	1.30*0.90*1.75
Double Mast	YG6 – 200	6	7.7	200	1.10*0.60	AC220/50HZ	1.5	420	1.30*0.90*1.90
Double Mast	YG8 – 200	8	9.7	200	1.15*0.60	AC220/50HZ	1.5	550	1.36*0.90*2.00
Double Mast	YG10 – 200	10	11.7	200	1.35*0.60	AC220/50HZ	1.5	600	1.560.971.90
Double Mast	YG12 – 200	12	13.7	200	1.45*0.60	AC220/50HZ	1.5	700	1.68*0.97*2.00
Double Mast	YG14 – 200	14	15.7	200	1.45*0.60	AC220/50HZ	1.5	800	1.68*1.10*2.35
Triple Mast	YG10 – 320	10	11.7	200	1.57*0.90	AC220/50HZ	2.2	900	2.00*1.25*2.00
Triple Mast	YG12 – 320	12	13.7	200	1.57*0.90	AC220/50HZ	2.2	900	2.10*1.25*2.00
Triple Mast	YG14 – 320	14	15.7	200	1.57*0.90	AC220/50HZ	2.2	1000	2.10*1.25*2.35
Triple Mast	YG16 – 320	16	17.7	200	1.57*0.90	AC220/50HZ	2.2	1000	2.10*1.25*2.65
Four Mast	YG10 – 420	10	11.7	200	1.47*0.85	AC220/50HZ	2.2	1100	2.00*1.25*1.90
Four Mast	YG12 – 420	12	13.7	200	1.57*0.90	AC220/50HZ	2.2	1200	2.10*1.25*2.00
Four Mast	YG14 – 420	14	15.7	200	1.57*0.90	AC220/50HZ	2.2	1300	2.10*1.25*2.35
Four Mast	YG16 – 420	16	17.7	200	1.57*0.90	AC220/50HZ	2.2	1500	2.10*1.25*2.65
Four Mast	YG18 – 420	18	19.7	200	1.57*0.90	AC220/50HZ	2.2	1700	2.10*1.35*2.90

Get a Free Quote

Advantages of Vertical Man Lift

• Excellent Mobility: The overall machine is lightweight and highly maneuverable, perfect for scenarios requiring frequent position changes.
• Smooth Lifting Experience: The unique mast guide wheel system ensures a stable lifting process for a comfortable operation experience.
• Outstanding Passability: Its compact design allows the equipment to easily pass through narrow passages and adapt to complex working environments.

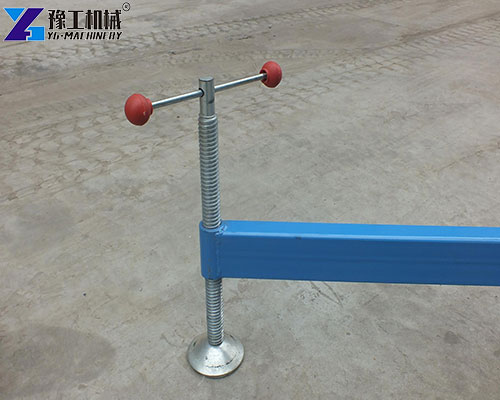

• Reliable Safety Guarantee: The double-protection leg structure greatly enhances operational safety.

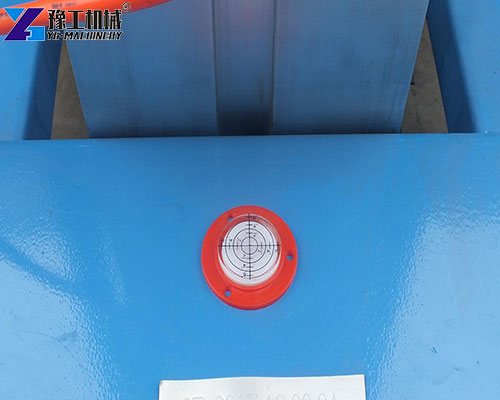

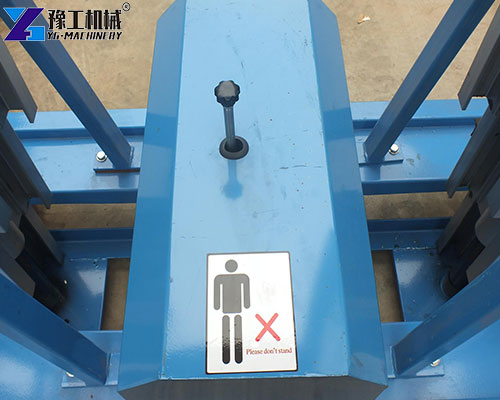

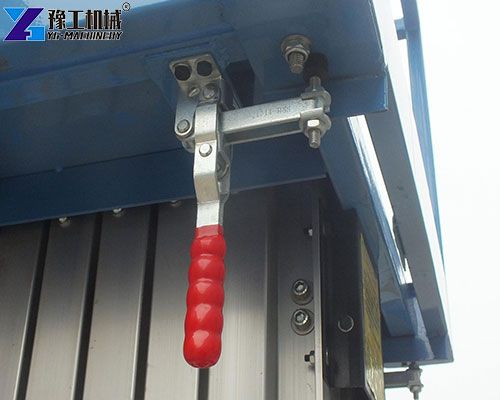

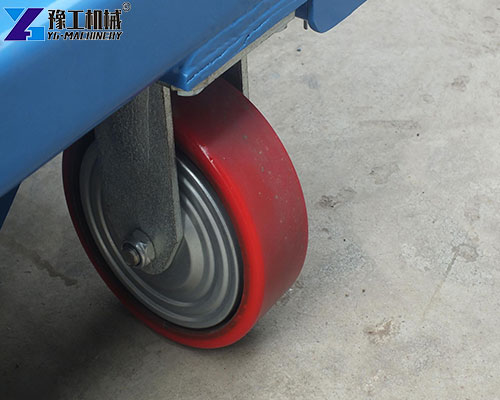

Product Details

Applications of Vertical Mast Lift for Sale

• Electronic Equipment Installation: Suitable for installing devices such as surveillance cameras and alarms.
• Libraries and Archives: Ideal for shelf arrangement and high-level cleaning tasks, where the single mast lift is practical and efficient.
• Hotel Maintenance: In hotel lobbies or guest areas, these single mast lifts are the perfect solution for maintenance work.

Get a Free Quote

Guide to Choosing Between Single Mast Lift and Scissor Lift

• Working Principle Comparison: The vertical man lift uses an aluminum alloy column structure, while the scissor lift adopts a cross-arm lifting mechanism.
• Applicable Environments: The vertical man lift is ideal for limited-space environments, while the scissor type requires a larger working radius.
• Purchase Recommendation: Select the suitable vertical mast lift for sale model based on your specific work environment needs.

YG Machinery’s Competitiveness

• Global Market Reach: Our products have been successfully exported to New Zealand, Spain, Portugal, the Netherlands, the United States, and many more countries.
• Strict Quality Certification: We are CE-certified by the European Union, ensuring every unit meets international standards.
• Continuous Innovation: We constantly improve the performance of our vertical mast lifts to meet diverse customer needs.
• Professional Service Team: We provide full technical support from selection to after-sales service.

YG Machinery is your trusted partner! We offer premium-quality vertical mast lifts, with each unit strictly tested to guarantee exceptional performance. Choosing YG Machinery means choosing professionalism and peace of mind. In addition, YG also provides boom lifts, scissor lifts, forklifts, and stackers. Feel free to contact us anytime!【WhatsApp/WeChat/Phone】+86 13837122632
