YG Machinery’s automatic sand blaster combines high precision, efficiency, and intelligent features to provide a professional solution for surface cleaning and finishing of large-scale or complex workpieces. Whether in automotive manufacturing, aerospace, or steel structure fabrication, this equipment helps enterprises achieve consistent, high-quality results while reducing labor input and improving production efficiency. In addition, YG also offers dry-type and wet-type mobile sandblasting equipment as alternatives. Feel free to contact us for more information!【WhatsApp/WeChat/Phone】+86 13837122632
Automatic Sand Blaster Specifications
| Parameter | Specification |
| Host device dimensions | 1600*3000*3150mm |
| Equipment working room size | 1300*1000*1000mm |
| Dust box dimensions | 1200*1200*2400mm |
| Dust removal fan | 380V/50HZ, 5.5KW |
| Automatic conveying motor | 380V/50HZ, 0.75KW (speed adjustable) |
| Automatic conveying mechanism | 380V/50HZ, 0.37KW (speed adjustable) |
| Lighting system | 3W fluorescent lamps 3pcs, total 18W |
| Number of guns | 12pcs (boron carbide aluminum nozzles) |
| Sand bucket capacity | 3pcs |
| Workstation quantity | 8 (customizable to 12) |
| Working air pressure | >5bar(kg/cm²) |
| Air consumption | 8~12m³/min |
| Load capacity in studio | ≤50Kg |
| Total power | 11Kw |
| Total weight | 1750Kg |
Intelligent Control System of Automatic Sand Blaster
The core advantage of this automatic sand blasting machine lies in its advanced intelligent control system:
- Smart recognition: Automatically detects workpiece material and geometry to optimize processing parameters.
- Precise parameter adjustment: Automatically adjusts blasting intensity and angle according to different workpiece characteristics.
- User-friendly interface: Simplifies operation and reduces staff training costs.
- Self-diagnosis: Monitors equipment status in real-time and promptly alerts operators to faults.

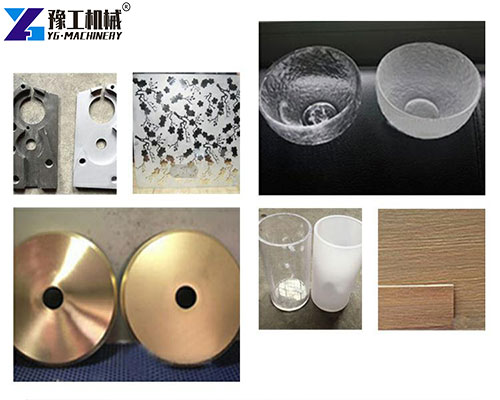

Wide Range of Applications
The versatility of the automatic blasting machine allows it to play a crucial role across multiple industries:
- Aerospace: Surface treatment for precision parts to meet strict industry standards.
- Automotive manufacturing: Deburring and pre-treatment of vehicle components, enhancing coating adhesion.
- Steel structure projects: Corrosion protection for large components, extending service life.
- Mold processing: Polishing precision molds to ensure high-quality surfaces.
Process Advantages of Automatic Sand Blasting Machine
Using the automatic sandblasting machine, users can achieve significant process improvements:
- Uniform surface quality: Ensures consistent treatment across every area of complex geometries.
- Environmentally friendly production: No chemical solvents required, avoiding secondary pollution and aligning with green manufacturing trends.
- Excellent treatment effect: Workpiece surfaces are smoother, with greatly improved coating adhesion and corrosion resistance.
- Wide material adaptability: Suitable for metals, non-ferrous alloys, and non-metal materials.
Economic Benefits Analysis
Choosing YG Machinery’s automatic sand blaster provides clear economic advantages:
- Reasonable initial investment: No need for complex automation systems, lowering equipment purchase cost.
- Optimized operating costs: Energy consumption is only 11Kw, achieving significant energy savings.
- Easy maintenance: Modular design allows quick and convenient routine maintenance.
- High production efficiency: 8 workstations operate simultaneously, maximizing equipment utilization.
Customization and Service Capability
YG Machinery offers flexible customization for each automatic sand blasting machine:
- Customizable workstation quantity: Standard 8 workstations, expandable to 12 to meet special requirements.
- Processing capacity adaptation: Working room size can be adjusted according to product features.
- Dedicated nozzle configuration: Boron carbide aluminum nozzles ensure stable long-term operation.
- Optimized conveying system: Adjustable speed meets different production cycle requirements.
YG is committed to helping customers enhance product quality and production efficiency through innovative technical solutions, driving the transformation and upgrading of the manufacturing industry. Contact our technical team to learn more about this automatic sandblasting machine.【WhatsApp/WeChat/Phone】+86 13837122632
