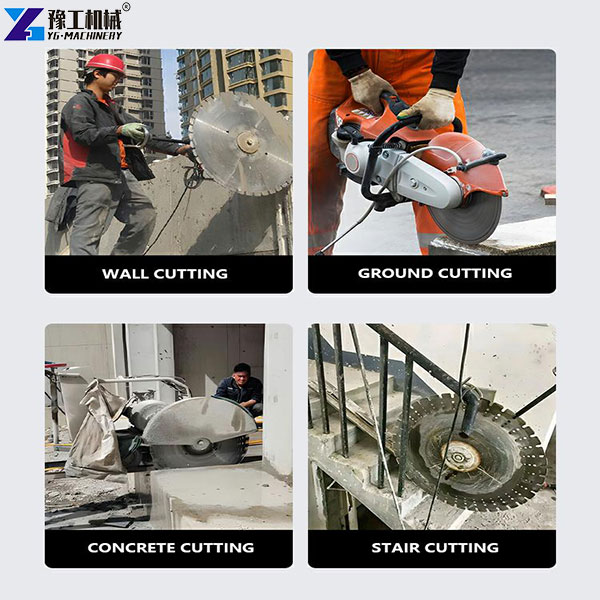

Concrete wall saw for sale is mainly used for cutting and slotting reinforced concrete walls, brick walls, or stone materials. It easily handles large-area wall cutting tasks like doorways, windows, or elevator shafts during building renovations, reinforcements, or design changes. Classified by power, they mainly include hydraulic concrete wall saws, high-frequency wall saws, and electric wall saws. YG factory’s premium products are ready to boost your projects—contact us for quotes!
【WhatsApp/WeChat/Phone】+86 13837122632
Concrete Wall Cutting Saw Key Parameters

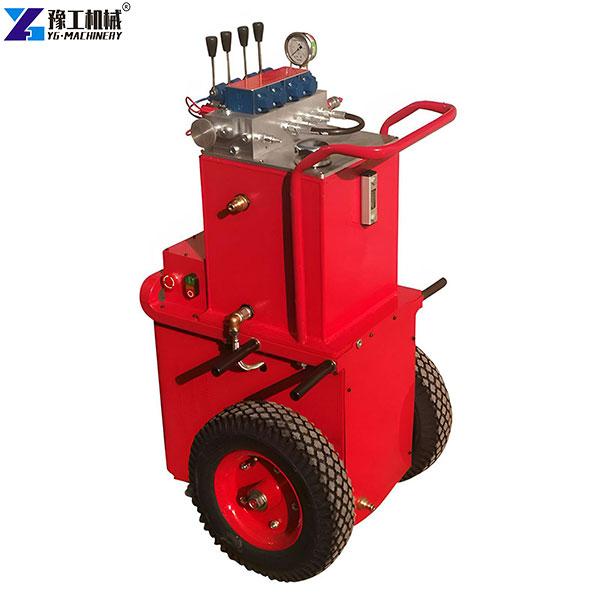

Hydraulic Concrete Wall Saw:
| Hydraulic Oil Pump | Model | YG 600 | YG 700 |
| Max. power | 25KW | 30KW | |
| Motor cooling method | Air cooling | water cooling | |
| Rated voltage | 380V 50HZ | 380V-420V 50HZ-60HZ | |
| Pressure stages | 3 | 3 | |
| Max. operating pressure | 200bar/20Mpa | 210bar/21Mpa | |
| Oil flow rate | 30-80L/min | 40-100L/min | |
| Dimensions | 600mm*650mm*1050mm | 500mm*520mm*1100mm | |
| Weight | 220kg | 140kg | |
| WallSaw | Saw blade diameter range | 800-1400mm | 800-1600mm |
| Cutting depth | 620mm | 730mm | |
| Max. working pressure | 180bar/18Mpa | 200bar/20Mpa | |
| Max. oil flow rate | 100l/min | 100l/min | |
| Gearing | Gear | Gear | |
| Rotation speed | 450/950/1300Rpm | 450/850/1200Rpm | |
| Dimension | 400mm*420mm*400mm | 400mm*420mm*400mm | |
| Weight | 38kg | 39kg |
High-Frequency Wall Saw:
| Saw Blade | |
| Max. cutting depth | 510mm |
| Max. saw blade | φ1200mm |
| Saw blade fixing(flush cuts) | 6 countersunk head screws,110mm graduated circle. |
| Electric motor(water cooling & high frequency) | |
| Max. Output Power | 16kw |
| IP Classification | IP 67 |
| Weight | |
| Wall Saw 105DM Incl. Feed Electric Motor | 27kg |
| Electric Main Motor 16kw | 18kg |
| Control Unit | |
| Voltage | 380-460V(single phase available) |
| Frequency | 50Hz/60Hz |
| Weight | 19kg |
| Wireless Control | 2kg |
Electric Wall Saw:
| Model | YG-800 | YG-1000 | YG-1200 |
| Saw blade diameter | 800mm | 1000mm | 12mm |
| Cutting depth | 300mm | 400mm | 500mm |
| Power | 6150w | 6150w | 6150w |
| Cutting Efficiency | 3-6m/H | 3-6m/H | 3-6m/H |
| Color | Customer required | Customer required | Customer required |
Types of Concrete Wall Saw for Sale
- Hydraulic Concrete Wall Saw: Composed of a power station and a saw head (hydraulic motor), it relies on strong hydraulic power to tackle high-strength, thick reinforced concrete. With high efficiency and stability, it’s ideal for large-scale building renovations.
- High-Frequency Wall Saw: Utilizing high-frequency vibration technology, it achieves fast and precise cutting with a smooth surface, reducing follow-up grinding. It’s widely used in projects requiring high cutting accuracy.
- Electric Wall Saw: Easy to operate and highly mobile, it suits confined spaces or environments with strict noise/dust control, making it perfect for small-scale construction.
Outstanding Advantages of YG’s Wall Mounted Concrete Saw
- Superior Performance: Advanced technology and high-quality materials ensure concrete wall saw for sale delivers strong power and excellent cutting efficiency, adapting to complex construction environments.
- Durability: Through rigorous quality testing, key components feature high wear and corrosion resistance, ensuring long service life and low maintenance costs.
- Customer-Centric Service: We provide professional pre-sales consultation, installation, and after-sales maintenance, offering worry-free use of wall mounted concrete saw.

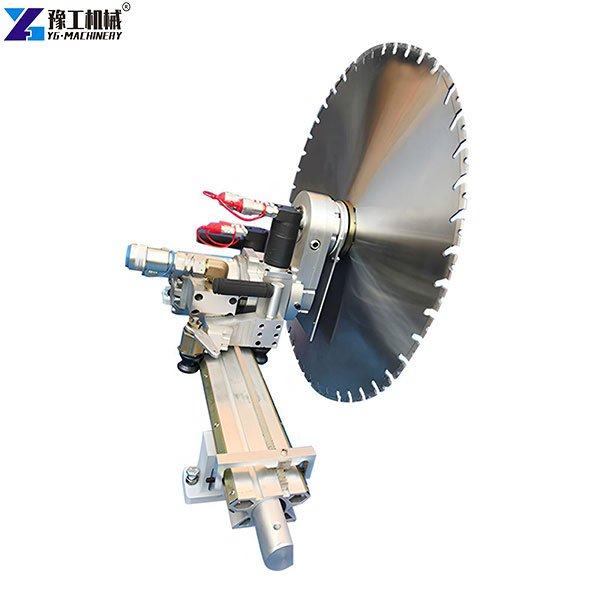

Concrete Wall Cutting Cost
If you’re seeking affordable, high-performance, and reliable concrete wall saw for sale—whether hydraulic concrete wall saw, high-frequency wall saw, or other types of concrete wall cutting saw—YG has tailored solutions for you. Contact us today for detailed product info and special offers! We also supply premium equipment like wire saw machines, rock splitters, excavator rock splitters, excavator drill&splitting machines, mobile crushers for sale, excavator hydraulic shears, pile breakers, diesel pile hammers and excavator drum cutters.
【WhatsApp/WeChat/Phone/Skype】+86 13837122632
