In municipal construction, pipeline installation, tunnel engineering, and support works, the H-beam hydraulic pile extractor is a key piece of equipment for efficient and safe pile removal. It grips the pile head through a hydraulic system and lifts the H-beam piles segment by segment, achieving fast extraction and improving construction efficiency. The compact structure allows it to operate flexibly in tight sites and areas with limited headroom. Contact us to get your customized quotation now!【WhatsApp/WeChat/Phone】+86 13837122632
Technical Specifications of H-Beam Hydraulic Pile Extractor
To meet different working conditions and pile sizes, YG offers multiple models of hydraulic pile extractors. The main specifications are as follows:
Model
YG-BZ-500H
YG-BZ-630H
YG-BZ-800H
Maximum Output of Large Top Cylinder (tons)
500
630
800
Maximum Output of Small Top Cylinder (tons)
100
100
100
Maximum Output of Clamp Cylinder (tons)
250
250
250
Suitable H-Beam Specifications
488×300mm – 800×300mm
488×300mm – 800×300mm
488×300mm – 800×300mm
High-Pressure Pump
A7V-160LV
A7V-160LV
A7V-160LV
Maximum Flow
160 L/min
160 L/min
160 L/min
Working Pressure
31.5 MPa
31.5 MPa
31.5 MPa
As the table shows, different models of vibratory pile extractor can meet the requirements of small to large H-beam pile extraction, offering flexibility for various construction projects.
Working Principle of H-Beam Hydraulic Pile Extractor
The pile extractor works by firmly gripping the pile head with the clamp, while the hydraulic cylinder exerts upward force to lift the pile segment by segment. When the operator sends a command from the cabin, hydraulic oil drives the piston rod to extend and retract, opening and closing the clamp jaws. This process lifts the pile steadily without manual contact, making it safe and efficient. It is suitable for clay, sandy soil, and soils with small amounts of gravel, ensuring that H-beam and I-beam piles remain undamaged during extraction.
Key Advantages of YG’s Sheet Pile Extractor
High Efficiency: The hydraulic lifting power is strong enough to quickly extract H-beam piles, significantly improving construction efficiency.
Safety and Reliability: Simple operation reduces direct contact with piles, lowering risks for workers.
Material Recycling: Extracted H-beams can be reused, reducing material waste and costs.
Adaptable to Various Conditions: Suitable for tight construction sites, limited overhead space, and complex soil layers.
Multiple Model Options: Different models of sheet pile extractor cater to small to large-scale construction projects.

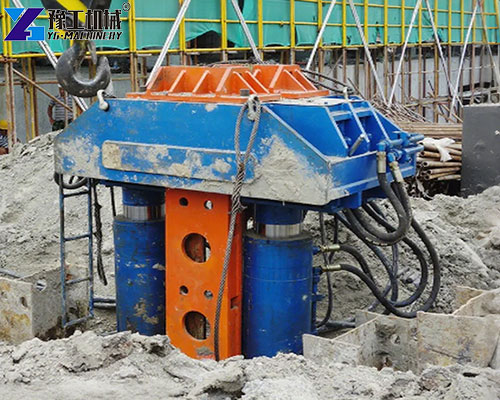

H-beam hydraulic pile extractor

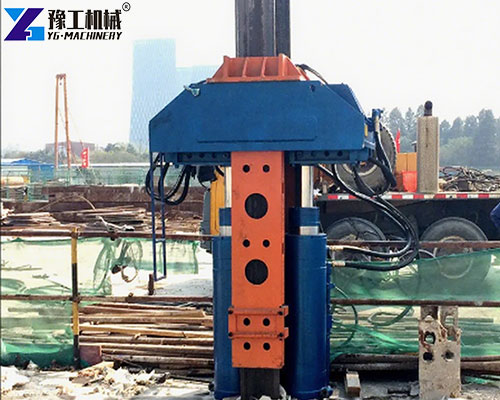

vibratory pile extractor application
Applications of the Pile Extractor
Municipal Construction: Removal of bridge foundations and road piles.
Pipeline Installation: Recovery of underground piles before pipeline construction.
Tunnel Engineering: Extraction of piles during tunnel excavation and support installation.
Sewage Treatment and Support Works: Reduces manual handling risks and improves construction safety.
Regardless of site size or soil complexity, the pile extractor delivers stable and efficient performance.
Why Choose H-Beam Hydraulic Pile Extractor?
Improved Efficiency: Hydraulic lifting enables fast pile extraction, reducing construction time.
Safety and Reliability: Simple operation avoids direct manual contact with piles.
Cost Reduction: Steel can be recycled, reducing one-time material expenses.
Adaptable to Various Conditions: Suitable for different soil types and tight spaces.
Reliable Supplier
As the direct manufacturer of pile extractors, YG provides complete pre-sale, in-sale, and after-sale services without middleman markups. Customers can purchase high-quality equipment with confidence, enjoying professional technical support and customized services, ensuring every pile extractor is durable and reliable.
For companies seeking higher construction efficiency, cost savings, and safety, the H-beam hydraulic pile extractor is indispensable. Choosing YG means worry-free procurement and support. In addition, YG also offers high-quality excavator attachments such as car dismantling shears, milling excavators, rock saws, ripper tools, and orange-peel grapples. Contact us today for a customized quote!【WhatsApp/WeChat/Phone】+86 13837122632
