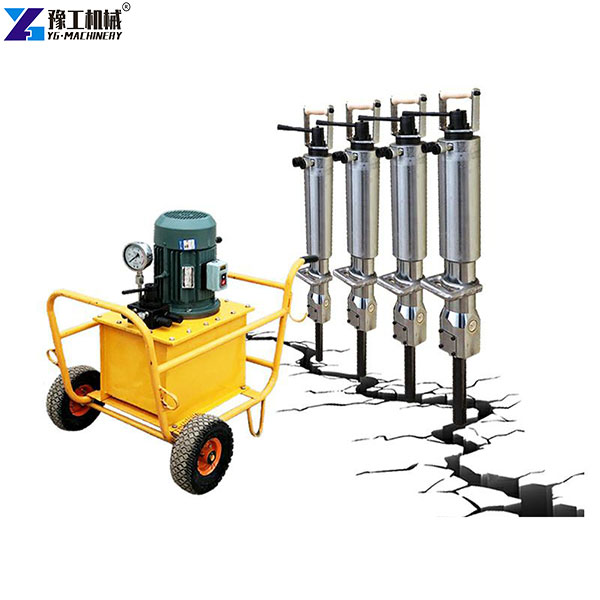

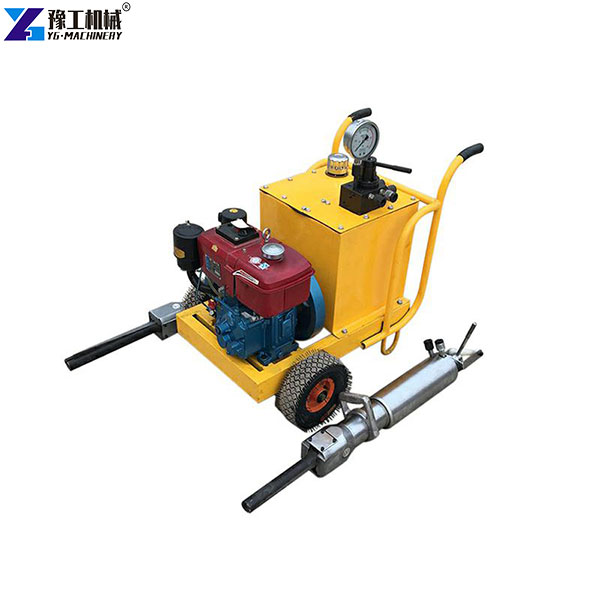

In construction, renovation, engineering, and ore mining, the hydraulic stone splitter plays a crucial role. It can effortlessly achieve the secondary disintegration of large ore pieces and efficiently complete the partial or full demolition of concrete components. Its safe, reliable, fast-operating, and oil-pressure-adjustable features make construction work much easier and more efficient. The stone splitter hydraulic has a pump station (electric/diesel) and splitter. For quotes, contact us!
【WhatsApp/WeChat/Phone】+86 13837122632
Hydraulic Rock Splitter for Sale Parameters
| Model | YG-250 | YG-350 | YG-450 |
| Wedge Length(mm) | 250mm | 350mm | 450mm |
| Piston Stroke(mm) | 90/220mm | 90/220mm | 90/220mm |
| Drilling Depth(mm) | >500mm | >700mm | >900mm |
| Punching Diameter(mm) | 42mm | 46mm | 46mm |
| Crack Width(mm) | 10-20mm | 10-20mm | 10-20mm |
| Cleavage Time(s) | 10-15/s | 10-15/s | 10-15/s |
| Splitting Force(T) | 500t | 800t | 800t |
| Weight(kg) | 240kg | 250kg | 260kg |

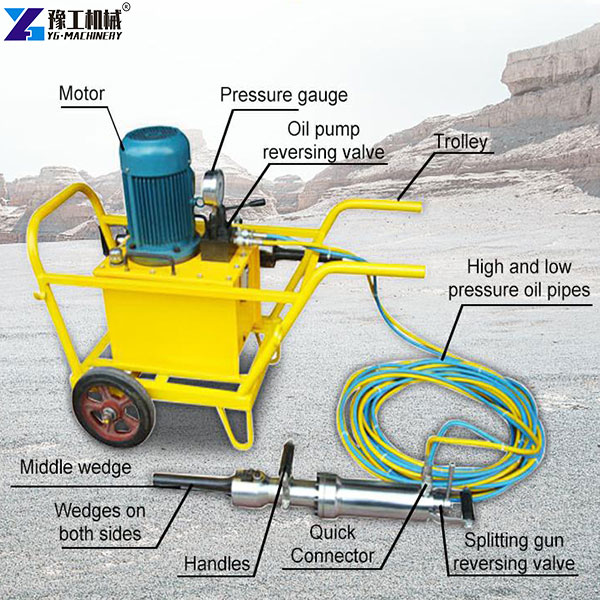

Stone Splitter Hydraulic Working Principle
The hydraulic stone splitter works scientifically. The pump station precisely outputs high-pressure oil to power the cylinder, generating huge, controlled thrust. When the oil pushes the splitting gun’s middle wedge, side wedges smoothly spread, splitting objects rapidly as intended. Accurate and efficient, it accelerates projects, boosting popularity.

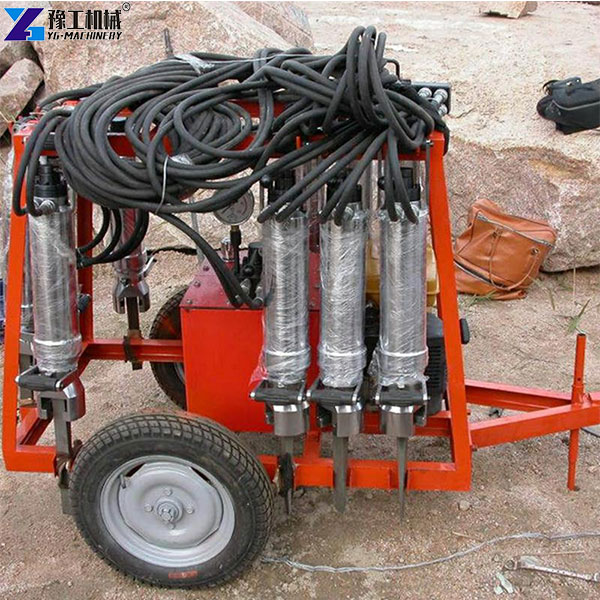

Usage Notes for Piston Rock Splitter
When using the piston rock splitter, remember:
- Operation: Don’t shake the splitting gun before oil returns. Don’t sway when pulling it out. Never use it as a crowbar to avoid damage.
- Oil Pipes: If pipes bulge, replace them promptly (one for pressure, one for oil return).
- Pressure Gauge: At 20mpa, if the gauge doesn’t drop after turning off the motor, the relief valve is broken; if it returns to zero, the directional valve seal is damaged.
- Hydraulic Oil: Fill with 46-grade oil (38L, 90% of the scale) before starting. Otherwise, the pump may fail due to idling. Proper use ensures long-term stability.
Advantages of Hydraulic Stone Splitter
- High-efficiency Operation: Capable of splitting rocks and concrete in a matter of seconds, these splitters significantly shorten project timelines. Their powerful thrust allows for quick completion of tasks that would otherwise take much longer.
- Cost-effective Solution: By minimizing the need for additional labor and reducing potential damage to adjacent areas, it saves on overall project costs. Their long-lasting components also cut down on maintenance expenses.

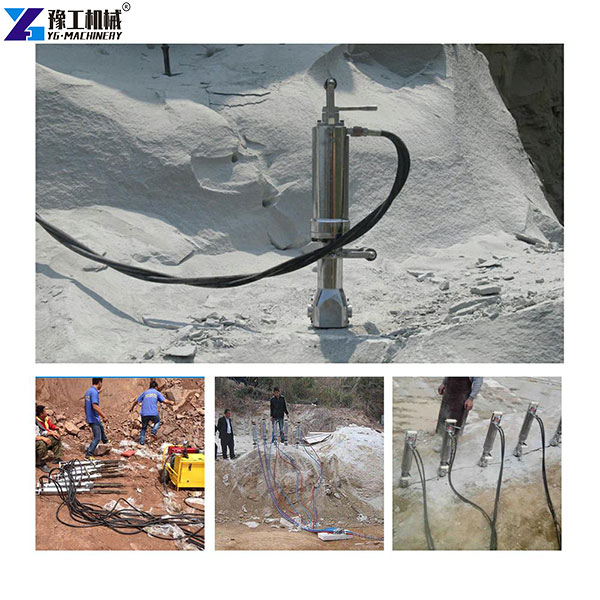

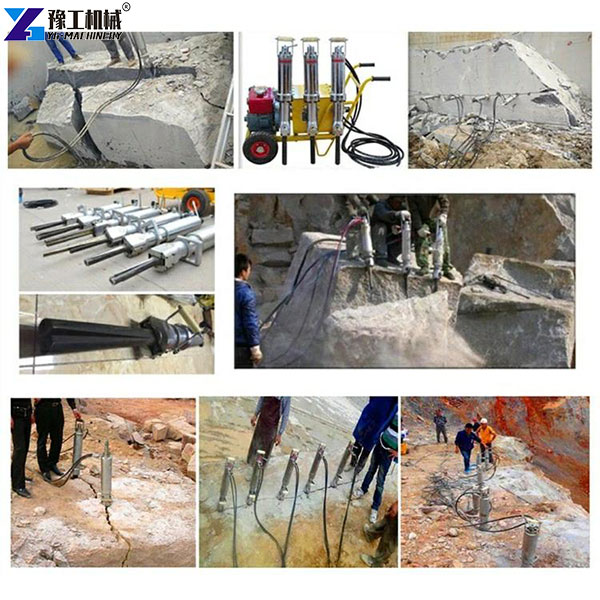

- Versatile Applications: Whether it’s large-scale mining operations, small-scale construction projects, or precise demolition work, this equipment can adapt to various scenarios, making it an ideal choice for different industries.
- Safety-first Design: it operates in a static hydraulic environment, eliminating risks associated with explosive-based equipment like blasters. This means no shock waves or flying debris, and it requires fewer complex safety measures, ensuring a secure working environment for all.
- High-Precision Splitting: Unlike most traditional demolition methods and equipment, it allows for precise pre-determination of the splitting direction, shape, and size of the required parts. This high-precision splitting minimizes errors, ensuring that each task is completed with utmost accuracy.
Hydraulic Rock Splitter for Sale in YG Machinery

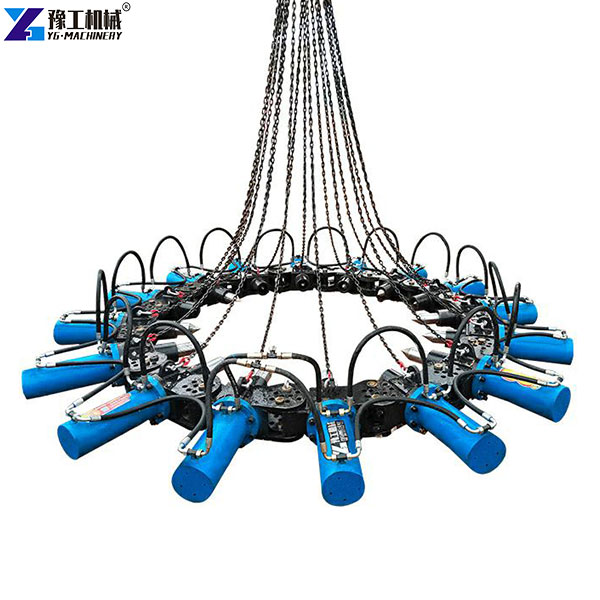

YG factory’s hydraulic stone splitter undergoes strict quality checks. With excellent performance, it wins customers’ trust. For a quality rock splitter, contact us! YG also sells excavator rock splitters, excavator drill&splitting machines, mobile crushers for sale, excavator hydraulic shears, excavator drum cutters, excavator crusher buckets, pile breakers, diesel pile hammers, wire saw machines, crawler wire saw machines, stone wire saw, etc.
