Mini Excavator Digger

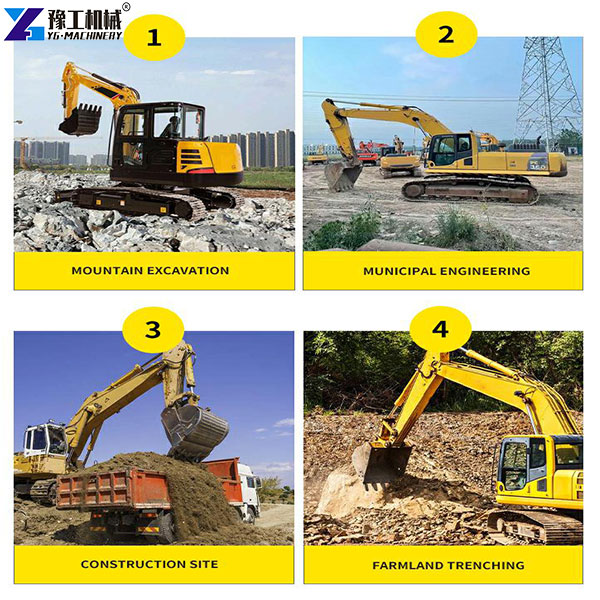

The mini excavator digger is a small and flexible construction machine, widely used in rural construction, municipal maintenance, orchard renovation, and other scenarios. It can easily handle excavation work in narrow spaces and complete various tasks with attachments like breakers and grapples. With the advantages of high efficiency and low consumption, it has become an ideal choice for small-scale projects. Want to know more about the equipment and exclusive quotes? We are online 24 hours a day. Contact us to enjoy discounts!【WhatsApp/WeChat/Phone】+86 13837122632

Get a Free Quote

Parameters of Mini Excavator Digger

Parameters of hot-selling models:

Model	YG-08	YG-09	YG-10	YG-12
Operation weight	680KG	680KG	820KG	850KG
Engine（customized）	Coop192 G2, E5+50,B&S-gas	Coop192 G2, E5+50,B&S-gas	Coop192 G2, E5+50,B&S-gas	Coop192 G2, E5+50,B&S-gas
Power	7.6kw/12PH	7.6kw	7.6kw	7.6kw
Hydraulic cylinder, pump, valve(customized)	Warranty 1 year	Warranty 1 years	Warranty 1 year	Warranty 1 year
Bucket capacity	0.03CBM	0.03CBM	0.03CBM	0.03CBM
Rotation speed	10r/min	11r/min	11r/min	11r/min
Overall dimension(L*W*H)	2430mm*720mm*1390mm	2430mm*720mm*1390mm	2700mm*910mm*1480mm	2870mm*1000mm*2030mm/2285mm(With shed)
Crawler grounding length	1140mm	1140mm	1200mm	1200mm
Crawler width	150mm	150mm	180mm	180mm
Max digging height	2350mm	2500mm	2680mm	2580mm
Max discharge height	1600mm	1600mm	1700mm	1745mm
Max digging depth	1300mm	1300mm	1600mm	1700mm
Max digging radius	2400mm	2450mm	2850mm	3030mm
Mini turning radius	1100mm	1100mm	1290mm	1290mm
Platform  clearance to ground	380mm	370mm	370mm	370mm
Swing angle	360°	360°	360°	360°
Climbing gradient	30°	30°	30°	30°
Bulldozer Max  depth	150mm	190mm	190mm	170mm
Bulldozer Max raising height	260mm	260mm	260mm	240mm
Walking speed	2.5km/h	2.3km/h	2.5km/h	2.5km/h
Bucket digging force	6.5KN	6.5KN	10.7KN	11.5KN
Hydraulic system press				16MPa

Get a Free Quote

Product Features of Mini Excavator Digger

It not only has excellent basic performance, but also highlights quality in detailed configurations:

• Reliable and durable core components: It adopts Continental hydraulic hoses from Germany, an internationally renowned brand, with excellent quality and durability. The hoses are protected by springs and spirals to prevent wear and collision. The hydraulic hoses are neatly arranged, beautiful, and easy to maintain. It is equipped with a steel galvanized globe valve, which is easy to operate and prevents oil leakage when replacing auxiliary equipment. More than 80% of the whole machine is made of steel, and all use galvanized screws, making it very strong and durable. The bottom is equipped with a 40kg counterweight to make the machine run more smoothly.
• Outstanding adaptability and safety: It has the standard side swing function of excavators, suitable for more working environments, and easy to operate. It is equipped with a steel handrail frame for safe and convenient access. The stainless steel ceiling is rainproof and sunproof, preventing falling gravel from high altitude and effectively protecting the driver. The 42mm diameter ceiling bracket is thicker and more durable than similar products.
• Both operation and comfort: The simple and beautiful operating platform has a clear timing instrument, which is convenient for timing rental and regular maintenance. It is equipped with a voltmeter, 9 LED light switches, a one-button start keyhole with a dust cover, and the operating lever is equipped with a rubber dust cover. The front and rear adjustable seat, with adjustable backrest angle and armrests, is as comfortable as a sofa, effectively relieving fatigue during driving, and is equipped with a cup holder.
• Intimate and practical design details: The openable rear cover is convenient to access, equipped with exhaust holes for effective heat dissipation and beautiful appearance. Both the air vent and exhaust port are protected by sound-absorbing cotton and silicon cotton, which can effectively dissipate heat and reduce noise.

Get a Free Quote

High Cost Performance Advantages of Mini Excavator Machine

From the perspective of self-use, the mini excavator machine can replace manual work to complete tasks such as digging pits and pushing soil, greatly shortening the project cycle and reducing labor costs. Take rural house construction as an example, the foundation excavation work that originally required many people for many days can be completed quickly with it, and the long-term use has significant cost performance.
From the perspective of rental, the mini digger price is moderate. After purchase, it can be rented out, with stable market demand and fast cost recovery. At the same time, the mini digger price is transparent, and the later maintenance cost is low, which is suitable for starting a business to increase income.

Reliable Compact Excavator Sales Supplier

YG Company has rich experience in the field of compact excavator sales, and all equipment has passed strict quality inspection. YG’s equipment not only has reliable performance, but also provides perfect warranty services, so that you have no worries.
Whether you use it for self-built houses, orchard management, or investment and rental, the mini excavator digger is a cost-effective choice. Choosing YG means choosing quality and peace of mind. Contact us immediately to start an efficient operation journey! In addition, YG Machinery also sells high-quality equipment such as lifting platforms, spider cranes, concrete pumps, and folding houses.【WhatsApp/WeChat/Phone】+86 13837122632
