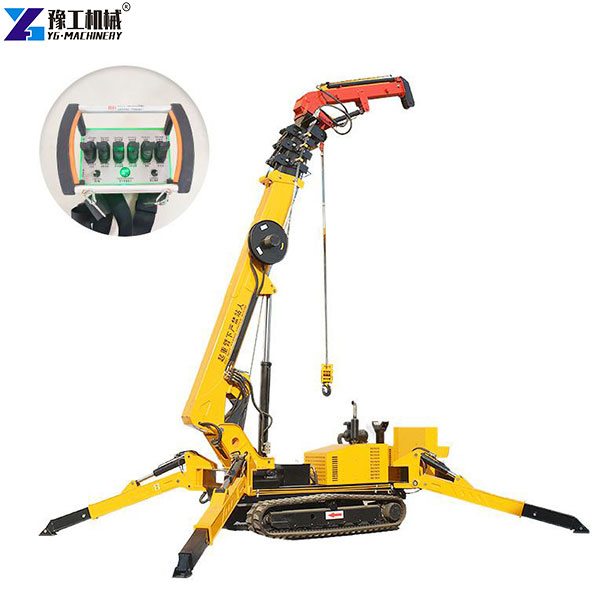

Mini Tracked Crane for Sale

A mini tracked crane is a small lifting device designed for narrow spaces. It can be operated via a wireless remote control or a body switch, with efficient operation. It ends the history of relying on manual labor in narrow spaces, greatly improving efficiency while ensuring safety. Models and configurations can be customized, and it is easy to operate and learn. It is suitable for narrow places where large cranes cannot work, and comes standard with hybrid power (oil and electricity). Want to know more? Contact us for a quote, and we also provide product manuals.【WhatsApp/WeChat/Phone/Skype】+86 13837122632

Get a Free Quote

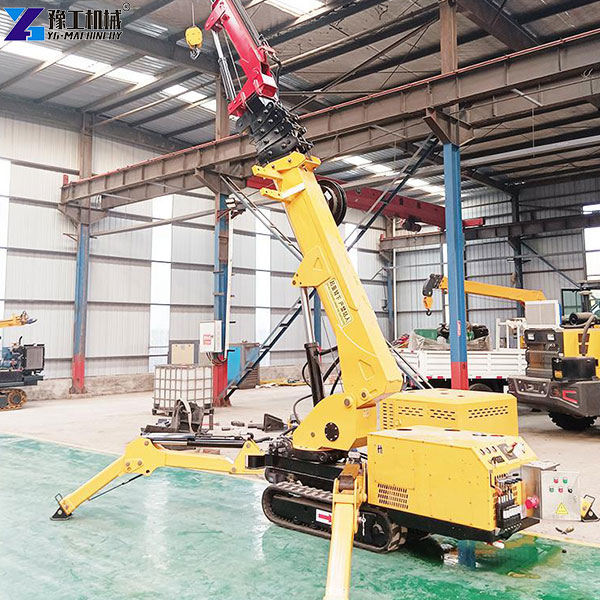

Parameters and Advantages of Hot-Selling Mini Tracked Crane

Model		YG-3	YG-5	YG-8
Specification		3t	5t	8t
Maximum working radius		8.83m×0.15t	14m×0.5t	16.5m
Maximum above-ground head		9.9m×0.7t	16.8m	18m
Winch device	Hook Speed	0-8m/min(4 rope)	12m/min(4 rope)	12m/min(4 rope)
	Rope diameter	φ8mm×45m	Φ11mm×80m	Φ11mm×80m
Telescopic system	Boom Type	5-section boom, pentagonal structure	5-section boom, pentagonal structure	5-section boom, pentagonal structure
	Boom Length/Time	3.1m-9.2m/20sec	12.3m/54sec	12.3m/54sec
Up and down	Boom Angle/Time	0°~78°/13sec	0°~78°/13sec	0°~78°/13sec
Slew system	Slew Angle/Speed	0-360°continuous/60sec	0-360°continuous/38sec	0-360°continuous/38sec
Traction system	Walking Way	Hydraulic motor drives	Hydraulic motor drives	Hydraulic motor drives
	Walking Speed	0~2.5km/h	0~2.5km/h	0~2.5km/h
	Grade Ability	(25°)36%	(25°)36%	(25°)36%
Operating system	Operation type (Boom/outrigger)	Manual operation, manual walking(remote control option)	Manual operation, manual walking(remote control option)	Manual operation, manual walking(remote control option)
	Operating characteristics	Manual operation, remote control	Manual operation, remote control	Manual operation, remote control
Transport parameters	L*W*H(mm)	2950*980*1560	5000*1500*1900	5000*1600*2180
	Total weight(kg)	2700	6200	7200

Get a Free Quote

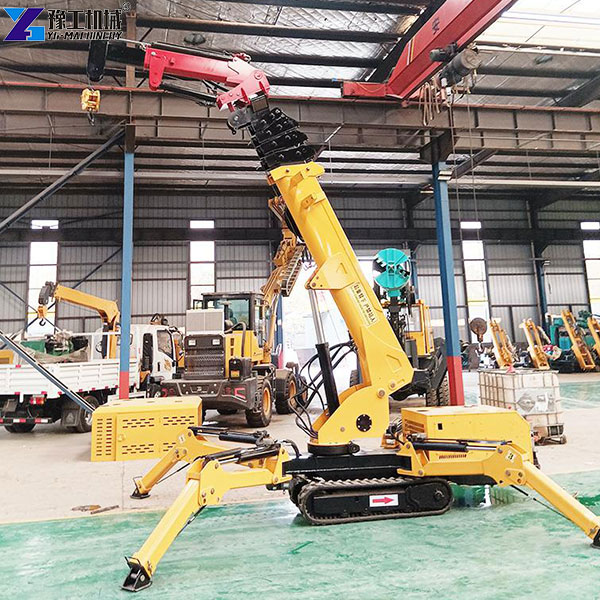

Working Principle and Application of Small Tracked Crane

A small tracked crane is driven by hydraulics. Its rubber crawler walking device ensures stable movement on complex ground. Lifting, telescoping, and other actions are precisely controlled by the hydraulic system, enabling efficient lifting. Optimized through 3D modeling, finite element analysis, and overall calculation, it has a stable structure, flexible operation, good overall flexibility, easy operation, flexible movement, reliable durability, and convenient maintenance.

Its unique design adapts to special scenarios: with a vacuum glass sucker installed on the hook, it can accurately install glass under the eave. This is exactly the original intention of the mini tracked crane — to complete the glass installation efficiently.

Practical Performance Of Mini Spider Crane for Sale in Europe and South America

Case 1: Indoor glass curtain wall installation in Milan, Italy

During the renovation of a historic building in downtown Milan, a three-story glass curtain wall needed to be installed in a narrow corridor. The construction team chose a mini spider crane for sale: “The corridor is only 1.2 meters wide, so large equipment can’t enter. This device has narrow crawlers and strong passability. With a vacuum sucker, it finished installing 20 glass panels in 3 days, 5 times faster than manual work.”

Case 2: Lane maintenance in Rio de Janeiro, Brazil

During the maintenance of an old lane in Rio, small equipment needed to be lifted to replace pipes. Mini tracked crane for sale solved the problem: “The lane is less than 2 meters wide. After the device entered the site, it was operated by wireless remote control, accurately lifting 1.5-ton pipes. No personnel were in danger throughout the process, which was efficient and safe.”

Get a Free Quote

Choose YG Machinery for “Worry-Free” Operation in Narrow Spaces

Mini tracked crane for sale has passed strict tests to ensure stable operation in complex environments. YG Machinery provides customization services, adjusting parameters according to your operation needs. Our professional after-sales team offers installation guidance and maintenance support, eliminating worries about procurement.

If you are still troubled by low efficiency and poor safety in narrow space operations, a mini tracked crane is the answer. Whether it is the precise glass installation in European cases or lane maintenance in South American scenarios, it has proven with strength: small size has great power, and can accurately solve the pain points of narrow space operations.

Don’t let site restrictions slow down your project progress. Contact us now to get exclusive quotes and solutions, and start an efficient and safe operation experience! In addition, YG also has high-quality equipment such as lifting platforms, curved arm lifts, and forklifts.【WhatsApp/WeChat/Phone/Skype】+86 13837122632
