Mini concrete pump machine stands out as the go-to equipment for small-scale projects in construction scenarios, thanks to its compact design and superior performance. It accurately conveys concrete, adapts to pumping small-aggregate concrete and mortar, and effortlessly handles narrow-space operations. Whether for rural home construction or small infrastructure projects, it plays a pivotal role. To learn how this machine boosts project efficiency, contact us for a mini concrete pump price.
【WhatsApp/WeChat/Phone】+86 13837122632
Tow Behind Concrete Pump Technical Specifications
Below are detailed parameters of different mini concrete pump machine models to help you select the right fit:
| Model | YG-20 | YG-30 | YG-40 | YG-50 |
| Motor power | 22KW | 37KW | 45KW | 55kw |
| Maximum outlet pressure | 26mpa | 28mpa | 28mpa | |
| Maximum theoretical throughput | 16-18m³/h | 20-22m³/h | 35m³/h | |
| The maximum particle size of aggregate | ≤20mm | ≤30mm | ≤40mm | |
| Vertical conveying distance | 40m | 80m | 120m | 150m |
| Horizontal conveying distance | 80m | 140m | 2600m | 300m |
| Diameter of conveying pipe | 80mm | φ80 (100) mm | φ100 (80) mm | Φ125/100mm |
| Whole machine weight | 1600kg | 2200kg | 2400kg | 2500kg |
| Dimensions | 3400x1200x1600mm | 3600x1500x1600mm | 4000x1500x1550mm | 4200*1700*1750mm |
Tow Behind Concrete Pump Design Advantages
1. Flexible High/Low-Pressure Switching
The unique high-low pressure valve allows switching between high-pressure small-displacement (for high-rise conveying) and low-pressure large-displacement (for large-area foundation pouring) modes, adapting to different construction scenarios.
2. Intelligent Stepless Adjustment
Stepless variable technology synchronizes pump discharge with concrete conditions (e.g., slump, speed), minimizing material waste and controlling costs precisely.
3. Automatic Centralized Lubrication
The fully automatic lubrication system ensures optimal lubrication for moving parts, extending the life of seals and reducing faults, keeping the machine in top condition.
4. Reliable Dual-Pump System
The open-type dual-pump, dual-circuit hydraulic system separates the pumping and reversing circuits for simplicity and reliability, lowering failure rates and easing maintenance.
5. Efficient Temperature Control
A bypass cooling filter and forced air-cooled radiator keep hydraulic oil temperature stable during prolonged use, preventing overheating and ensuring consistent performance.
6. User-Friendly PLC Control
The PLC control system simplifies operation via programmable logic, allowing precise adjustments with minimal setup. Novices can quickly master it, reducing labor complexity.
7. Enhanced Hopper Design
The large-inclination hopper improves material intake efficiency, minimizing waiting time and speeding up the construction process.
8. Smooth S-Tube Valve Flow
The stable S-tube valve ensures unobstructed concrete flow, reducing resistance and enhancing overall pumping efficiency.
Key Features of Portable Mini Concrete Pump
1. Versatile Material Adaptability
Equipped with an S-tube distribution valve, the mini concrete pump machine smoothly handles small-aggregate concrete and mortar, minimizing pipe blockages. It excels in delivering fine mortar for interior wall pouring and ensures seamless flow for small-aggregate concrete, fitting diverse construction needs.
2. Powerful and Stable Performance
The main oil pump uses a variable plunger pump for high efficiency and strong pressure. High-power models (e.g., YG-50) maintain stable pressure for long-distance (e.g., YG-40’s 2600m horizontal reach) and high-altitude (e.g., YG-50’s 150m vertical lift) conveying, ensuring continuous and efficient operation.

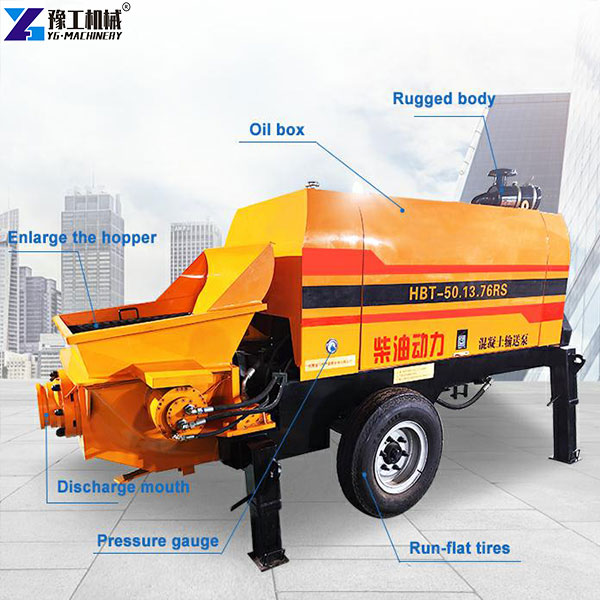

Mini Concrete Pump Machine in YG
YG’s portable mini concrete pump undergoes rigorous testing to deliver reliable, high-performance equipment. With multiple models available, we cater to diverse project needs. If you’re seeking a concrete pumping solution for small-scale projects, contact us to explore mini concrete pump price details and make it your construction ally! YG also supplies concrete mixer pumps for sale, diesel concrete mixers for sale, shotcrete machines, wet shotcrete machines, mortar sprayers, concrete batch plants, industrial diesel generators, sand blasting machines, laser cleaning machines, and micro excavators.
【WhatsApp/WeChat/Phone/Skype】+86 13837122632
