In the field of building renovation and reinforcement, hydraulic wall saw stands out as a preferred tool for professional construction teams. The special wall saw machines can greatly reduce labor intensity and are favored for their excellent safety and stability. It uses linear cutting technology to create neat sections and significantly boost work efficiency. YG’s wall saw has been sold to countries like Saudi Arabia, Qatar, Australia, Canada, France, Chile, and the US. If you’re looking for a reliable wall saw for sale, contact us anytime for a detailed quote!
【WhatsApp/WeChat/Phone】+86 13837122632
Wall Saw Machines Core Parameters

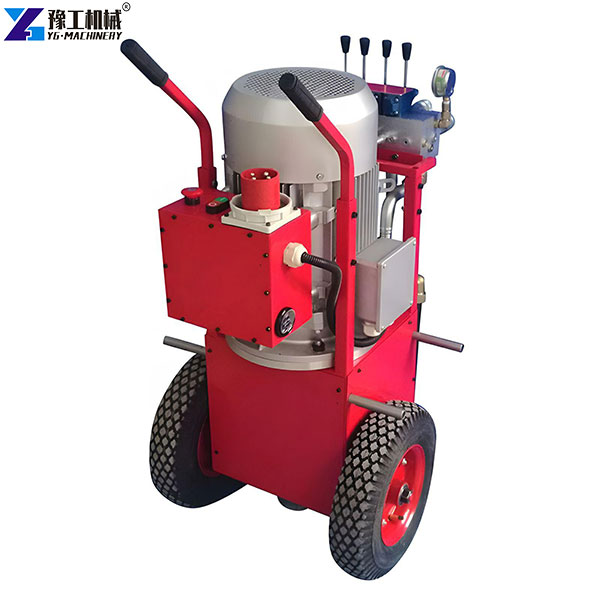

| Hydraulic Oil Pump | Model | YG 600 | YG 700 |
| Max. power | 25KW | 30KW | |
| Motor cooling method | Air cooling | water cooling | |
| Rated voltage | 380V 50HZ | 380V-420V 50HZ-60HZ | |
| Pressure stages | 3 | 3 | |
| Max. operating pressure | 200bar/20Mpa | 210bar/21Mpa | |
| Oil flow rate | 30-80L/min | 40-100L/min | |
| Dimensions | 600mm*650mm*1050mm | 500mm*520mm*1100mm | |
| Weight | 220kg | 140kg | |

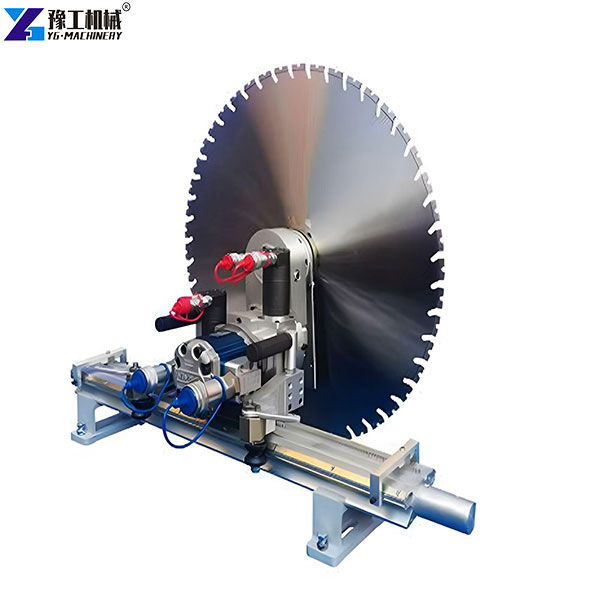

| WallSaw | Saw blade diameter range | 800-1400mm | 800-1600mm |
| Cutting depth | 620mm | 730mm | |
| Max. working pressure | 180bar/18Mpa | 200bar/20Mpa | |
| Max. oil flow rate | 100l/min | 100l/min | |
| Gearing | Gear | Gear | |
| Rotation speed | 450/950/1300Rpm | 450/850/1200Rpm | |
| Dimension | 400mm*420mm*400mm | 400mm*420mm*400mm | |
| Weight | 38kg | 39kg |
Outstanding Performance of Wall Saw for Sale
1. Notable Product Features
- Safe and Reliable: Built-in overload protection shuts down the machine when the load is too high, preventing damage. The hydraulic system has strong sealing to avoid oil leakage, ensuring construction safety. For example, YG 600 has a max working pressure of 200bar/20Mpa, and YG 700 has 210bar/21Mpa, both stable and safe.
- Efficient and Energy-Saving: Compared with traditional cutting equipment, hydraulic wall saw improves work efficiency by 2 – 3 times, greatly shortening the construction period, reducing labor costs, and enhancing bidding advantages. Parameters like oil flow rate of different models suit various project rhythms, facilitating efficient construction.
- Durable: Core components are made of high-strength alloy, resistant to wear and corrosion, effectively reducing equipment loss and long-term use costs. From parameters like size and weight, the equipment has a reasonable structure, being both portable and durable.
2. Multiple Application Scenarios of Hydraulic Wall Saw
- Building Renovation Projects: Precisely cut walls during old building demolition and space structure adjustment, ensuring construction safety without affecting surrounding structures. Different models’ cutting depths and power adapt to various renovation needs.
- Bridge/Tunnel Construction: Used for partial repair or demolition of concrete structures, meeting special project requirements with high-precision cutting. Its stable hydraulic system and accurate cutting performance support complex operations.
- Municipal Construction Projects: Quickly handle obstacle walls in road widening and subway construction to speed up project progress. Different models can be flexibly chosen based on construction scale for efficient project promotion.

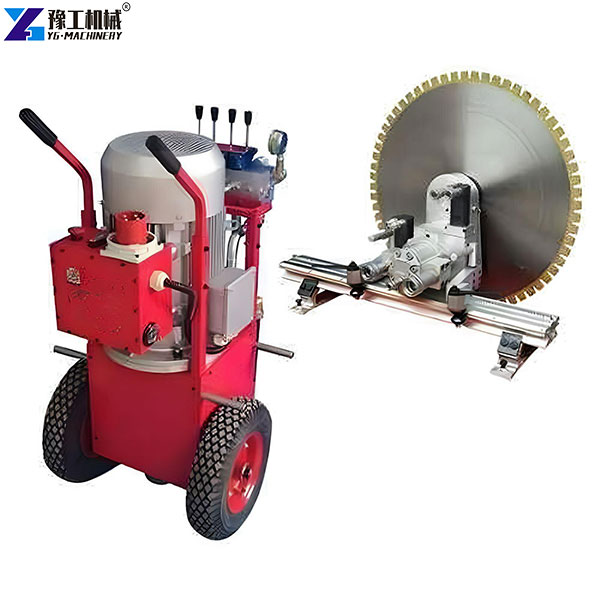

Concrete Wall Saw Cutting Machine in YG
The hydraulic wall saw provided by YG Machinery undergoes strict quality inspection. From material selection to product testing, each step follows international standards. Whether in terms of the performance stability of wall saw machines or the cutting precision of concrete wall saw cutting machines, it can safeguard your projects. As seen from the parameters, different models are optimized for various needs, meeting your personalized construction requirements. If you’re looking for reliable equipment, choosing YG means choosing efficiency, safety, and peace of mind! Contact us now to get exclusive purchase plans and preferential quotes! Additionally, you can find high-frequency wall saws, electric wall saws, crawler wire saw machines, stone wire saws, hydraulic breaker machines, excavator pile drivers and other high-quality products at YG.
