In Italy, commercial and public buildings built between the 1960s and 1980s are undergoing a wave of facade renovation. Old curtain walls need full replacement with energy-saving glass systems. Panels keep getting larger, while construction spaces in old towns become more limited. Traditional handling methods face huge challenges under narrow streets and tight building spacing.
A facade renovation contractor based in Italy’s Veneto Region encountered this problem. During each old curtain wall removal and replacement, moving and positioning insulated glass units over 500 kg was the most troublesome task. Streets are narrow, buildings stand close to each other, and large cranes cannot access the site. Traditional suction lifters have low efficiency and require multiple workers to operate.

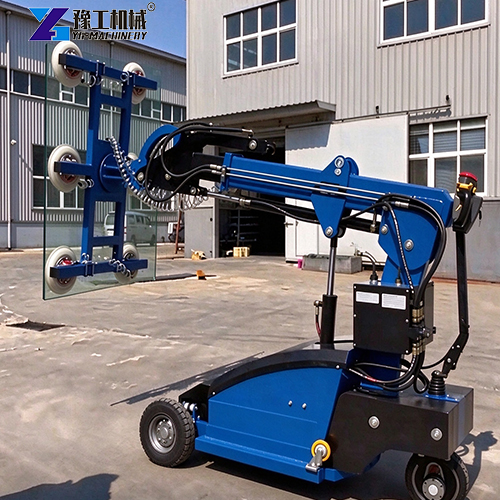

Finally, they found a solution: YG-LD-600 glass panel lifting equipment. It features an 810 mm narrow chassis, 600 kg load capacity, 6 suction cups, 360° rotation plus 180° tilting — perfectly matching material handling demands for facade renovation projects in complex environments.
This article follows this customer’s real project and fully records the whole process from model selection to delivery. If you are looking for a glazing robot solution for European facade renovation projects, this case is worth referencing.
1. The suction cup frame flips 180° electrically. 2. The support plate automatically retracts. 3. Hydraulic arm lifts electrically. 4. The base of the whole machine moves 100-150mm horizontally.
Manual (2kinds)
1. The suction cup holder can be manually rotated 90 degrees (electrically powered optional). 2. The suction cup holder can be manually rotated 360 degrees (electrically powered optional).
Usages
Mainly used for the handling, movement, and installation of materials such as glass, marble, wood, iron plate, etc.
Why Did This Italian Glazing Firm Look for New Glass Vacuum Lifting Equipment?
Customer Profile:
Professional contractor for building facade renovation in Italy’s Veneto Region
Core business: full curtain wall replacement, energy-saving retrofit and facade upgrade for old buildings
Team size: around 25 staff, completing over 20 renovation projects per year
Clients: commercial buildings and public facilities in Venice, Padua, Verona, and other cities
Problems Encountered:
Alternating demolition and installation: Renovation requires removing old panels before fitting new ones. Demolition waste occupies site space, leaving limited room for handling equipment.
Restricted street and building gaps: Most Veneto old-town projects have narrow streets and closely spaced buildings. Large cranes cannot enter or unfold on site.
Upgraded glass specifications: New curtain walls after energy retrofit adopt triple-glazed insulated units. Single panel weight rises by 30–50% compared with old glass panels.
Tight schedule & limited road occupation time: Municipal permits for road works have strict time limits. Handling efficiency directly decides whether projects can finish on time.
Strict finished-product protection requirements: Buildings under renovation often remain in use (offices and shops stay open). No damage to surrounding facilities is allowed.
Customer Selection Requirements:
Minimum load capacity of 500 kg to handle large triple-glazed insulated panels for energy retrofits
Fully electric drive — construction inside occupied buildings, no noise or emission disturbance
360° rotation and 180° tilting for the suction cup frame, to meet installation needs at different angles
Chassis width no more than 900 mm, to pass narrow streets and gaps between buildings
Pressure hold function during power failure — prevent glass from falling in case of unexpected power loss
YG Glazing Robot: The Right Glass Panel Lifting Equipment For Their Job
Key Features Winning Recognition From The Italian Customer Electric Vacuum Suction System:
Independent control and separate vacuum valve for each suction cup
Remaining cups keep supporting the load if one cup loses pressure
Ø300 mm rubber suction cups deliver strong adhesion on smooth glass surfaces
Suitable for smooth surfaces including glass, ceramic and stone
Power-failure Safety System:
Maintenance-free batteries maintain vacuum pressure during unexpected power cuts
Audible and visual alarms alert operators immediately
Pressure holding time is long enough to safely lower the load
This directly satisfies the customer’s top safety requirement
360° Rotation + 180° Side Tilt:
Electric 180° flip of suction cup frame converts panels from horizontal to vertical
360° rotation precisely adjusts panel orientation for installation
On renovation sites, new panels need 90° flipping from flat state before fitting into frames after old curtain wall removal. This function greatly cuts manual work for panel flipping.
Compact Chassis:
Chassis width is only 810 mm
Can pass narrow streets and gaps between buildings
Moves flexibly in complex old-town environments in Veneto
Electric Lifting & Travel:
Fully electric operation; a single operator can complete handling and installation
Zero noise and zero emissions for indoor work
Meets environmental rules for construction in occupied buildings
Model Selection Process:
The customer initially considered two options:
Option
Model
Reason
Option A
YG-LD-500
500 kg load capacity fits most panels, evenly distributed 6 suction cups
Option B
YG-LD-600
600 kg load capacity provides larger safety margin, ideal for heavy triple-glazed panels after energy retrofit
YG-LD-600 was selected in the end for these reasons:
Single triple-glazed double-cavity insulated units after energy retrofit weigh nearly 550 kg
6 suction cups create a larger adhesion area than 4 cups, offering higher safety for big panels
600 kg load capacity leaves a safety buffer, avoiding continuous full-load operation
3,700 mm lifting height covers most floor heights
The customer also ordered extension bars to fit extra-large renovation glass panels.
Field Performance of The Glazing Robot On Italian Construction Sites
Project 1: Full Curtain Wall Replacement for Commercial Building in Venice
Project Type: Old curtain wall removal and new energy-saving curtain wall installation for a 6-storey commercial building
Panel Type: Triple-glazed double-cavity insulated glass units
Single Panel Weight: 450–530 kg
Working Environment: Works along narrow streets; cranes cannot access
Performance of glass vacuum lifting equipment on this project:
Only one operator needed for the whole process from panel transport to positioning
Manual lifting work previously requiring 4 workers now only needs 2 people (1 operator + 1 worker guiding positioning)
180° flip of suction cup frame directly converts panels from horizontal to vertical; no extra flipping tools required
100–150 mm horizontal fine adjustment of base precisely guides panels into frames, reducing repeated adjustments
The equipment moves flexibly on narrow streets without disrupting the normal business of surrounding shops
Project 2: Facade Energy Retrofit for Government Office Building in Padua
Project Type: Energy-saving facade upgrade for public building
Panel Type: Low-E double-glazed insulated units
Single Panel Weight: 350–420 kg
Working Environment: Construction while the office building stays operational; low-noise, disturbance-free operation required
Fully electric drive with zero noise — office staff inside barely notice construction
Vacuum suction makes no contact damage; zero scratches on glass surfaces
Rubber wheels do not scratch marble floors when the machine moves inside the building entrance hall
Full curtain wall glass replacement finished in one shift; project completed 2 days ahead of original schedule
ROI & Client Review After Using YG Glass Panel Lifting Equipment
Return on Investment Analysis:
Labor cost savings: Glass installation teams reduced from 4 workers to groups of 2, cutting labor costs by around 50%
Lower breakage rate: After adopting glass vacuum lifting equipment, glass breakage rate dropped from roughly 3% to nearly zero
Faster construction: Average installation time for each panel shortened by 40–50%
Reduced road permit fees: Italian cities charge daily fees for road occupation. Higher handling efficiency cuts road occupation days and saves 20–30% on permit costs
Equipment payback period: Around 5–7 months to recover equipment investment considering labor savings, fewer breakages, shorter schedules, and lower road fees
Customer Feedback:
The suction stability of YG glass panel lifting equipment is satisfactory. No pressure loss or panel falling incidents occurred during the whole usage period.
The power-failure pressure hold function passed real-site tests. In one unexpected power outage, vacuum pressure lasted long enough for the operator to safely lower the load.
The 810 mm narrow chassis is its biggest advantage. Equipment from other brands cannot enter narrow streets in Veneto old towns.
Electric drive performs excellently in occupied buildings, totally quiet and emission-free without disturbing daily office work.
The 6-suction-cup setup provides sufficient safety redundancy when handling triple-glazed units.
Optional extension bars solve the suction coverage issue for extra-large renovation panels.
The customer has purchased a second YG-LD-500 for dedicated work with lighter panels.
Is YG Glass Vacuum Lifting Equipment Suitable For Your Project?
Recommended for these scenarios:
Handling and installing large glass panels weighing 200–800 kg
Limited working space with no access for large cranes (old towns, narrow streets, tight building gaps)
Construction inside occupied buildings requiring low-noise and zero-emission equipment
Projects including facade renovation, energy-saving retrofit and curtain wall replacement
Panels needing multi-angle tilting and precise positioning
High surface quality requirement for glass with no contact scratches allowed
Quick Model Selection Guide:
Your Scenario
Recommended Model
Double-glazed units for renovation, ≤500 kg
YG-LD-500
Triple-glazed units for energy retrofit, 500–600 kg
YG-LD-600
Extra-large panel renovation, 600–800 kg
YG-LD-800
Interior partition / small panels, ≤300 kg
YG-LD-300
Panel size exceeds standard suction cup frame
Add optional extension bars
Export Standard Process:
Communicate & confirm requirements → Model recommendation and quotation
Order confirmation → Production (around 7–15 days)
Quality inspection passed → Packing and shipment
1×20GP container can load 4–6 units (depends on model)
Operation guidance and remote technical support after goods arrive
